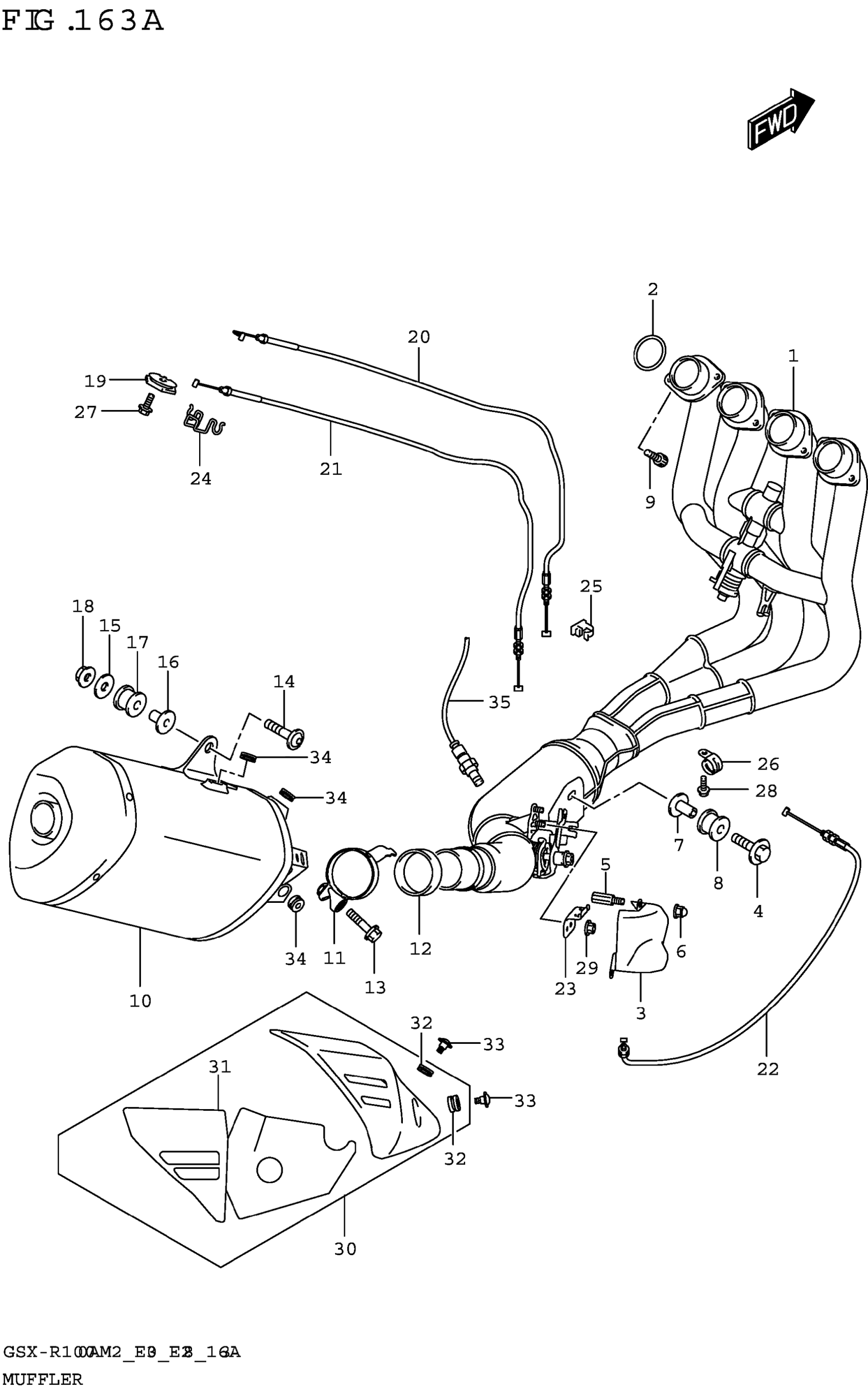

Find the part on the Muffler diagram for your 2022 Suzuki GSX-R1000AM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki GSX-R1000AM2 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST This part replaces 14100-17K01.

14100-17K02

1
Out of stock

2

.GASKET,EXHAUST PIPE

14181-04K00

4
Out of stock

3

COVER,EXH VALVE

14280-17K00

1
Out of stock

4

BOLT (8X45)

09118-08152-A05

1
Out of stock

5

BOLT

09119-06105

1
Out of stock

6

NUT (M6)

09159-06100

3
Out of stock

7

SPACER (8.6X12X24.2)

09180-08152

1
Out of stock

8

CUSHION (12X30X24)

09320-12077

1
Out of stock

9

BOLT

07130-0825A

8
Out of stock

10

BODY,MUFFLER

14310-17KE0-H01

1
Out of stock

11

CLAMP,MUF CONN

14459-17K10

1
Out of stock

12

CONNECTOR,MUFFLER

14771-24F01

1
Out of stock

13

BOLT (8X40)

09106-08162

1
Out of stock

14

BOLT (8X45)

09106-08195

1
Out of stock

15

WASHER (8.5X28X1.6)

09160-08157

1
Out of stock

16

SPACER (8.6X12X24.2)

09180-08152

1
Out of stock

17

CUSHION (12X30X24)

09320-12048

1
Out of stock

18

NUT

08361-2508B

1
Out of stock

19

PULLEY,CONTROLLER

11269-18G01

1

$32.50

In stock

20

CABLE,EXH VALVE NO.1

11276-17K00

1
Out of stock

21

CABLE,EXH VALVE NO.2

11277-17K00

1
Out of stock

22

CABLE,EXH VALVE NO.3 This part replaces 11278-17K00.

11278-17K02

1
Out of stock

23

BRACKET,EXHAUST VALVE CABLE

14250-21H00

1
Out of stock

24

GUIDE,EXHAUST VALVE CABLE

14252-14J00

1
Out of stock

25

CLAMP

09403-06414

1
Out of stock

26

CLAMP (L:45)

09404-06429

1
Out of stock

27

BOLT

01547-0516A

1
Out of stock

28

BOLT

01547-0612A

1
Out of stock

29

NUT (6X12)

08316-1006A

1
Out of stock

30

COVER,MUFFLER

14780-17K20

1
Out of stock

31

.SHIELD,MUF COVER HEAT

14784-17K00

1
Out of stock

32

CUSHION (8.4X18X6)

09320-08066

2
Out of stock

33

SCREW (6X12)

09139-06124

2
Out of stock

34

CUSHION (8.4X18X6)

09320-08066

3
Out of stock

35

SENSOR,OXYGEN

18213-17K00

1
Out of stock
