2022 Suzuki GSX-R1000AM2 Lock SET Diagram

← All diagrams

Find the part on the Lock SET diagram for your 2022 Suzuki GSX-R1000AM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

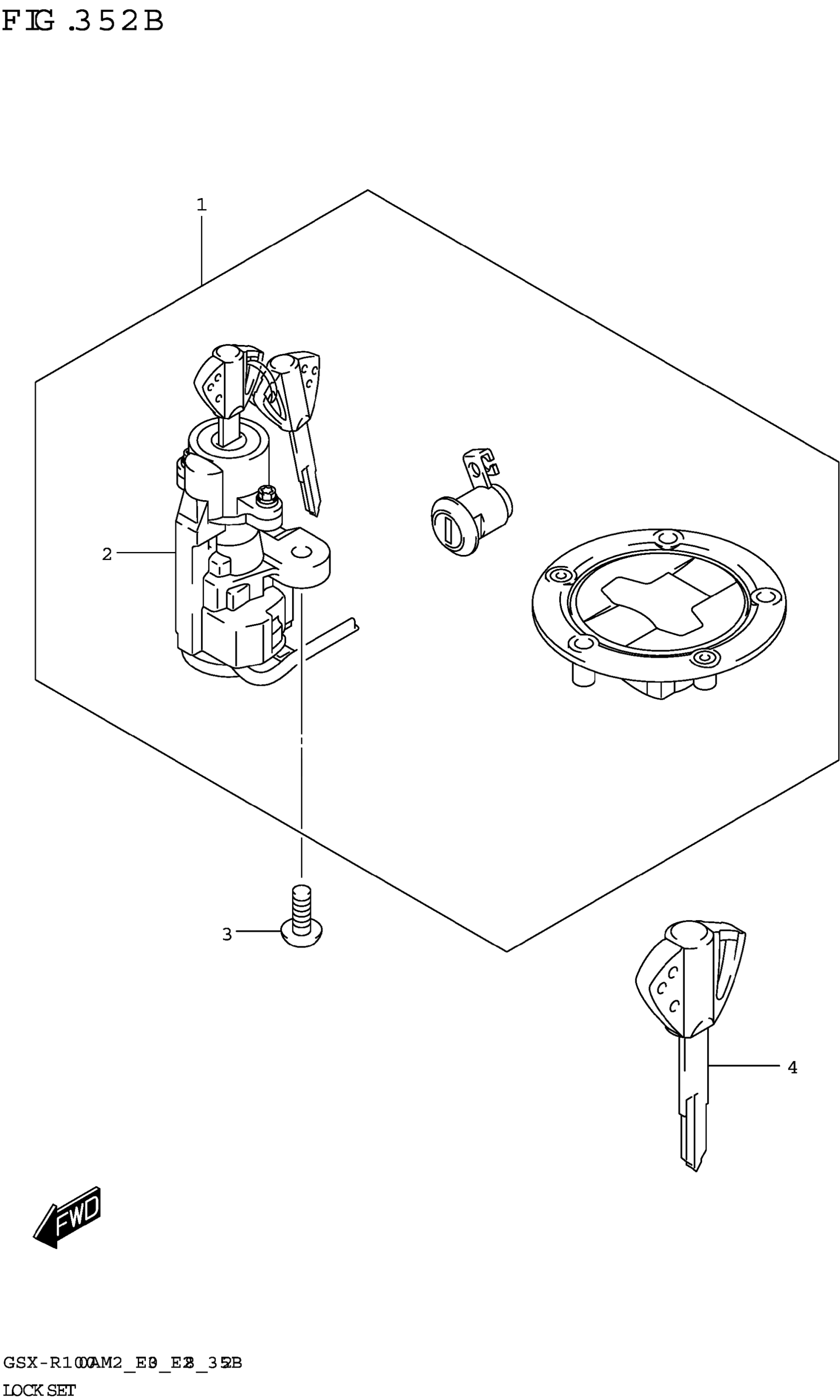

2022 Suzuki GSX-R1000AM2 Lock SET Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LOCK SET This part replaces 37101-17890.

37101-17891

1
Out of stock

2

.LOCK ASSY,STEERING This part replaces 37100-17KB0.

37100-17KB1

1
Out of stock

3

BOLT (8X20)

09139-08016

2
Out of stock

4

KEY,BLANK (IMMOBI) | OPT

37146-41G00

1
Out of stock
← Under Cowling Optional →
