2022 Suzuki GSX-R1000AM2 Handle Switch Diagram

← All diagrams

Find the part on the Handle Switch diagram for your 2022 Suzuki GSX-R1000AM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

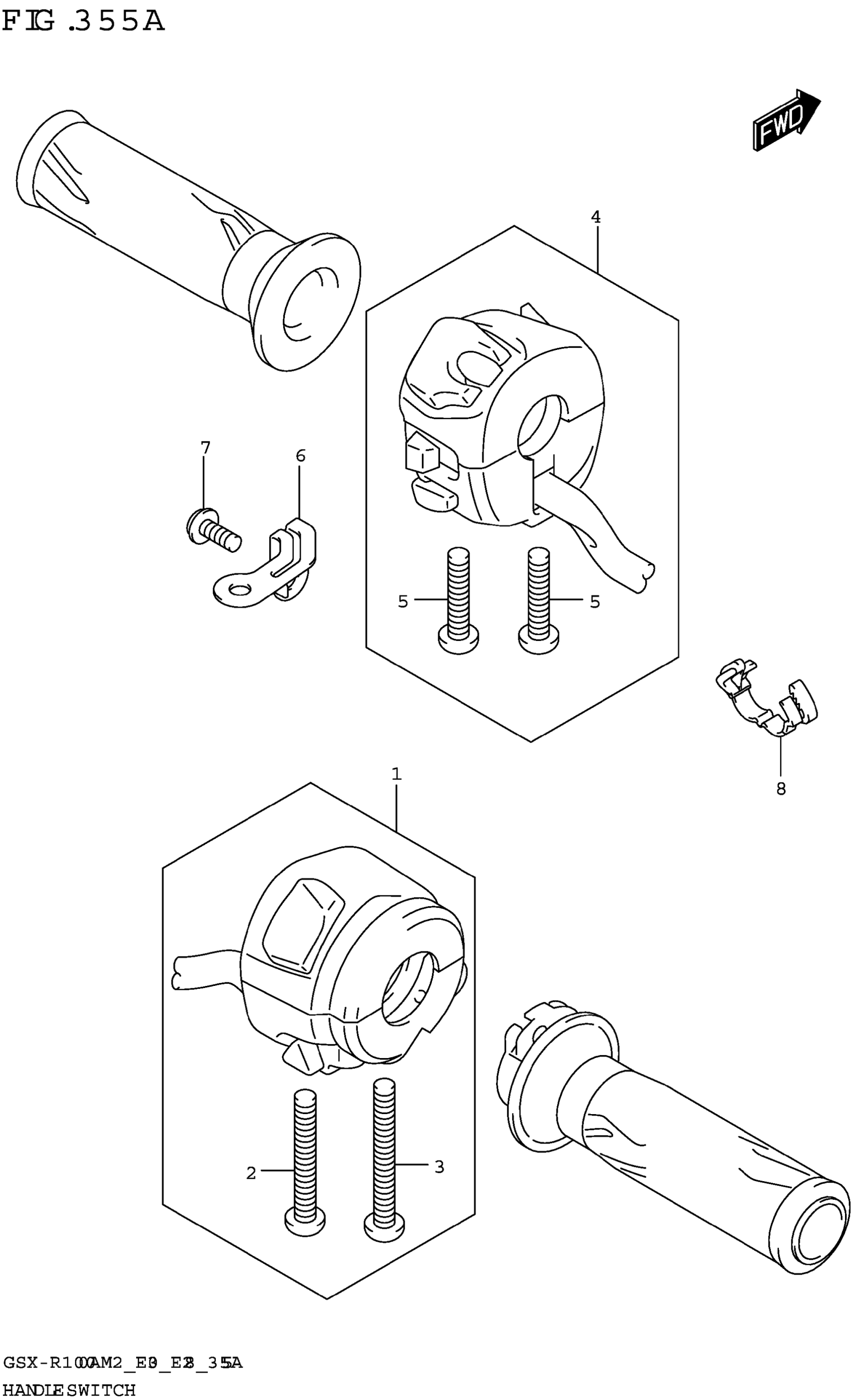

2022 Suzuki GSX-R1000AM2 Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWITCH ASSY,HANDLE,R

37200-17KA0

1

$220.55

In stock

2

.SCREW

02112-0535B

1
Out of stock

3

.SCREW

02112-0540B

1

$2.88

In stock

5

.SCREW

02112-0525B

2
Out of stock

6

BRACKET,LEAD WIRE

36617-17K00

1
Out of stock

7

SCREW (6X16)

09139-06214

1

$2.84

In stock

8

CLAMP

09408-00184

1
Out of stock
