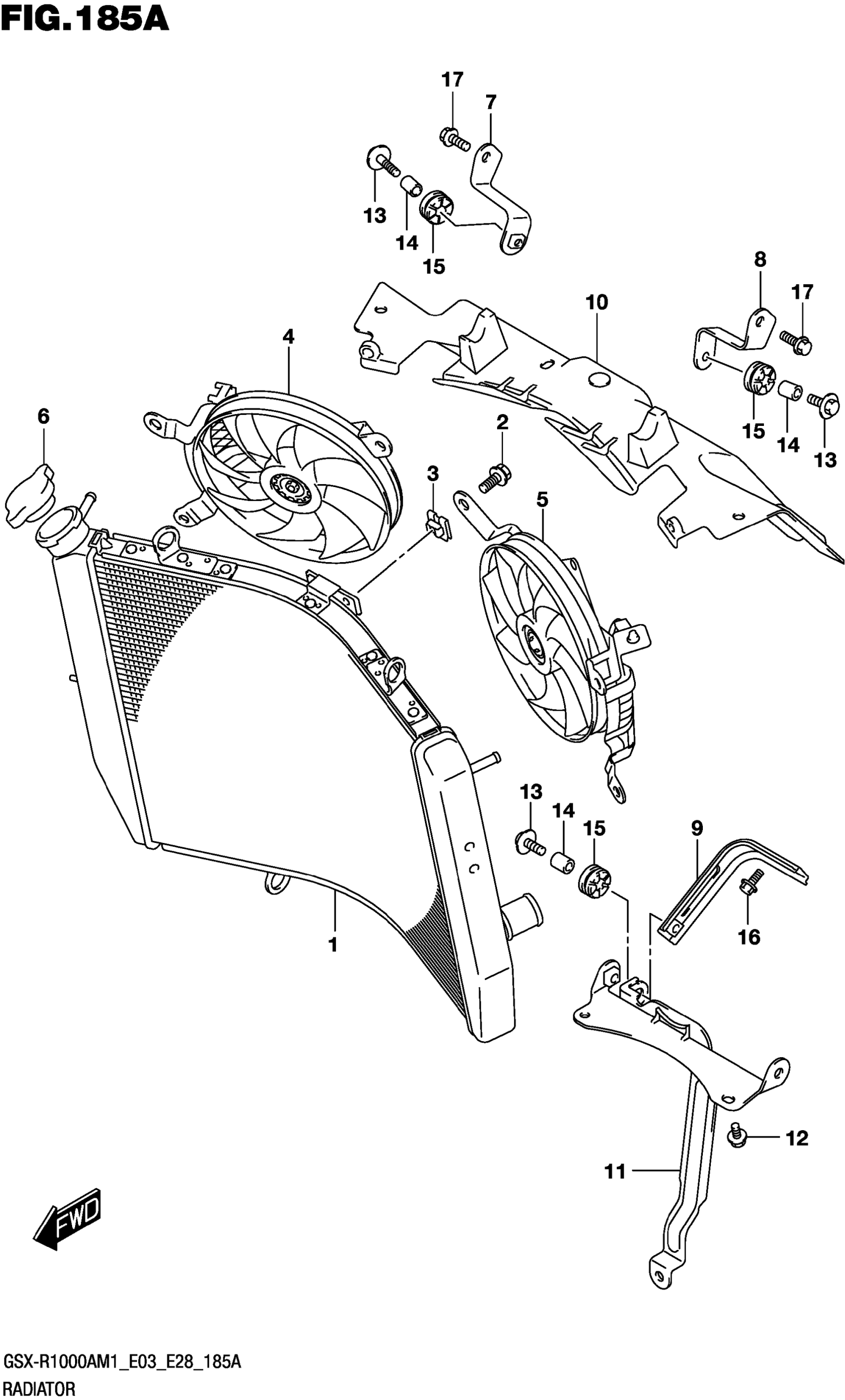

Suzuki GSX-R1000AM1 (2021) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY,WATER

17710-17K01

$912.27

2

BOLT, FAN ASSY

17711-08J00

$4.46

3

NUT, FAN ASSY

17712-40F00

$4.42

4

FAN ASSY,RADIATOR,R

17810-17K00

$320.27

5

FAN ASSY,RADIATOR,L

17820-17K00

$320.27

6

CAP,RADIATOR (1.1)

17730-08J00

$38.90

7

BRACKET,RADIATOR UPPER,R

17741-17K00

$10.17

8

BRACKET,RADIATOR UPPER,L

17742-17K00

$14.33

9

BRACKET,RADIATOR LOWER,R

17750-17K00

$20.32

10

SHIELD,RADIATOR HEAT

17771-17K00

$49.77

11

BRACKET,RDTR SUPPORT

17790-17K00

$36.18

12

BOLT (6X10)

09103-06307

$3.57

13

BOLT (6X25)

09118-06097

$2.50

14

SPACER (6.5X10X12)

09180-06290

$2.01

15

CUSHION

09320-10051

$2.81

16

BOLT

01550-0612A

$1.97

17

BOLT

01550-0616A

$1.97
