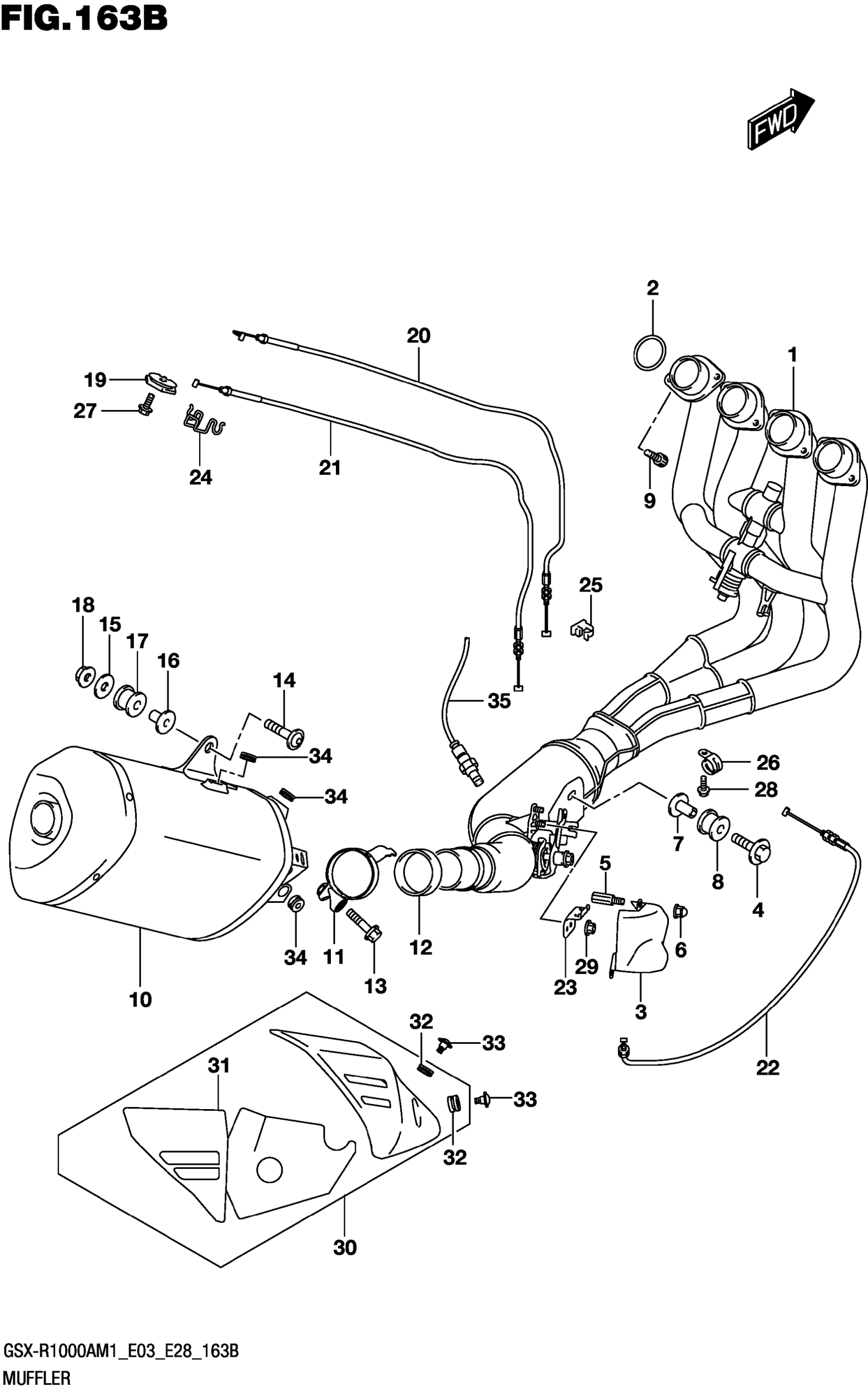

Suzuki GSX-R1000AM1 (2021) MUFFLER Diagram

#

Description
Price

1

EXHAUST This part replaces 14100-17K01.

14100-17K02

$1,566.80

2

.GASKET,EXHAUST PIPE

14181-04K00

$7.59

3

COVER,EXH VALVE

14280-17K00

$36.50

4

BOLT (8X45)

09118-08152-A05

$4.73

5

BOLT

09119-06105

$6.52

6

NUT (M6)

09159-06100

$2.80

7

SPACER (8.6X12X24.2)

09180-08152

$5.26

8

CUSHION (12X30X24)

09320-12077

$10.78

9

BOLT

07130-0825A

$2.80

10

BODY,MUFFLER | VER)

14310-17KE0-H01

$2,486.60

11

CLAMP,MUF CONN

14459-17K10

$31.75

12

CONNECTOR,MUFFLER

14771-24F01

$34.07

13

BOLT (8X40)

09106-08162

$5.17

14

BOLT (8X45)

09106-08195

$6.72

15

WASHER (8.5X28X1.6)

09160-08157

$3.30

16

SPACER (8.6X12X24.2)

09180-08152

$5.26

17

CUSHION (12X30X24)

09320-12048

$4.62

18

NUT

08361-2508B

$2.70

19

PULLEY,CONTROLLER

11269-18G01

$32.50

20

CABLE,EXH VALVE NO.1

11276-17K00

$54.43

21

CABLE,EXH VALVE NO.2

11277-17K00

$63.93

22

CABLE,EXH VALVE NO.3 This part replaces 11278-17K00.

11278-17K02

$40.42

23

BRACKET,EXHAUST VALVE CABLE

14250-21H00

$11.18

24

GUIDE,EXHAUST VALVE CABLE

14252-14J00

$8.32

25

CLAMP

09403-06414

$3.62

26

CLAMP (L:45)

09404-06429

$1.82

27

BOLT

01547-0516A

$1.68

28

BOLT

01547-0612A

$2.01

29

NUT (6X12)

08316-1006A

$2.19

30

COVER,MUFFLER

14780-17K20

$288.52

31

.SHIELD,MUF COVER HEAT

14784-17K00

$12.43

32

CUSHION (8.4X18X6)

09320-08066

$7.44

33

SCREW (6X12)

09139-06124

$4.92

34

CUSHION (8.4X18X6)

09320-08066

$7.44

35

SENSOR,OXYGEN

18213-17K00

$331.32
