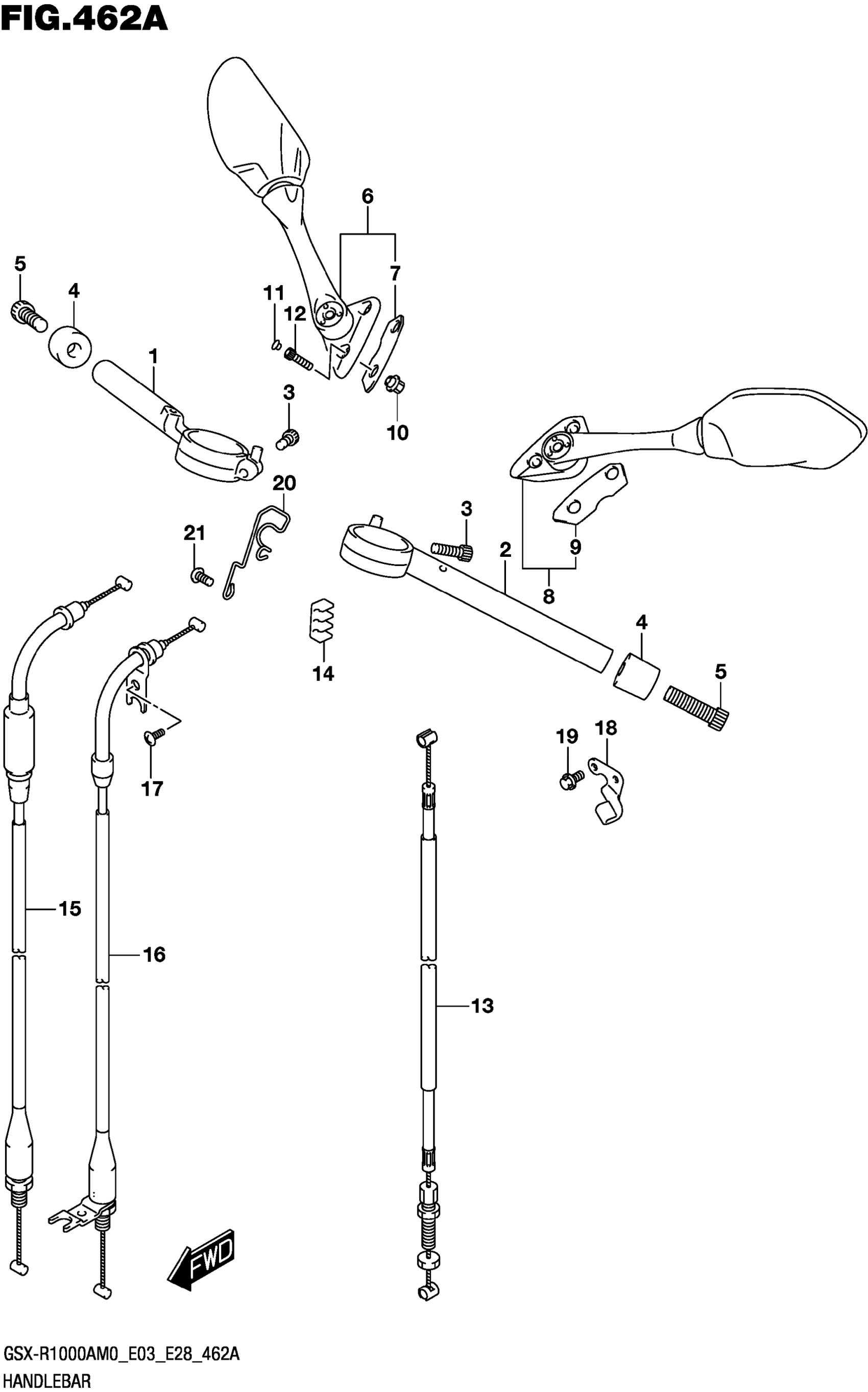

Suzuki GSX-R1000AM0 (2020) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR,R

56111-17K01

$91.08

2

HANDLEBAR,L

56151-17K01

$122.77

3

BOLT (8X32)

09106-08185

$2.75

4

BALANCER,HANDLEBAR

56278-17K00

$24.63

5

BOLT,HANDLE BALANCER

56277-17K00

$3.60

6

MIRROR ASSY,REAR VIEW,R

56500-17K00

$155.05

7

.CUSHION,MIRROR

56525-17K00

$7.82

8

MIRROR ASSY,REAR VIEW,L

56600-17K00

$148.58

9

.CUSHION,MIRROR

56525-17K00

$7.82

10

NUT,RR VIEW MIRROR

56619-41G01

$8.52

11

CAP (OD:10)

09250-05009

$2.10

12

BOLT

07130-0620B

$2.80

13

CABLE ASSY,CLUTCH

58200-17K01

$37.48

14

CLAMP

58285-17K00

$4.12

15

CABLE ASSY,THROTTLE NO.1

58300-17K01

$65.00

16

CABLE ASSY,THROTTLE NO.2

58300-17K11

$68.72

17

SCREW (5X10)

09125-05042

$1.98

18

STOPPER,CLUTCH CABLE

58635-17K00

$12.30

19

BOLT

01550-0616A

$1.97

20

GUIDE,CABLE

58621-17K01

Unavailable

21

SCREW (6X16)

09139-06214

$2.62
