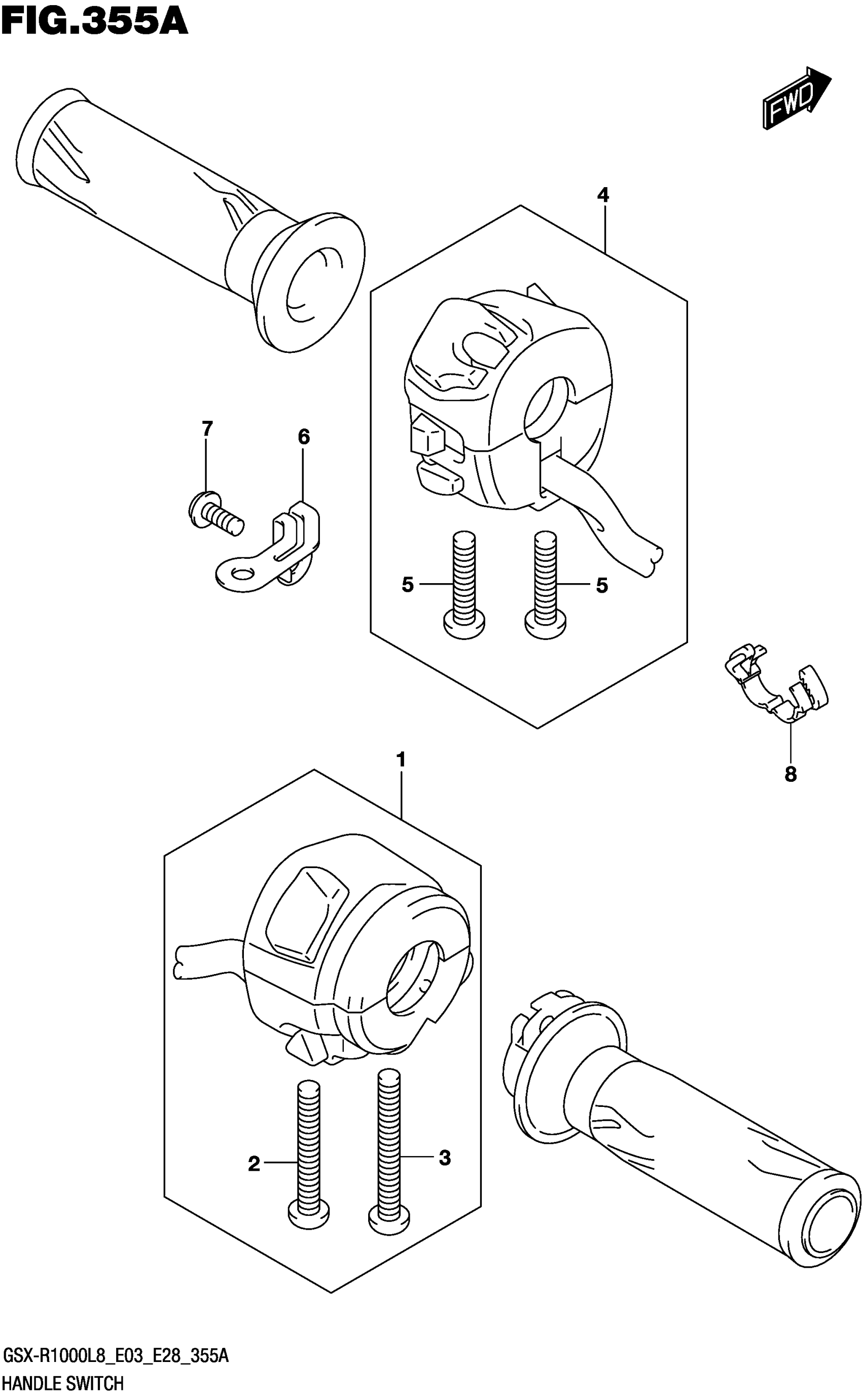

Suzuki GSX-R1000AL8 (2018) HANDLE SWITCH Diagram

#

Description

Price

1

SWITCH ASSY,HAN This part replaces 37200-17K01.

37200-17K02

$212.47

2

.SCREW

02112-0535B

$1.95

3

.SCREW

02112-0540B

$2.88

4

SWITCH ASSY,HANDLE LH This part replaces 37400-17K00.

37400-17K02

$143.97

5

.SCREW

02112-0525B

$1.86

6

BRACKET,LEAD WIRE

36617-17K00

Unavailable

7

SCREW (6X16)

09139-06214

$2.62

8

CLAMP

09408-00184

$2.80
