2018 Suzuki GSX-R1000AL8 Frame Diagram

← All diagrams

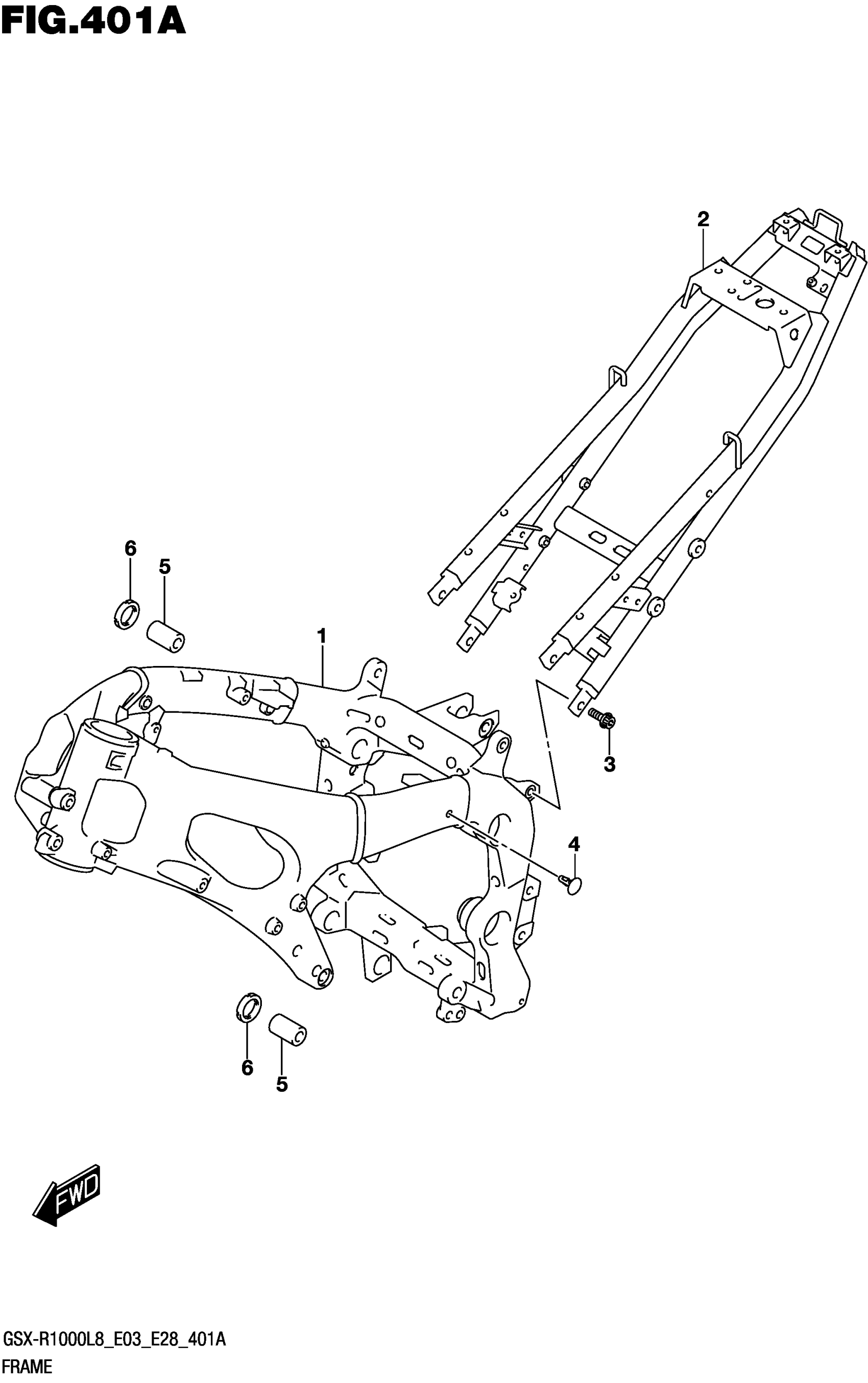

Find the part on the Frame diagram for your 2018 Suzuki GSX-R1000AL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki GSX-R1000AL8 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME This part replaces 41100-17K00.

41100-17K10

1
Out of stock

2

RAIL,SEAT This part replaces 41200-17K00.

41200-17K10

1
Out of stock

3

BOLT,SEAT RAIL

41233-18G20

4
Out of stock

4

CLIP (BLACK)

09409-05308-5PK

4
Out of stock

5

BOLT, ADJUST

41921-47H00

2
Out of stock

6

NUT,CRANK CASE ADJUST BOLT

41922-47H00

2
Out of stock
