2017 Suzuki GSX-R1000AL7 Handle Switch Diagram

← All diagrams

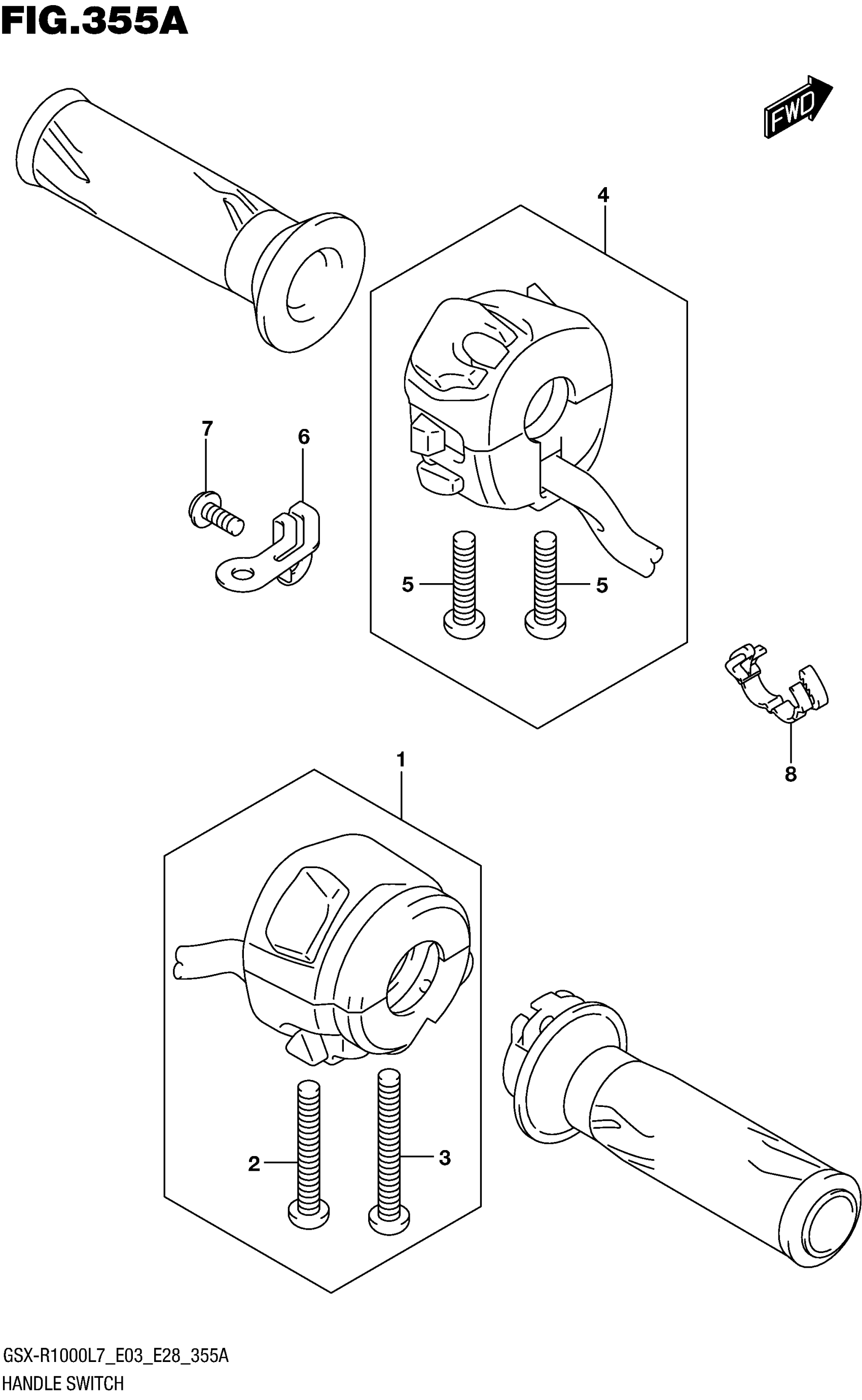

Find the part on the Handle Switch diagram for your 2017 Suzuki GSX-R1000AL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki GSX-R1000AL7 Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWITCH ASSY,HAN This part replaces 37200-17K00.

37200-17K02

1
Out of stock

2

.SCREW

02112-0535B

1
Out of stock

3

.SCREW

02112-0540B

1
Out of stock

4

SWITCH ASSY,HANDLE LH This part replaces 37400-17K00.

37400-17K02

1
Out of stock

5

.SCREW

02112-0525B

2
Out of stock

6

BRACKET,LEAD WIRE

36617-17K00

1
Out of stock

7

SCREW (6X16)

09139-06109

1
Out of stock

8

CLAMP

09408-00184

1
Out of stock
