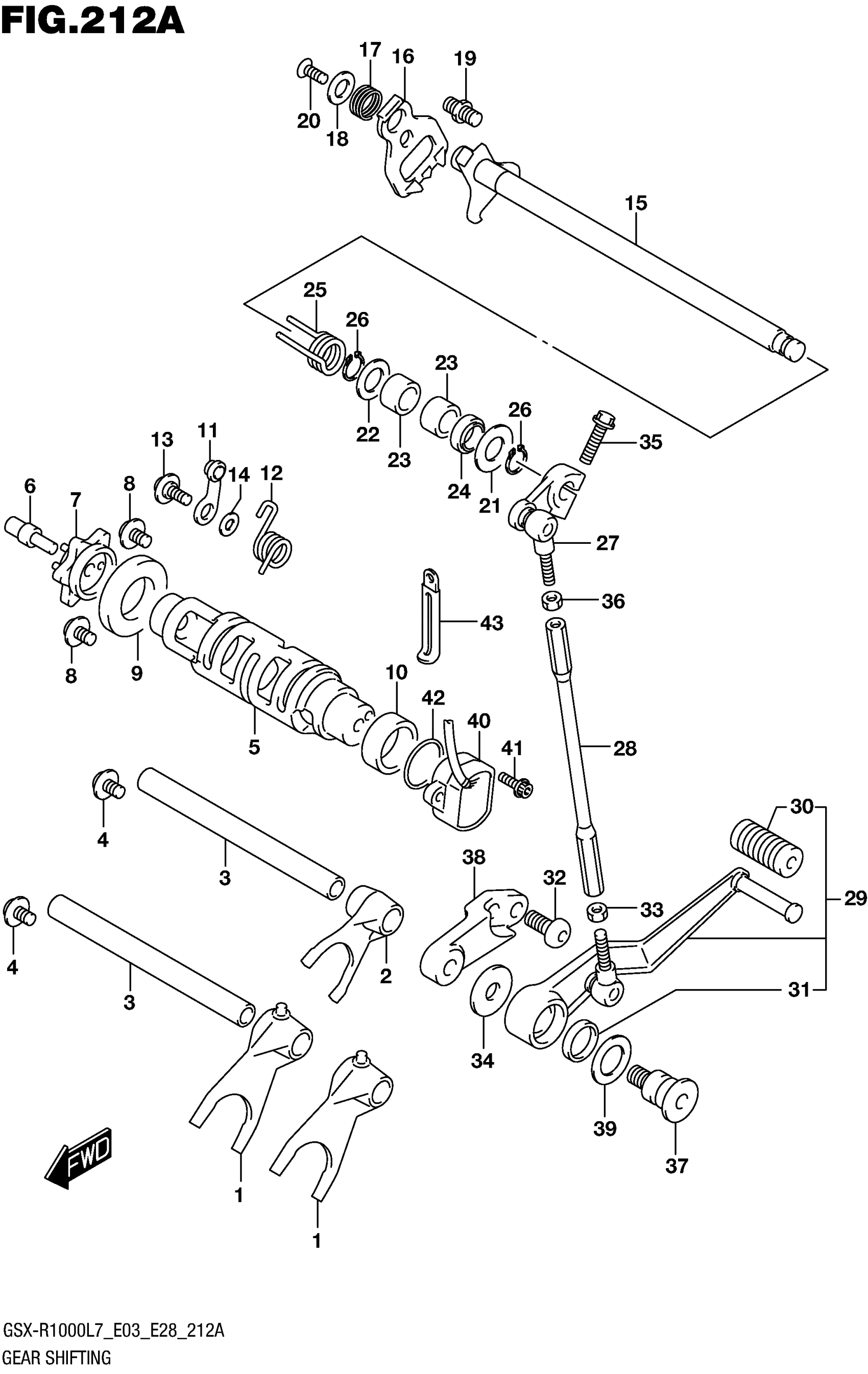

Suzuki GSX-R1000AL7 (2017) GEAR SHIFTING Diagram

FORK,GEAR SHIFT NO.1 This part replaces 25211-01H10.

25211-01H11

$87.97

FORK,GEAR SHIFT NO.3

25231-01H02

$86.33

SHAFT, GEAR SHIFT FORK

25411-38B01

$32.65

SCREW (6X12)

09136-06147

$3.48

CAM,GEAR SHIFT

25310-17K00

$217.75

BOLT,GEAR SHIFT CAM PLATE

25312-17K00

$26.05

PLATE,GEAR SHIFT CAM

25381-17K00

$49.37

SCREW (6X12)

09136-06147

$3.48

BEARING (25X47X8)

09262-25006

$23.05

BEARING (25X32X12)

09263-25018

$19.30

STOPPER,SHIFT CAM This part replaces 25350-06G00.

25350-06G10

$20.35

SPRING,GEAR SHIFT CAM STOPPER

25355-17K00

$4.43

BOLT (6X14.3)

09111-06041

$2.63

WASHER

08211-06141

$1.61

SHAFT,GEAR SHIFT

25510-17K00

Unavailable

PLATE,GEAR SHIFT CAM DRIVE

25512-06G20

$22.32

SPRING, GEAR SHIFT PLATE

25518-01H00

Unavailable

WASHER, GEAR SHIFT SHAF END

25519-01H00

$6.75

STOPPER, GEAR SHIFT ARM

25671-01011

$4.09

SCREW (6X16)

09126-06014

$2.07

WASHER (14X29X0.8)

09160-14016

$1.91

SHIM (14X24X1)

09181-14195

$3.30

BEARING (14X20X12)

09263-14027

$12.21

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.04

SPRING

09444-20001

$4.80

CIRCLIP

08331-3114A

$1.89

ARM,GEAR SHIFT LINK This part replaces 25520-17K00.

25520-17K10

$75.87

ROD, GEAR SHIFT LINK

25525-17K00

$37.13

LEVER ASSY,GEAR SHIFT

25600-17K00

$133.77

.RUBBER, GEAR SHIFT PEDAL

25652-20C00

$4.98

.SEAL (18X24X3.5)

09284-18005

$7.03

BOLT (8X20)

09106-08167

$3.15

NUT

09140-06025

$1.84

WASHER (10X30X2.5)

09160-10144

$5.75

BOLT

07120-0625A

$2.50

NUT

09140-06020

$1.67

SHAFT,GEAR SHIFT LEVER

25617-17K00

Unavailable

BRACKET,GEAR SHIFT LEVER

25681-17K00

$75.38

WASHER,GEAR SHIFT LEVER LH

25619-17K00

$5.13

SENSOR ASSY,GEAR POSITION

37730-17K00

$142.62

BOLT (5X16)

09106-05023

$2.80

O RING (D:2.4,ID:26.2)

09280-26005

$2.31

CLAMP (L:45)

09404-06429

$1.82
