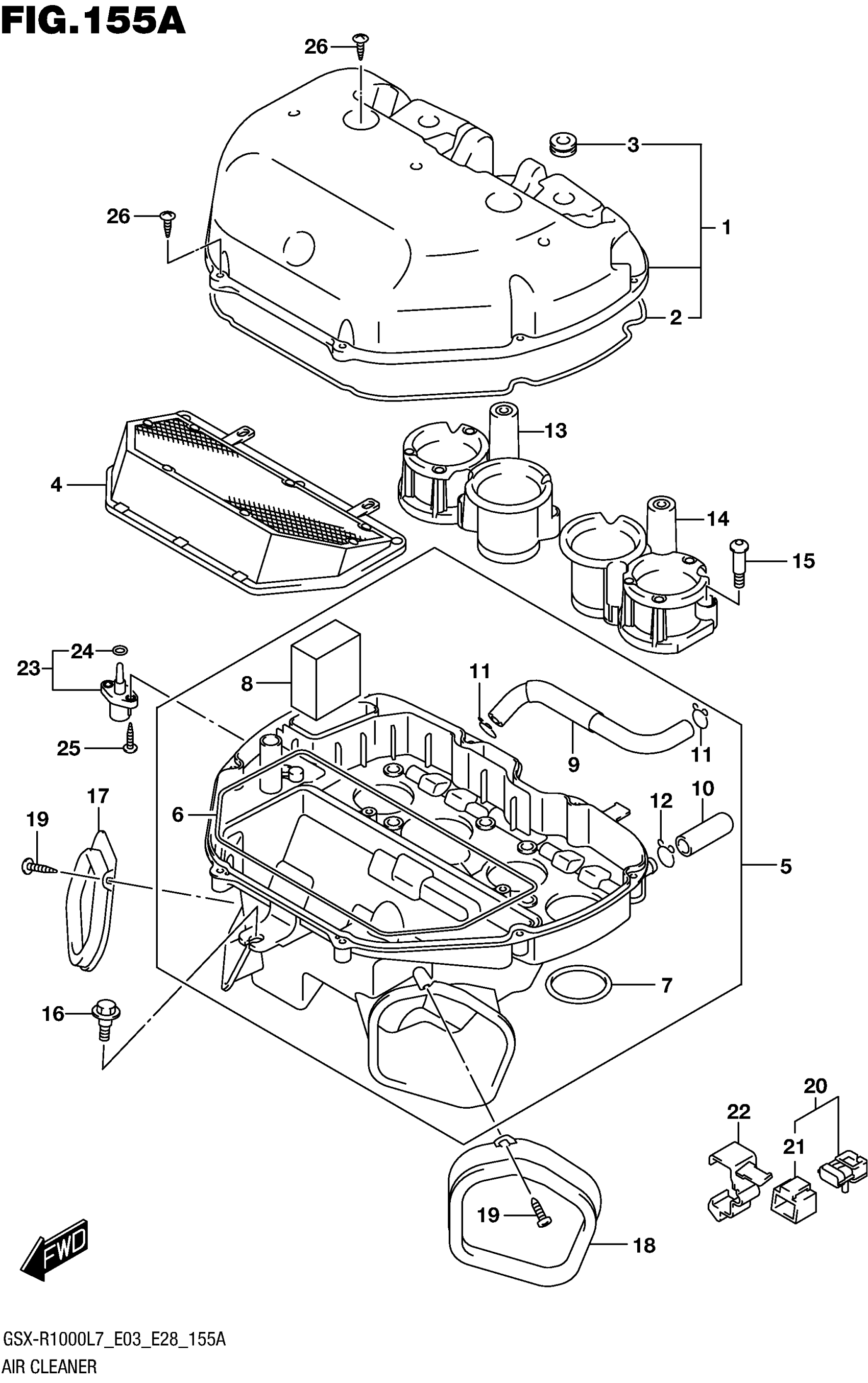

Suzuki GSX-R1000AL7 (2017) AIR CLEANER Diagram

#

Description
Price

1

CAP,AIR CLEANER This part replaces 13740-17K00.

13740-17K01

$96.37

2

.GASKET, CAP

13746-35F00

$8.58

3

.INSULATOR,INJECTOR

15911-17K00

$10.57

4

FILTER ASSY

13780-17K00

$33.73

5

CASE,AIR CLEANER This part replaces 13720-17K00.

13720-17K01

$180.15

6

.GASKET CASE A

13756-17K00

$5.23

7

.GASKET CASE B

13757-17K00

$3.62

8

.FILTER,BREATHER

13788-17K00

$7.98

9

.TUBE,BREATHER This part replaces 13853-17K00.

13853-17K01

$24.02

10

.PLUG,DRAIN This part replaces 13878-09F00.

13878-09F01

$5.17

11

.CLIP

09401-14101

$2.37

12

.CLIP

09401-14101

$2.37

13

FUNNEL OUTLET,R

13880-17K00

$61.35

14

FUNNEL OUTLET,L

13880-17K10

$61.35

15

BOLT

13831-47H00

$7.73

16

BOLT (6X16)

09111-06089

$2.61

17

PLATE,CLNR DUCT,R

13820-17K00

$36.08

18

PLATE,CLNR DUCT,L

13820-17K10

$36.08

19

SCREW

03511-0412A

$0.49

20

SENSOR,BOOST

15630-29G40

$342.38

21

.COVER

15625-29G40

Unavailable

22

HOLDER,BOOST SENSOR

15632-17K00

Unavailable

23

SENSOR, AIR TEMPERATURE

13650-14G10

$47.66

24

.O RING

13655-14G10

$11.18

25

SCREW

03511-0516A

$1.88

26

SCREW

03541-0525A

$1.80
