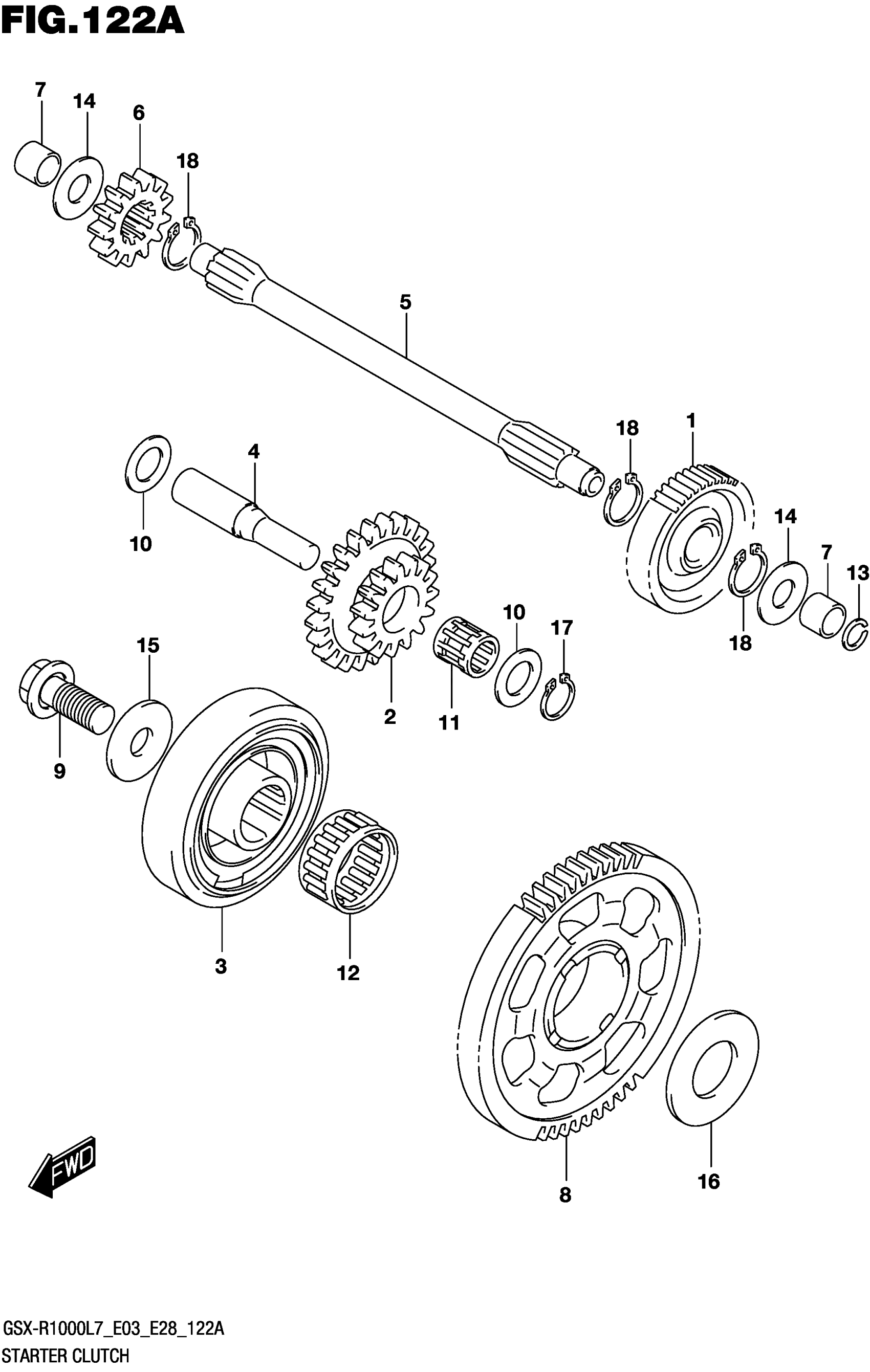

Suzuki GSX-R1000AL (2017) STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, STARTER IDLE NO.1

12611-17K00

$77.92

1

(NT:45)

12611-17K00

$77.92

2

GEAR, STARTER IDLE NO.2

12612-47H00

$115.30

2

(NT:15/24)

12612-47H00

$115.30

3

CLUTCH,STARTER ONE WAY

12614-17K00

$302.38

4

PIN,STARTER IDLE GEAR NO.2

12615-17K00

$24.87

5

SHAFT,STARTER IDLE GEAR NO.1

12616-17K00

$98.05

6

GEAR, LIMITER DRIVEN (NT:13)

12617-47H00

$58.48

7

BUSH

12618-31G00

$3.69

8

GEAR,STARTER CLUTCH (NT:49)

12622-17K00

$143.20

9

BOLT (10X23)

09103-10189

$3.70

10

SHIM (12X20X1)

09181-12167

$2.24

11

BEARING (12X16X16)

09263-12023

$9.20

12

BEARING (26X31X16)

09263-26035

$77.93

13

CIRCLIP

09380-09003

$1.82

14

WASHER

08211-10221

$1.97

15

WASHER

08211-10285

$3.19

16

WASHER

08211-20403

$3.95

17

CIRCLIP

08331-3112A

$1.77

18

CIRCLIP

08331-3115A

$1.97
