Description

Price

1

WASHER,PRI DRIVEN GEAR THR

21222-17K00

$22.65

2

GEAR ASSY, PRIMARY DRIVEN

21200-17880

$439.03

3

SPACER, OIL PUMP DRIVE

21253-01H10

$46.80

3

SPROCKET

21253-01H10

$46.80

4

BEARING (35X40X26.8)

09263-35015

$30.38

5

BEARING (35X40X12)

09263-35045

$25.43

6

HUB,CLUTCH SLEEVE

21411-17K00

$181.73

7

SPRING,CLUTCH

21413-17K00

$5.79

8

SEAT,CLUTCH SPRING

21415-17K00

$13.73

9

PLATE,STOPPER

21414-17K00

$17.87

10

PLATE, CLUTCH DRIVE NO.1 | T:3.3

21441-42F20

$26.42

11

PLATE, CLUTCH DRIVE NO.2 | T:3.3

21442-42F10

$37.43

12

PLATE, CLUTCH DRIVEN NO.2 | T:2.3

21451-47H10

$18.18

13

PLATE, CLUTCH DRIVEN NO.1 | T:2.3

21451-47H30

$19.72

14

PLATE, CLUTCH DRIVEN NO.4 | T:2.6

21451-47H50

$12.02

15

DISC,CLUTCH PRESSURE

21462-17K00

$106.00

16

SEAT,WAVE WASHER

21471-02F20

$19.60

17

WASHER,CLUTCH PLATE WAVE

21472-02F20

$28.17

18

BOLT,CLUTCH SPRING

21482-17K00

$4.00

19

.WASHER (25X50X2.5)

09160-25056

$10.63

20

NUT

09159-24010

$11.92

21

WASHER

09164-24008

$5.00

22

SHIM (25X38X1)

09181-25223

$2.90

23

ROD, CLUTCH

23110-27A00

$19.86

24

ROD, CLUTCH PUSH, LH

23111-26D00

$14.54

25

PIECE,CLUTCH PUSH

23121-41G30

$64.45

26

CAMSHAFT,CLUTCH RELEASE

23122-41G00

$64.22

27

CAP, CLUTCH PUSH ROD

23123-41G00

$10.01

28

SPRING, CLUTCH RELEASE RETURN

23125-41G00

$2.97

29

ARM,CLUTCH RELEASE

23271-41G50

$60.90

30

BOLT (6X20)

09103-06223

$2.49

31

SCREW (6X73)

09134-06015

$6.21

32

WASHER (10.5X24X1)

09160-10020

$1.86

33

WASHER (15.5X28X1)

09160-15045

$3.52

34

BEARING (10X14X10)

09263-10014

$12.21

35

BEARING (12X18X12)

09263-12027

$6.59

36

BEARING (15X28X2)

09263-15003

$7.49

37

OIL SEAL (10X20X6)

09282-10012

$7.20

38

SEAL,OIL

09283-06013

$11.88

39

OIL SEAL (10X17X5)

09285-10004

$3.04

40

NUT

08310-0006A

$1.83

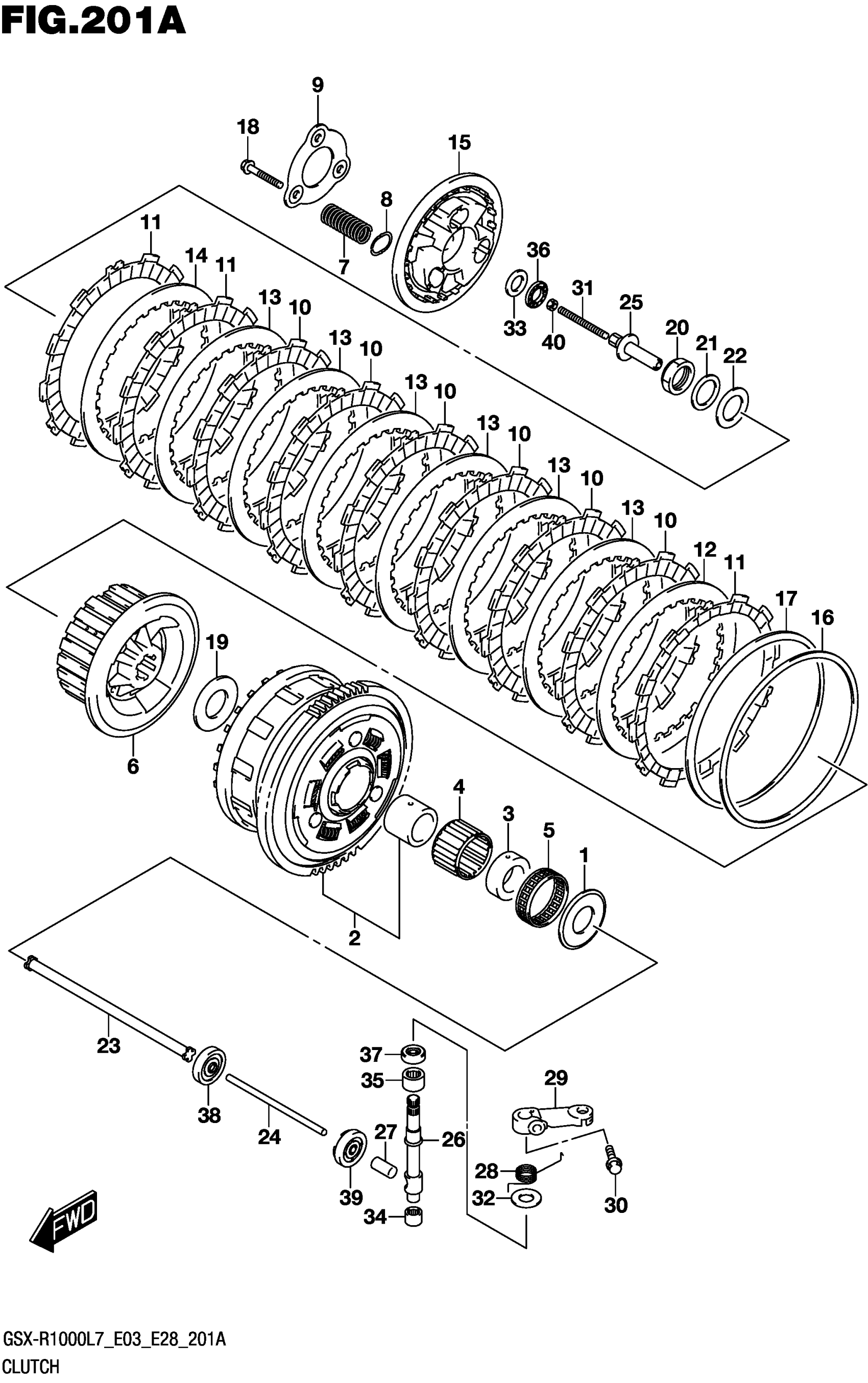

Suzuki GSX-R1000AL (2017) CLUTCH Diagram
