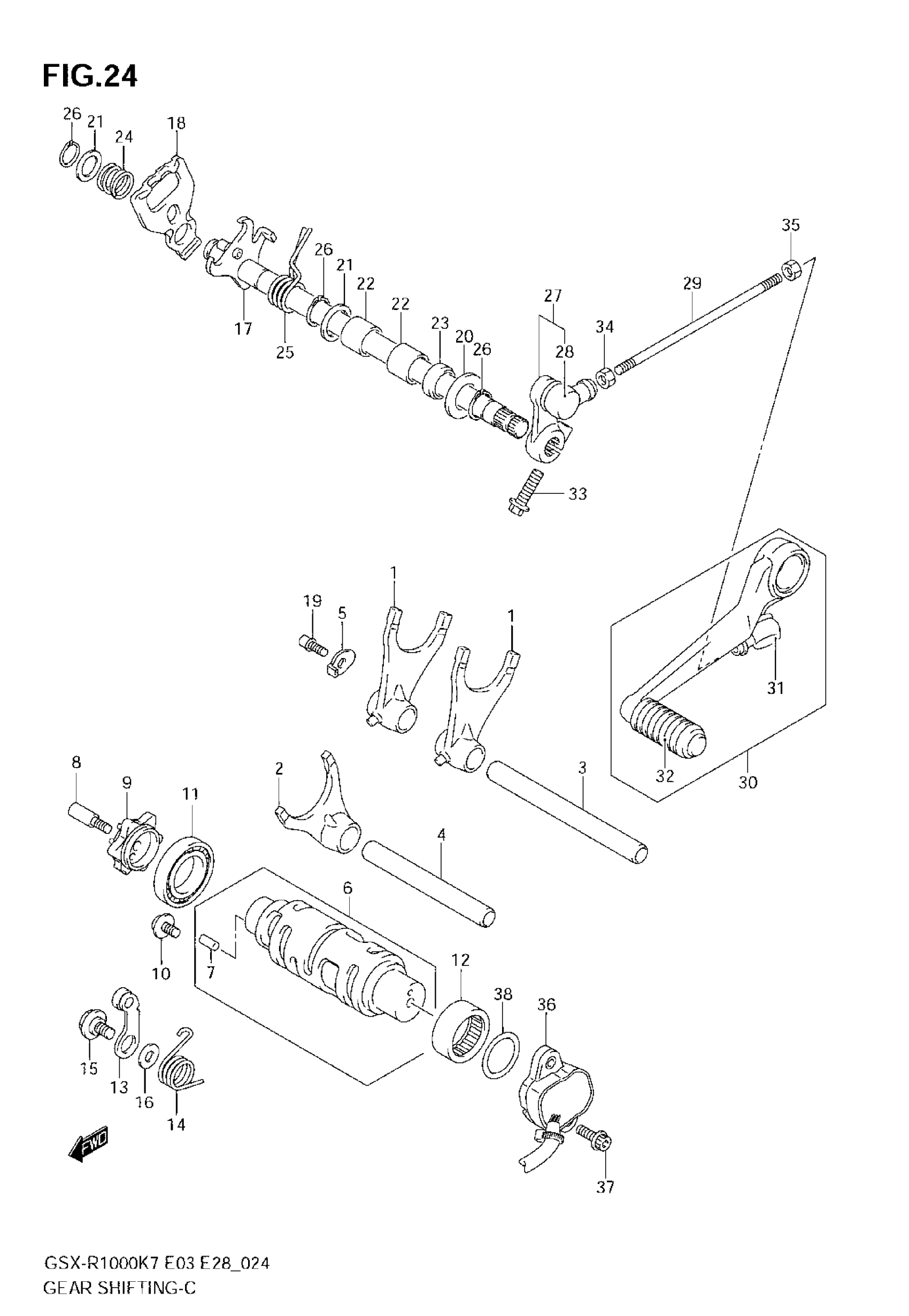

Suzuki GSX-R1000 (2008) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1 This part replaces 25211-35F10.

25211-35F11

$82.82

2

FORK, GEAR SHIFT NO.3 This part replaces 25231-35F10.

25231-35F11

$116.12

3

SHAFT, GEAR SHIFT FORK

25411-24F00

$32.85

4

SHAFT,GEAR SHIFT FORK (L:110)

25411-26D01

$21.49

5

RETAINER, GEAR SHIFT FORK

25451-35F00

$6.83

6

CAM,GEAR SHIFT | Includes Item(s) 7

25310-40F00

$285.47

7

PIN (4X13.8)

04221-04089

$1.15

8

BOLT, GEAR SHIFT CAM This part replaces 25312-42F00.

25312-42F01

$7.60

9

PLATE, GEAR SHIFT CAM

25381-13E30

$63.98

10

SCREW, GEAR SHIFT CAM RETAINER | 6X12

09136-06147

$3.48

11

BEARING, GEAR SHIFT CAM | 25X47X8

09262-25006

$23.85

12

BEARING, GEAR SHIFT CAM, L | 25X32X12

09263-25018

$19.88

13

STOPPER, SHIFT CAM

25350-35F00

$19.62

14

SPRING, GEAR SHIFT CAM

25355-03G00

$5.75

15

BOLT, SHIFT CAM STOPPER ARM | 6X14.3

09111-06041

$2.73

16

WASHER, CAM STOPPER THRUST

08211-06141

$1.66

17

SHAFT,GEAR SHIFT

25510-40F00

$128.60

18

PLATE,GEAR SHIFT CAM DRIVE This part replaces 25512-06G10.

25512-06G20

$23.32

19

STOPPER, GEAR SHIFT ARM

25671-35F00

$5.18

20

WASHER, GEAR SHIFT SHAFT, L | 14X29X0.8

09160-14016

$1.98

21

WASHER, GEAR SHIFT SHAFT | 14X22X1.0

09181-14167

$2.64

22

BEARING, GEAR SHIFT SHAFT

09263-14027

$12.57

23

SEAL, GEAR SHIFT SHAFT OIL | 14X22X6

09283-14006

$6.23

24

SPRING, GEAR SHIFT PLATE

09440-17009

$1.80

25

SPRING, SHIFT SHAFT RETURN

09444-20001

$4.97

26

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

$1.97

27

ARM, GEAR SHIFT LINK | Includes Item(s) 28

25520-16G20

$57.80

28

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.21

29

ROD, GEAR SHIFT LINK | L:165,STD

25525-07A10

Unavailable

29

ROD, GEAR SHIFT LINK | L:180,OPT

25525-19D20

$14.10

30

LEVER ASSY,GEAR | Includes Item(s) 31 - 32 This part replaces 25600-41G00.

25600-41G01

$149.22

31

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.21

32

RUBBER, GEAR SHIFT PEDAL

25652-20C00

$5.21

33

BOLT, GEAR SHIFT LINK ARM | 6X25

09103-06212

$2.53

34

NUT, GEAR SHIFT LINK ROD, L

09140-06025

$1.89

35

NUT, GEAR SHIFT LINK ROD

08310-0006A

$1.89

36

SENSOR ASSY,GEA This part replaces 37730-41G01.

37730-41G03

$74.05

37

BOLT, GEAR SHIFT SW

09106-05023

$2.80

38

O-RING, GEAR SHIFT SW | DD:2.4,ID:25.7

09280-26007

$6.15
