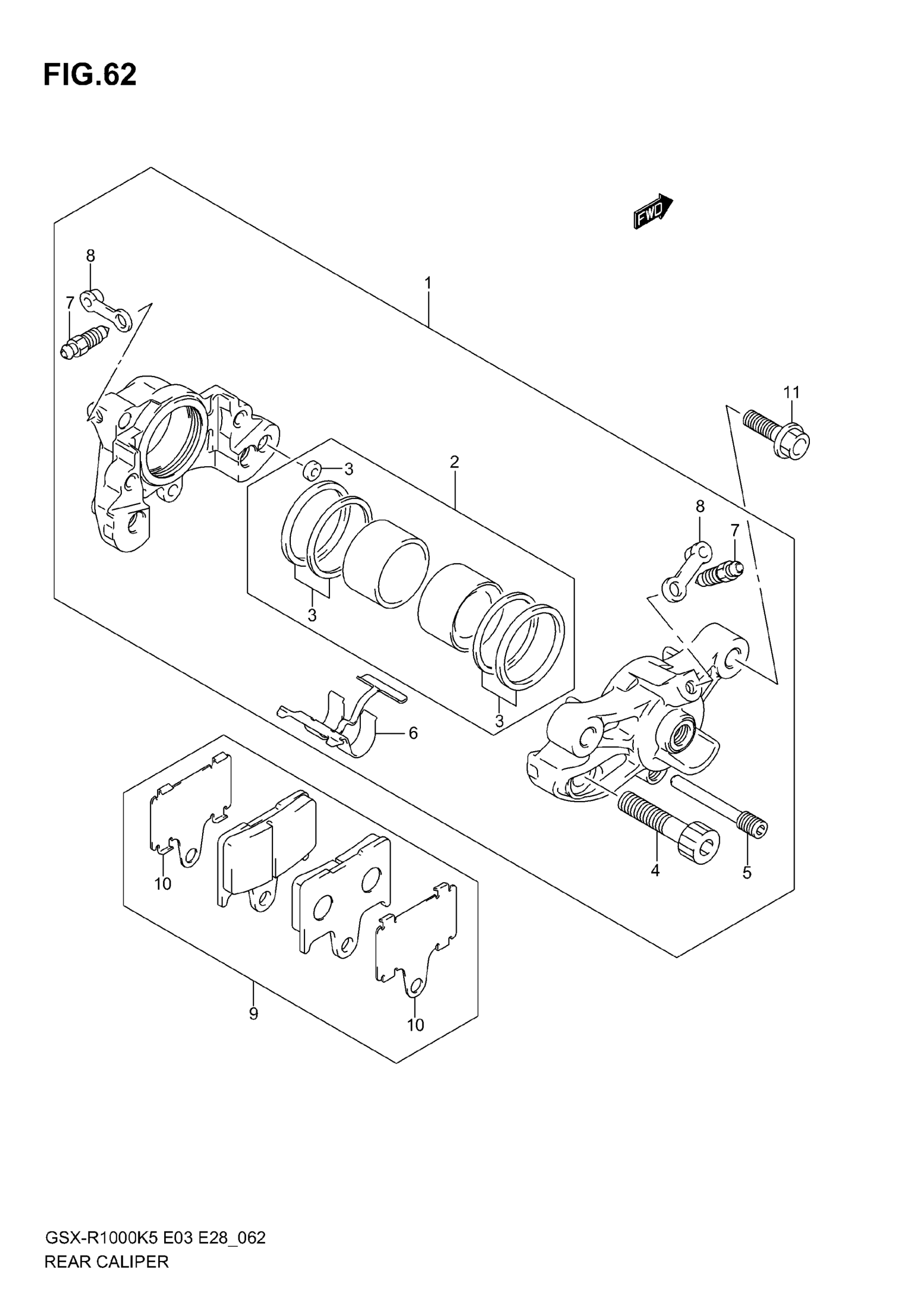

Suzuki GSX-R1000 (2006) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR | Includes Item(s) 2 - 8

69100-29G20-999

$588.87

2

PISTON SET

69100-40811

$82.37

3

SEAL SET, PISTON

69100-14880

$33.92

4

BOLT

69145-40F00

$20.37

5

PIN, PAD

69141-40F00

$29.01

6

SPRING, PAD

69315-29G00

$22.72

7

BLEEDER

59121-01A00

$8.35

8

CAP

59122-01A00

$4.15

9

PAD & SHIM SET | Includes Item(s) 10

69100-18820

$65.75

10

SHIM, PAD

69171-40F00

$19.42

11

BOLT

09103-08359

$3.54
