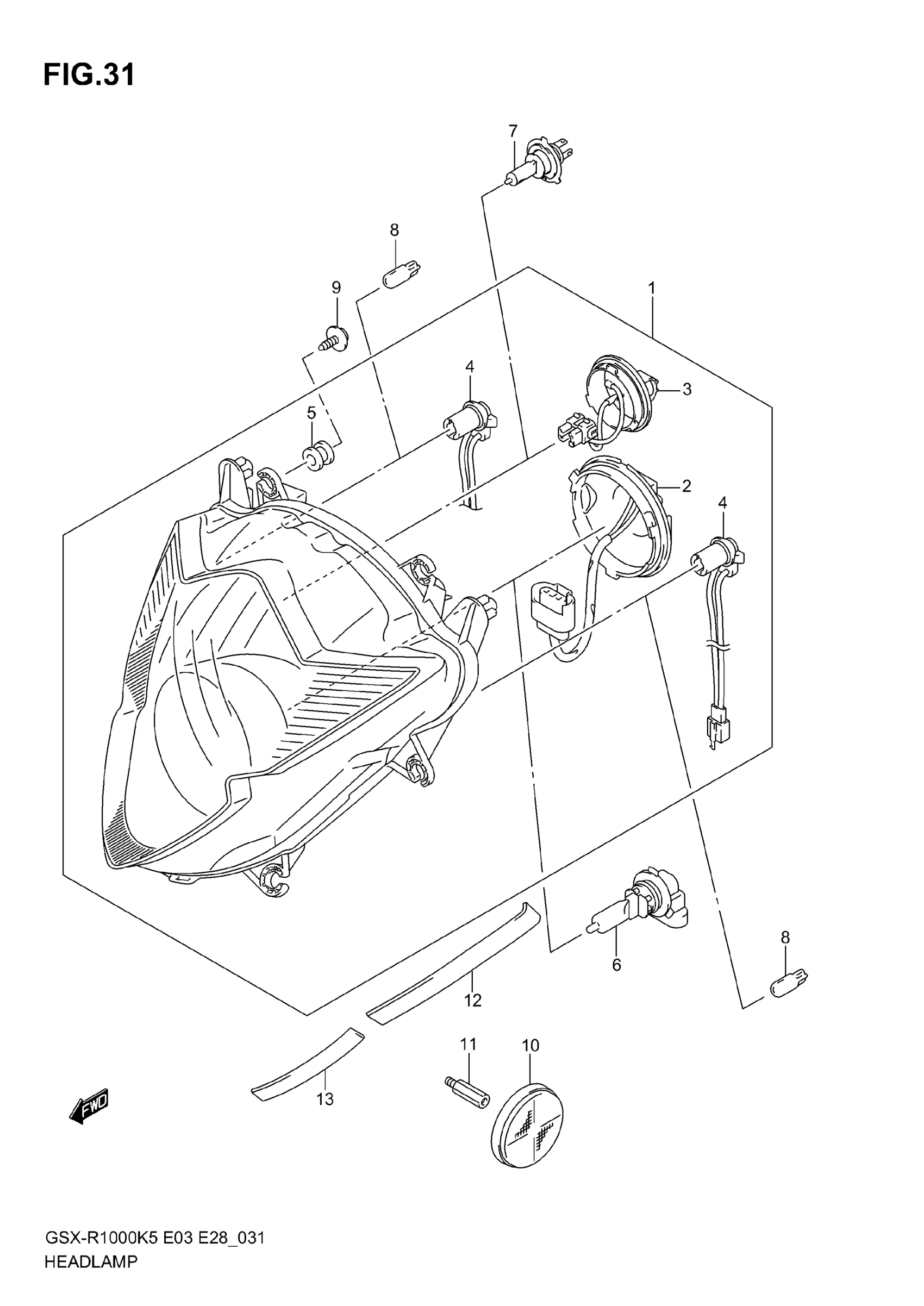

Find the part on the Headlamp diagram for your 2006 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki GSX-R1000 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY | Includes Item(s) 2 - 5 This part replaces 35100-41G00-999.

35100-41G02-999

1
Out of stock

2

BACK COVER, LOWER

35179-41G30

1
Out of stock

3

BACK COVER, UPPER

35179-41G70

1
Out of stock

4

CORD ASSY This part replaces 36118-29G50.

36118-29G51

2
Out of stock

5

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

6
Out of stock

6

BULB (12V60W,HB3)

09471-12151

1
Out of stock

7

BULB (12V55W H7)

09471-12188

1
Out of stock

8

.BULB (12V5W)

09471-12216

2
Out of stock

9

SCREW, HEADLAMP

09136-05062

8
Out of stock

10

REFLEX REFLECTOR ASSY

35950-14A00

2
Out of stock

11

BOLT, FRONT SIDE REFL

09119-06104

2
Out of stock

12

TAPE, HEADLAMP LENS, NO.1 | 155X10X0.13

33652-41G50

2
Out of stock

13

TAPE, HEADLAMP LENS, NO.2 | 120X10X0.13

33652-41G60

2
Out of stock
