Description

Price

1

WASHER, PRI DRIVEN GEAR THR | 25X54X2.4

09160-25073

$15.75

2

BEARING, PRIMARY DRIVEN GEAR | 35X40X35.8

09263-35017

$38.42

3

GEAR ASSY, PRIMARY DRIVEN | NT:73

21200-40870

$573.27

4

HUB, CLUTCH SLEEVE

21410-41G00

$263.42

5

SPRING, CLUTCH SLEEVE

21413-41G00

$9.70

6

PLATE, CLUTCH DRIVE NO.1

21441-36F00

$20.82

7

PLATE, CLUTCH DRIVE NO.2

21441-36F10

$27.95

8

PLATE, CLUTCH DRIVE NO.3

21442-41G00

$26.85

9

PLATE, CLUTCH DRIVEN (T:2.3)

21451-41G00

$13.42

10

PLATE, CLUTCH DRIVEN (T:2.0)

21451-41G10

$13.42

11

PLATE, CLUTCH DRIVEN (T:2.6)

21451-41G20

$18.80

12

DISC,CLUTCH PRESSURE

21462-41G00

$88.67

13

.SEAT,WAVE WASHER

21471-41G00

$13.59

14

WASHER, CLUTCH PLATE WAVE

21472-41G00

$20.39

15

BOLT, CLUTCH SPRING

21482-41G00

$2.81

16

CAM SET, CLUTCH

21610-41G00

Unavailable

17

WASHER,CAM REACTION WAVE

21621-41G00

$14.59

18

LIFTER, CLUTCH PRESSURE DISK

21622-41G00

$10.33

19

NUT, CL PRESS DISK LIFTER LOCK

21623-41G00

$2.80

20

WASHER, LIFTER LOCK NUT

09181-08139

$1.99

21

NUT, CLUTCH SLEEVE HUB

09159-24010

$12.27

22

.WASHER (25X50X2.5) | 25X50X2.5

09160-25056

$10.94

23

WASHER, CLUTCH SLEEVE HUB | 25X41X2.5

09160-25077

$11.38

24

WASHER, CLUTCH SLEEVE HUB WAVE

09164-24006

$3.52

25

ROD, CLUTCH

23110-38B00

$22.18

26

ROD, CLUTCH PUSH, L

23111-35F00

$12.73

27

PIECE, CLUTCH PUSH

23121-41G00

$55.32

28

CAMSHAFT,CLUTCH RELEASE

23122-41G00

$64.22

29

CAP, CLUTCH PUSH ROD

23123-41G00

$10.46

30

SPRING, CLUTCH RELEASE RETURN

23125-41G00

$3.11

31

ARM,CLUTCH RELEASE

23271-41G00

$53.05

32

BOLT, CL RELEASE ARM

09103-06223

$2.57

33

SCREW, CLUTCH PUSH ROD

09134-06015

$6.44

34

WASHER, CLUTCH RELEASE | 10.5X24X1

09160-10020

$1.93

35

WASHER, CLUTCH PUSH PIECE THR

09160-15045

$3.62

36

BEARING, CL RLSE CAM SHAFT LOW | 10X14X10

09263-10014

$12.57

37

BEARING, CL RLSE CAM SHAFT UPR | 12X18X12

09263-12027

$6.79

38

BEARING, CLUTCH PUSH PIECE THR | 15X28X2

09263-15003

$7.70

39

SEAL, CL RLSE CAMSHAFT OIL | 10X20X6

09282-10012

$7.42

40

SEAL, CLUTCH PUSH ROD OIL | 5X34X10

09285-06011

$7.67

41

SEAL, CLUTCH PUSH ROD CAP | 10X17X5

09285-10004

$3.13

42

NUT This part replaces 08310-00063.

08310-0006A

$1.89

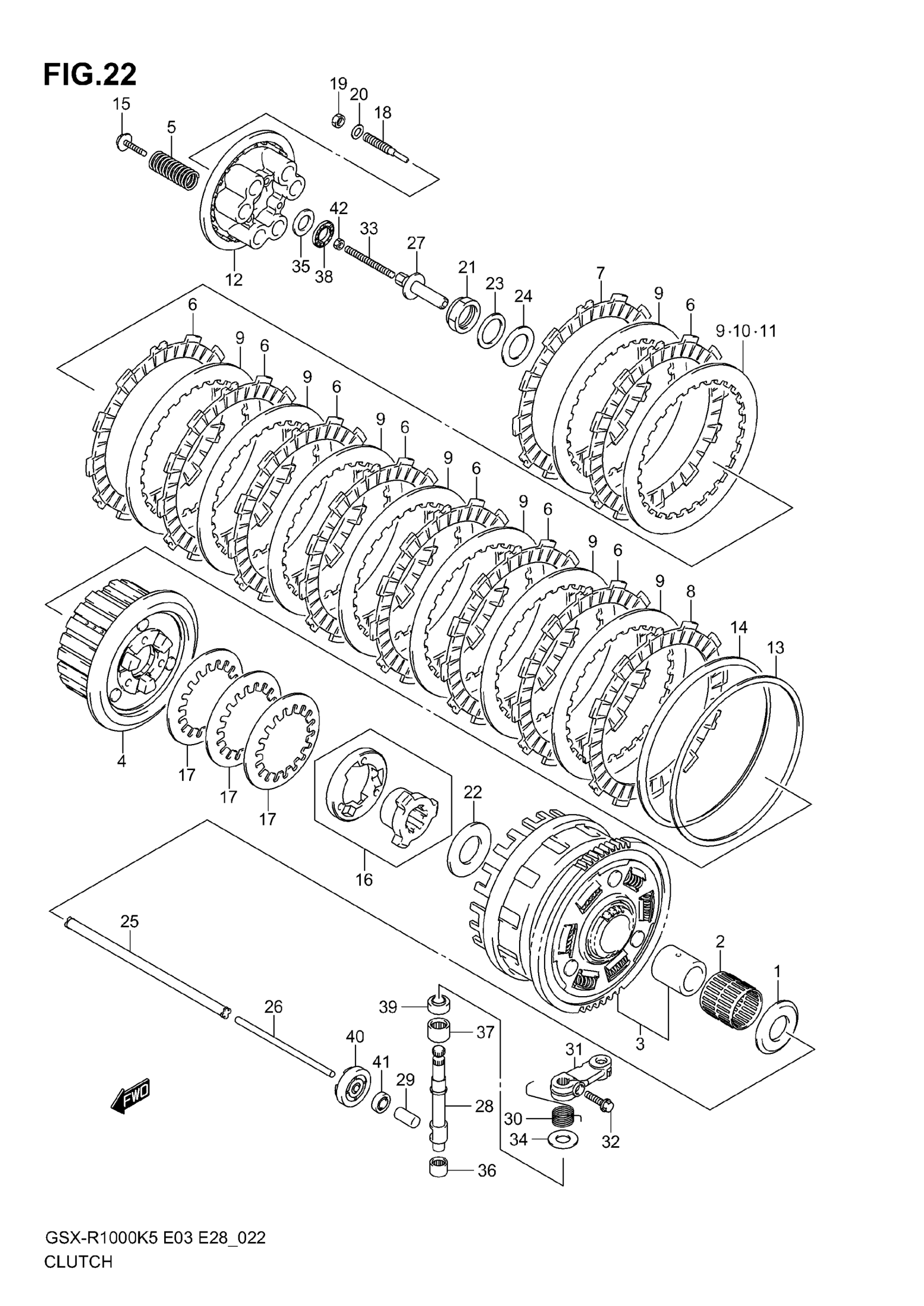

Suzuki GSX-R1000 (2006) CLUTCH Diagram
