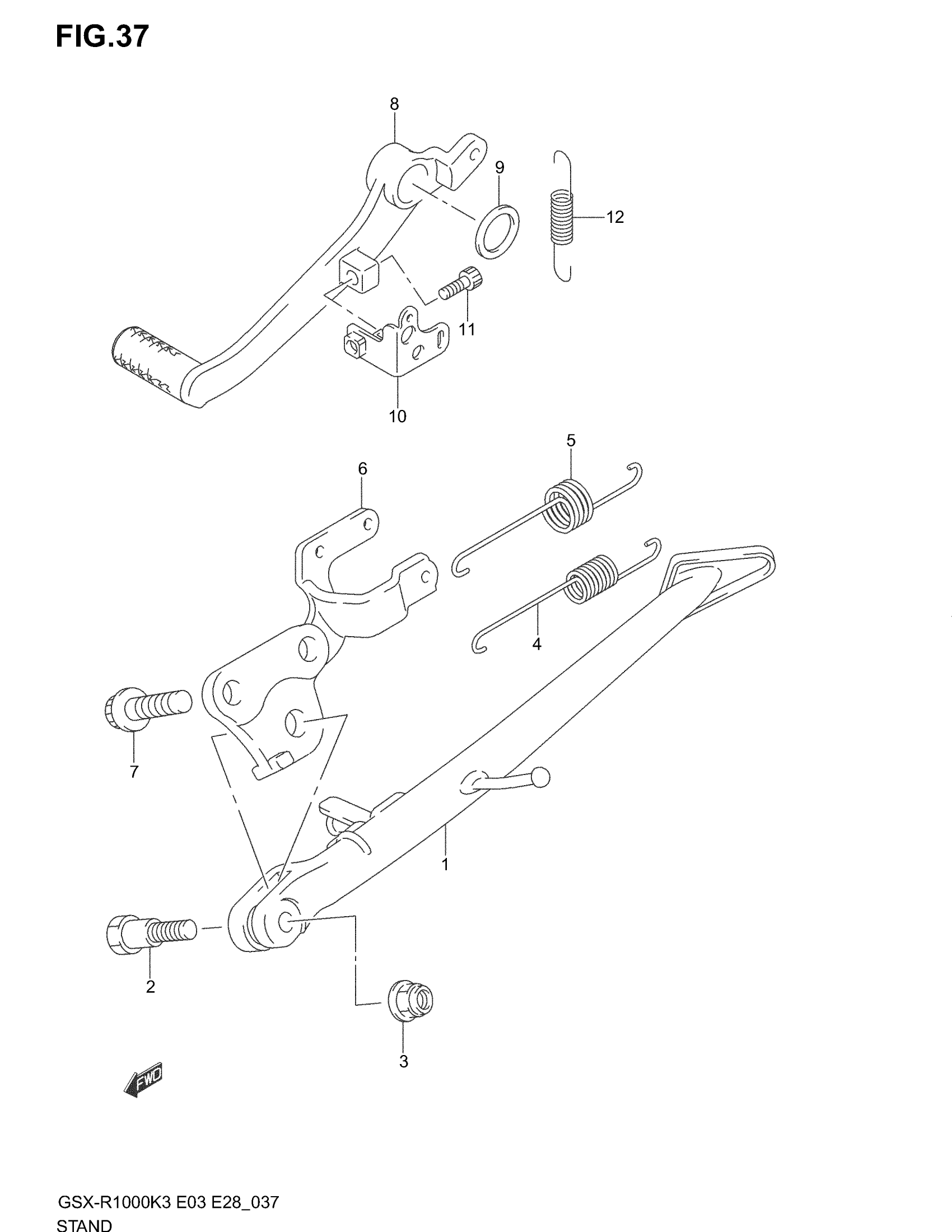

Suzuki GSX-R1000 (2004) STAND Diagram

#

Description
Price

1

STAND, PROP | E3,E33

42310-18G00

Unavailable

1

STAND, PROP | MODEL K3 E28 This part replaces 42310-40F00.

42310-40F10

$162.23

1

STAND, PROP | MODEL K4 E28

42310-18G00

Unavailable

2

BOLT, PROP STAND

09111-10059

$6.27

3

NUT

09159-10103

$2.80

4

SPRING, INNER

09443-14070

$4.97

5

SPRING, OUTER

09443-19016

$5.31

6

BRACKET, PROP STAND | MODEL K3 This part replaces 42330-35F01.

42330-35F02

$145.10

6

BRACKET, PROP STAND | MODEL K4

42330-35F02

$145.10

7

BOLT

09106-10064

$4.42

8

PEDAL, BRAKE

43111-35F10

$174.43

9

WASHER

09160-18022

$2.80

10

HOOK, RETURN SPRING

43560-35F10

Unavailable

11

BOLT This part replaces 07130-06163.

07130-0616B

$2.38

12

SPRING, RETURN

09443-11035

$5.28
