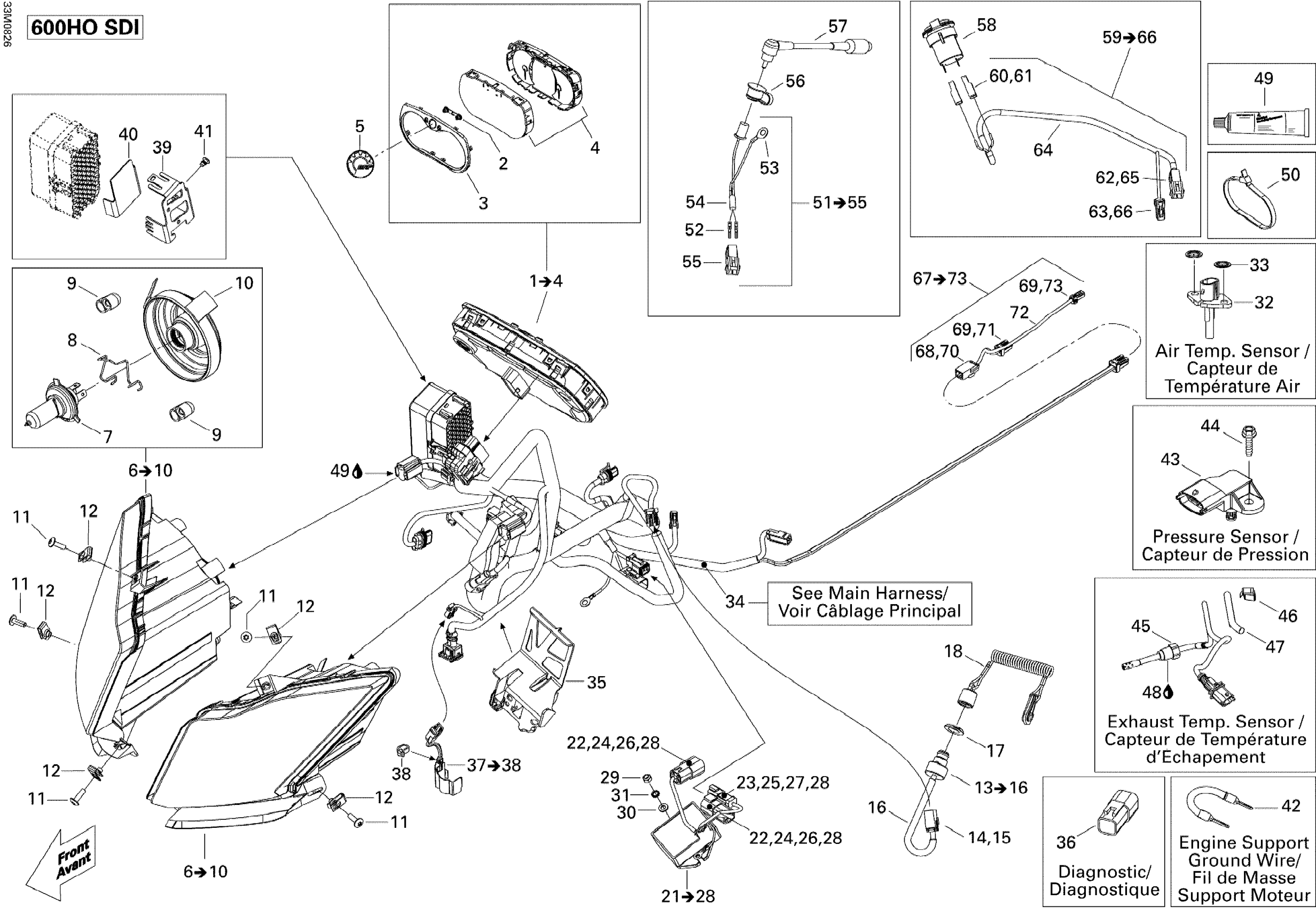

Ski-Doo GSX LTD TOURING 600 HO SDI, 2008 Electrical System Diagram
#
2
Speedometer Button | XTP
415129355
Unavailable
3
Gauge Ring
415129348
Unavailable
4
Lens | XTP
415129349
Unavailable
5
BRP Logo 20MM x 2MM | XTP
516006224
Unavailable
6
RH Headlamp Ass'y | Includes 2400 to 2400c
517304194
Unavailable
6
LH Headlamp Ass'y | Includes 2600 to 2600c
517304195
Unavailable
7
Halogen Bulb, 60/55 W, 12 V ( H4 )
515176274
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Cap
515176498
Unavailable
10
Rubber Cap Protector
219800280
Unavailable
11
Torx Screw M6 X 20
250000722
Unavailable
12
Panel Nut M6 X 1.0
250100198
Unavailable
13
DESS Switch
515177249
Unavailable
16
Tubing 12 mm
409902000
Unavailable
18
DESS
515178284
Unavailable
21
Voltage Regulator | Includes 32 to 38
515176243
Unavailable
22
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
278001477
Unavailable
26
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
278001478
Unavailable
28
Sealing Cap
293000052
Unavailable
29
Elastic Stop Nut M6
232561414
Unavailable
30
Flat Washer 6 mm
234061410
Unavailable
31
External Serrated Lock Washer 6 mm
234461608
Unavailable
34
MAIN HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 2000
515176603
Unavailable
35
BRACKET - Call your local BRP dealership
515176513
Unavailable
36
Diagnostic Connector
278002704
Unavailable
37
HEATER ELEMENT SUPPORT ASS'Y - Call your local BRP dealership | Includes 50 to 53
515176653
Unavailable
39
Fuse Support - Call Your Local BRP Dealership
515177549
Unavailable
40
PROTECTOR - Call your local BRP dealership
515176637
Unavailable
41
Avex Rivet
390909200
Unavailable
42
Ground Wire
515176358
Unavailable
43
Pressure And Temperature Sensor
707000995
Unavailable
44
Screw M4 X 16
250000725
Unavailable
48
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
49
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
50
Tie Wrap 142 mm
293750002
Unavailable
53
OPEN BARREL - Call your local BRP dealership
515175172
Unavailable
54
Vinyl Tubing, Low Temp 3000Mm Long
219704424
Unavailable
57
Extension
515175851
Unavailable
58
Outlet Power Kit, 12 Volts
861507200
Unavailable
59
Power Outlet Harness - Call Your Local BRP Dealership | Includes 50 to 57
515176527
Unavailable
63
Female Terminal
515175231
Unavailable
66
Female Housing, 2 Circuits
515175658
Unavailable
67
Junction Harness
515176571
Unavailable
69
Female Terminal
515175231
Unavailable
73
Female Housing, 2 Circuits
515175658
Unavailable
