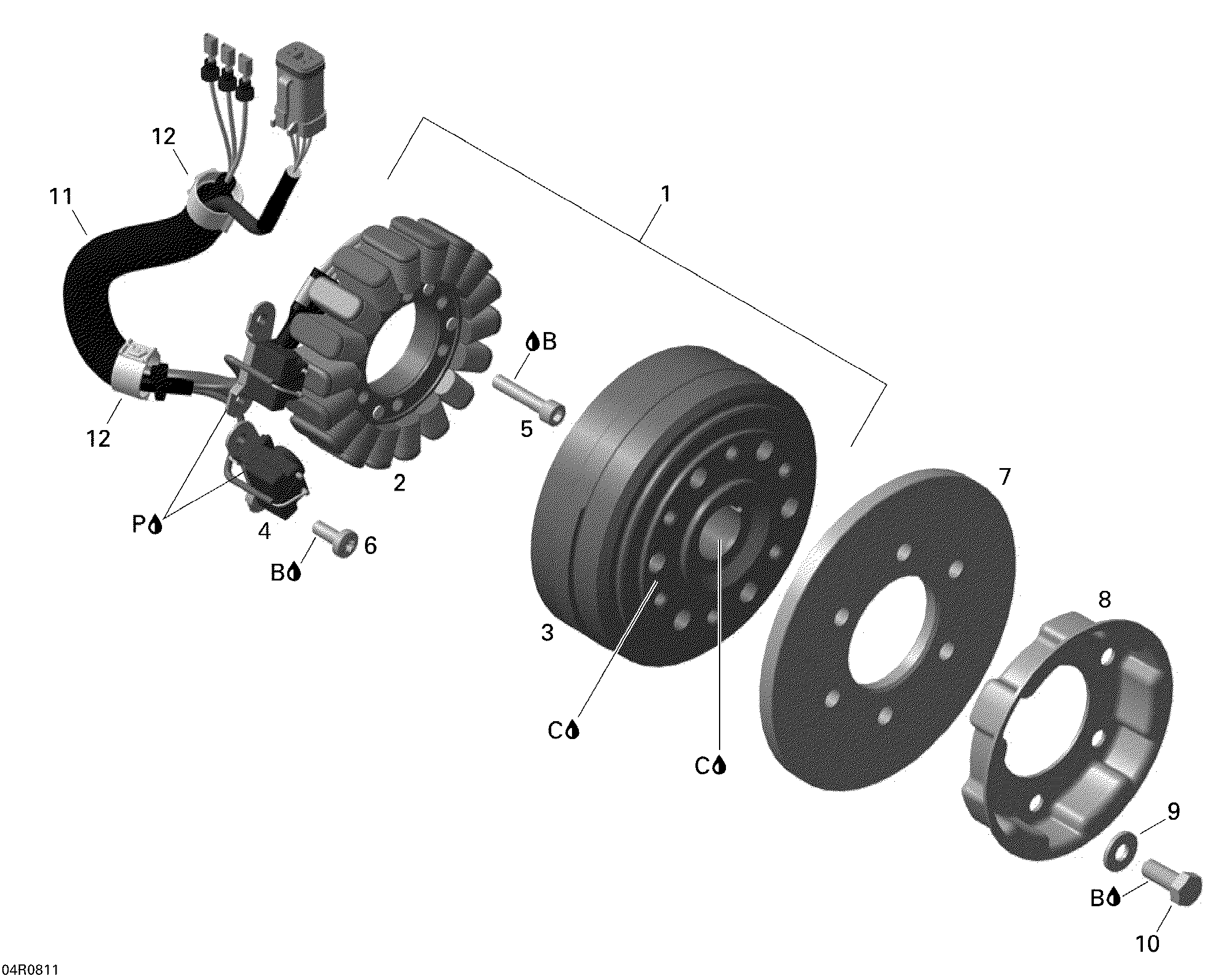

Ski-Doo GSX LTD 800R, 2008 Magneto Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Stator Plate | Includes 2 to 3

420889904

$319.49

3

Flywheel

420665722

$516.89

4

Pickup Ass'y

420966804

$206.12

5

Socket Head Screw M6 X 30

205063044

$1.42

6

Torx Screw M6 X 16

420640324

$2.06

7

FLYWHEEL - Call your local BRP dealership

420866070

Unavailable

8

STARTING PULLER - Call your local BRP dealership

420852534

Unavailable

9

Flat Washer

420827405

$1.66

10

Hex. Screw M8 X 20

207182044

$0.61

11

Tube

420460871

$2.06

12

Conduit Clip

420960896

$2.14

B

Loctite 243, 10 ml

293800060

$20.77

C

Sealant Loctite 648

219703000

$35.72

P

Loctite 5910, 300 ml

293800081

$57.99
