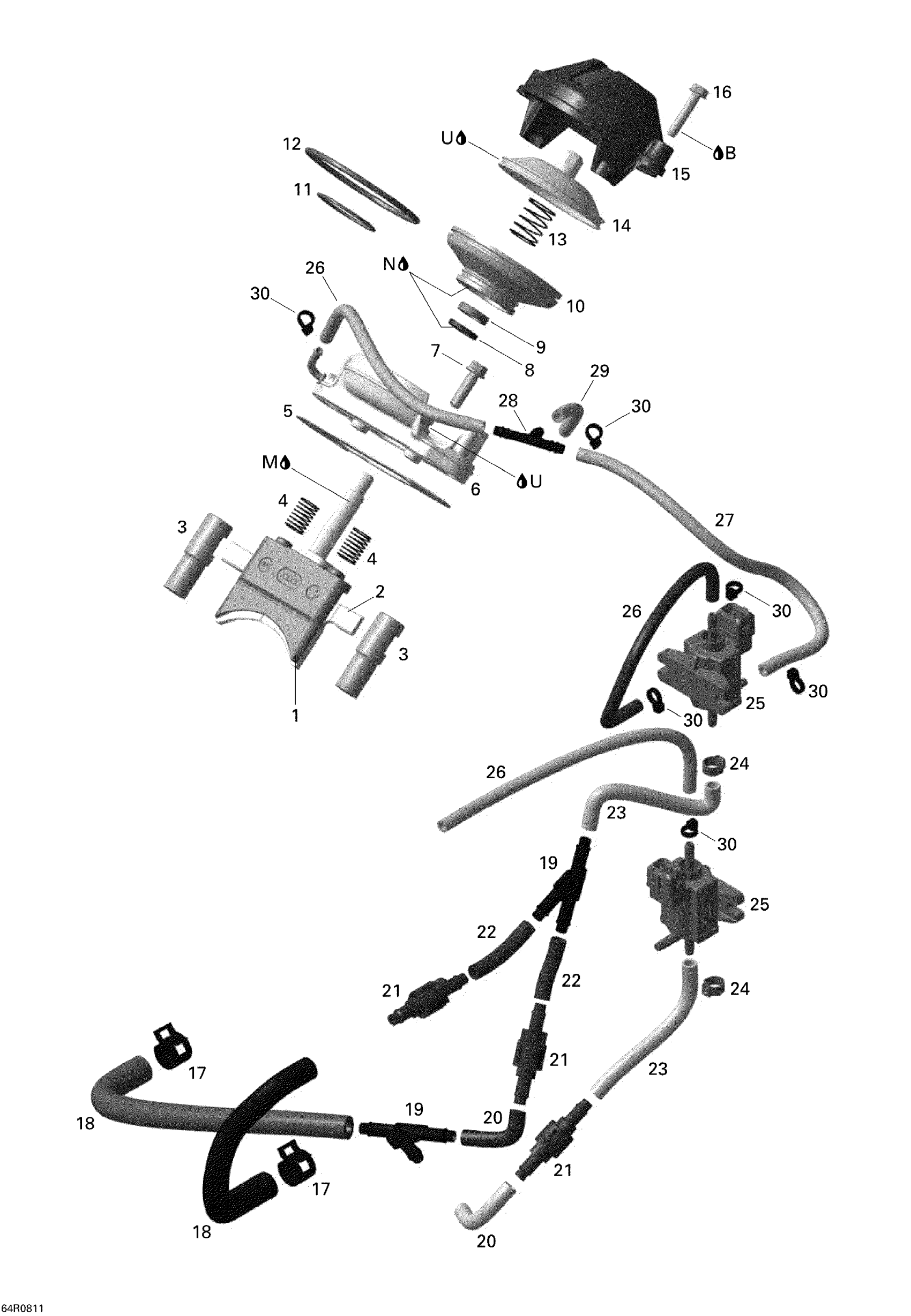

Ski-Doo GSX LTD 800R, 2008 3D Rave Diagram

#

Description
Price

1

Upper Exhaust Valve | Composante émission de type échappement.

420854900

$20.74

2

LOWER EXHAUST VALVE - Call your local BRP dealership

420854906

Unavailable

3

Exhaust Valve

420854890

$11.18

4

Spring

420238558

Unavailable

5

Gasket

420430030

$9.31

6

VALVE HOUSING - Call your local BRP dealership

420854887

$99.97

7

Torx Flange Screw M6 X 20

420440207

$2.54

8

Gasket Ring

420431380

$8.34

9

Oil Seal | Included in gasket kit

420950732

Unavailable

10

Bellows

420260725

$41.51

11

Hose Spring This part replaces 420838253.

420838255

$6.11

12

Hose Spring This part replaces 420939285.

420939286

Unavailable

13

Spring

420238557

$5.22

14

EXHAUST VALVE PISTON - Call your local BRP dealership

420854444

$33.05

15

Rave Cover

420812710

$18.43

16

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

Unavailable

17

Norma Spring Clamp

293650214

$15.35

18

MOLDED HOSE - Call your local BRP dealership

420460782

$11.15

19

Y-Fitting

293710059

Unavailable

20

HIGH PRESSURE AIR HOSE, 40 MM - Call your local BRP dealership

420460851

$11.15

21

Check Valve

420660543

$28.43

22

HIGH PRESSURE AIR HOSE, 35 MM - Call your local BRP dealership

420460855

Unavailable

23

HIGH PRESSURE AIR HOSE, 90 MM - Call your local BRP dealership

420460856

$11.15

24

Gear Clamp

420853658

$6.26

25

Solenoid Valve

270600005

$39.62

26

High Pressure Air Hose, 180 mm

420660571

$12.55

27

HIGH PRESSURE AIR HOSE, 220 MM - Call your local BRP dealership

420660575

$11.15

28

T-Fitting

293710068

$6.59

29

HIGH PRESSURE AIR HOSE, 50 MM - Call your local BRP dealership

420660572

$11.15

30

Tie Wrap 94 mm | 4X4

293750001

$0.83

B

Loctite 243, 10 ml

293800060

$20.77

M

Molykote G-N, 50 g

420297433

Unavailable

N

Dow Corning 111, 150 g

413707000

$57.82

U

Sealing Compound Loctite 5366 310Ml

420297907

Unavailable
