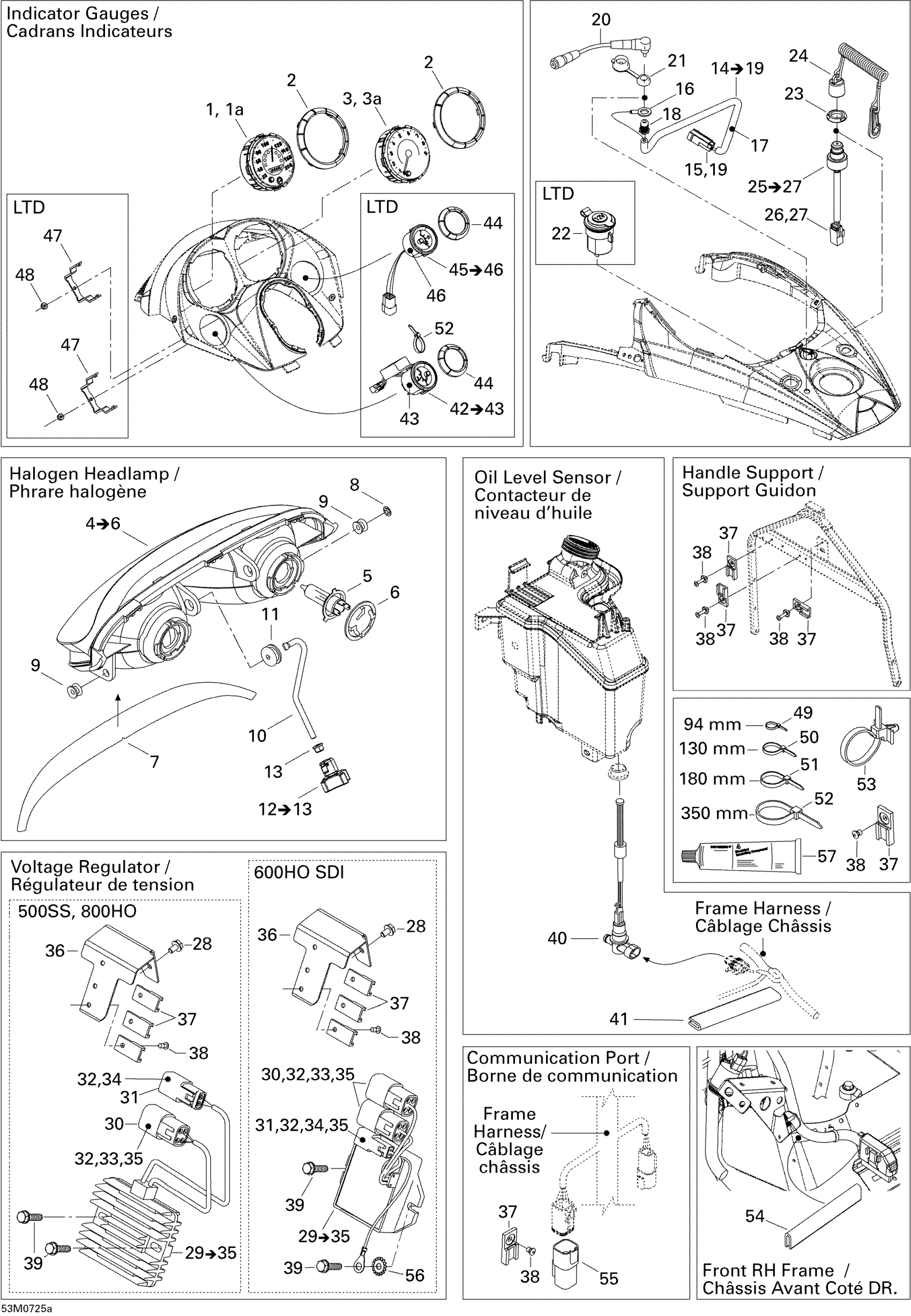

Ski-Doo GSX LTD 800 HO PTEK, 2007 Electrical Accessories 800 HO Diagram

#

Description
Price

1

SPEEDOMETER - Call your local BRP dealership | Includes 1a

515176477

Unavailable

1a

REMPLACEMENT LENS, SPEEDOMETER - Call your local BRP dealership

415128938

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

Unavailable

3

TACHOMETER - Call your local BRP dealership

515176478

Unavailable

3a

Lens

415129320

Unavailable

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

Unavailable

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

7

HEADLAMP DECAL - Call your local BRP dealership

516001328

Unavailable

8

Push Nut

732610072

Unavailable

9

HEADLAMP BUSHING - Call your local BRP dealership

515175760

Unavailable

10

ADJUSTER ROD - Call your local BRP dealership

515175521

Unavailable

11

Grommet - Call your local BRP dealership

415100800

Unavailable

12

HANDLE - Call your local BRP dealership

515175975

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

14

Visor Harness

515177837

$32.28

15

Male Terminal

515175232

$1.49

16

OPEN BARREL - Call your local BRP dealership

515175172

Unavailable

17

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

18

Visor Plug

415096100

Unavailable

19

Male Terminal Housing, 2 Circuits

515175654

$7.48

20

Extension

515175851

Unavailable

21

Cap

572103300

$9.65

22

Outlet Power Kit, 12 Volts

861507200

Unavailable

23

Safety Nut (DESS Switch)

278002963

$2.72

24

DESS

515178284

Unavailable

25

DESS Switch

515177249

Unavailable

26

Male Terminal

515175232

$1.49

27

Male Housing, 3 Circuits

515175494

$15.35

28

Hex. Forming Screw M6 X 10

210261050

$1.42

29

Voltage Regulator

515175968

Unavailable

30

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

31

Mâle Terminal Housing, 2 Circuits

278001674

$29.97

32

Male Terminal

515175568

$7.48

33

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

34

Male Lock, 2 Circuits

278001672

$3.02

35

Sealing Cap

293000052

Unavailable

36

HOUSING SUPPORT - Call your local BRP dealership

515176191

Unavailable

37

Clip

270000141

$8.33

38

Avdel Rivet 3/16"

293150037

$0.47

39

Hexagonal Head Screw

210262050

$1.74

40

OIL LEVEL SENSOR - Call your local BRP dealership

515176327

Unavailable

41

TRIM - Call your local BRP dealership

509000263

Unavailable

42

Temperature Gauge

515176214

Unavailable

43

GAUGE BULB - Call your local BRP dealership

415128974

Unavailable

44

RING GAUGE - Call your local BRP dealership

515176216

Unavailable

45

FUEL GAUGE - Call your local BRP dealership

515176215

Unavailable

46

GAUGE BULB - Call your local BRP dealership

415128974

Unavailable

47

HOLDER CASE - Call your local BRP dealership

515176235

Unavailable

48

LOCK NUT - Call your local BRP dealership

515176236

Unavailable

49

Tie Wrap 94 mm | 4X4

293750001

$0.83

50

Tie Wrap 142 mm

293750002

Unavailable

51

Tie-Rap 180 mm

414115200

$0.09

52

Tie Wrap 368 mm

293750008

$0.85

53

Tie-Rap 173 mm

293750009

Unavailable

54

Was 271000110 Protection Trim

219704353

Unavailable

55

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

$10.63

56

Lock Washer Serrated M6

250200041

Unavailable

57

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable
