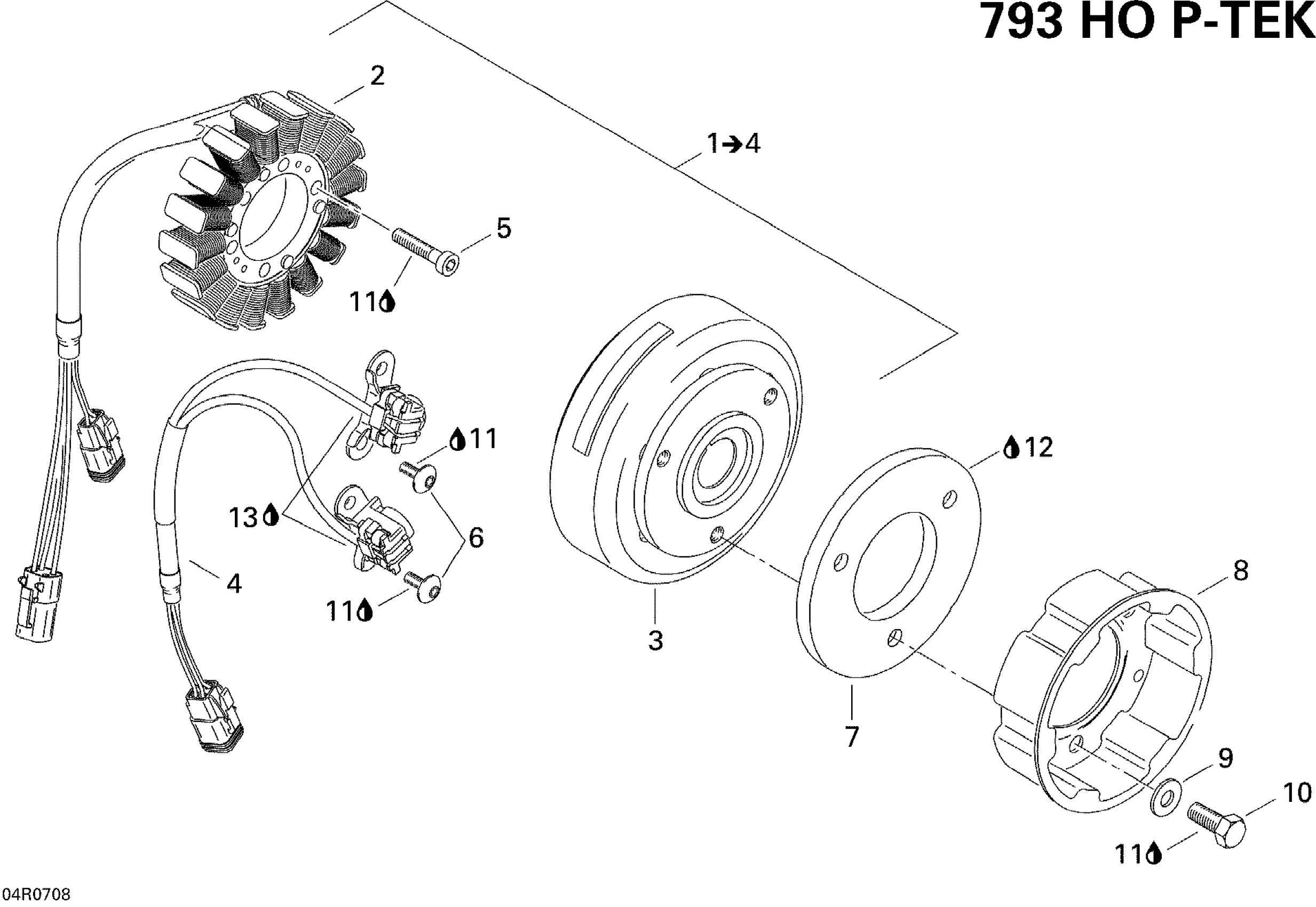

Ski-Doo GSX LTD 800 HO PTEK, 2007 Magneto Diagram

#

Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Stator Plate A

420889905

Unavailable

3

FLYWHEEL - Call your local BRP dealership

410922947

Unavailable

4

Pickup Ass'y

410922948

Unavailable

5

Socket Head Screw M6 X 30

205063044

Unavailable

6

Torx Screw M6 X 16

420640324

$2.06

7

Flywheel

420866756

Unavailable

8

Starting Pulley | Manual Start This part replaces 420852532.

420852533

Unavailable

9

Flat Washer

420827405

$1.66

10

Hex. Screw M8 X 20

207182044

$0.61

11

Loctite 243, 10 ml

293800060

$20.77

12

Sealant Loctite 648

219703000

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable
