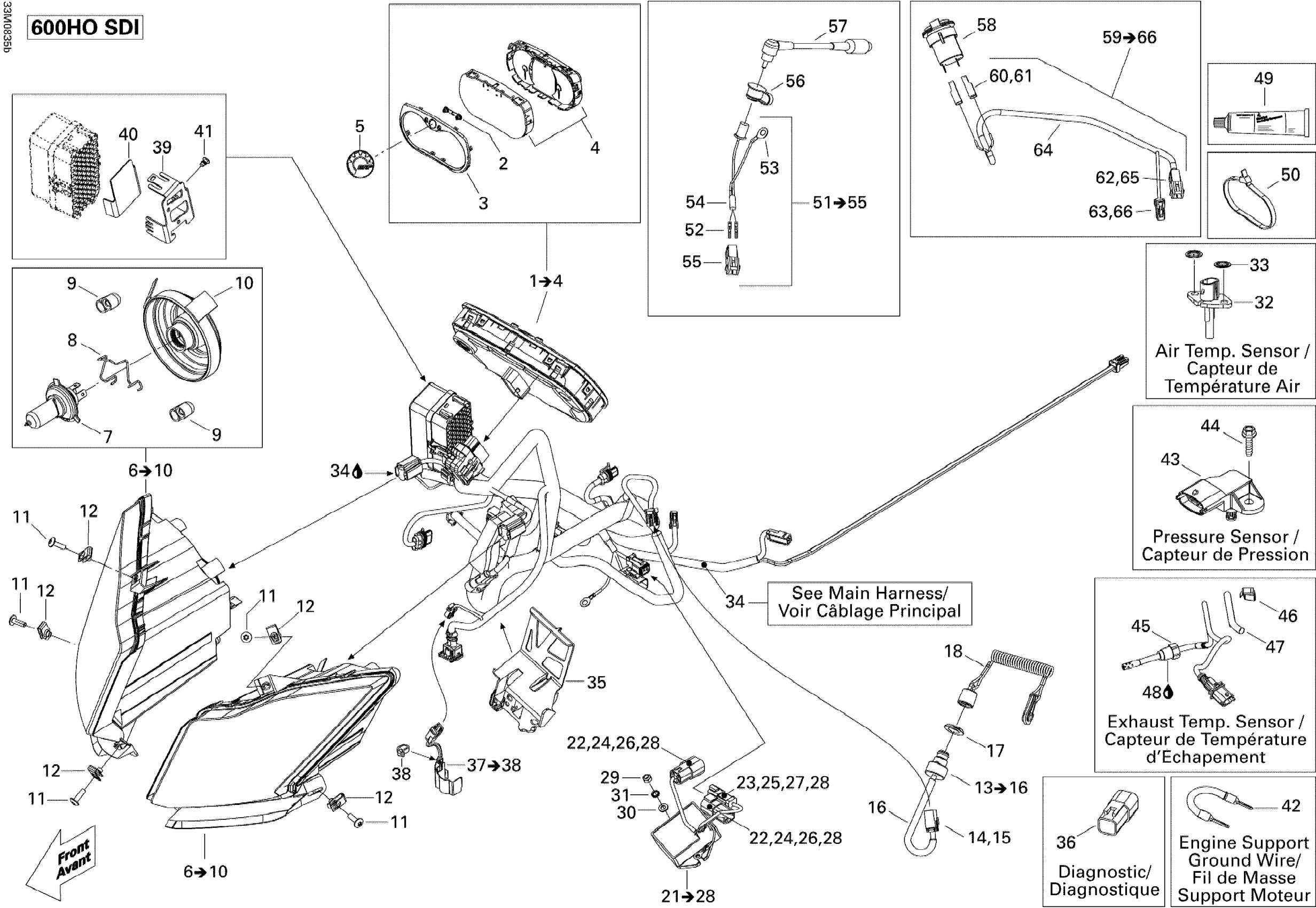

Ski-Doo GSX LTD 600 HO SDI, 2008 Electrical System 600HO SDI Diagram

#

Description
Price

1

Speedometer | Includes 10 to 10c

515177910

$615.35

2

Speedometer Button | XTP

415129355

Unavailable

3

Gauge Ring

415129348

Unavailable

4

Lens | XTP

415129349

Unavailable

5

BRP Logo 20MM x 2MM | XTP

516006224

Unavailable

6

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

Unavailable

6

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

Unavailable

7

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Cap

515176498

Unavailable

10

Rubber Cap Protector

219800280

Unavailable

11

Torx Screw M6 X 20

250000722

Unavailable

12

Panel Nut M6 X 1.0

250100198

Unavailable

13

DESS Switch

515177249

Unavailable

14

Male Terminal

515175232

$1.49

15

Male Housing, 3 Circuits

515175494

$15.35

16

Tubing 12 mm

409902000

Unavailable

17

Safety Nut (DESS Switch)

278002963

$2.72

18

DESS

515178284

Unavailable

21

Voltage Regulator | Includes 32 to 38

515176243

Unavailable

22

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

23

Mâle Terminal Housing, 2 Circuits

278001674

$29.97

24

Male Terminal

515175568

$7.48

25

Male Terminal

278000631

$4.12

26

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

27

Male Lock, 2 Circuits

278001672

$3.02

28

Sealing Cap

293000052

Unavailable

29

Elastic Stop Nut M6

232561414

Unavailable

30

Flat Washer 6 mm

234061410

Unavailable

31

External Serrated Lock Washer 6 mm

234461608

Unavailable

32

Air Temperature Sensor

515176366

$18.43

33

Push Nut

389804300

$0.43

34

MAIN HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 2000

515176603

Unavailable

35

BRACKET - Call your local BRP dealership

515176513

Unavailable

36

Diagnostic Connector

278002704

Unavailable

37

HEATER ELEMENT SUPPORT ASS'Y - Call your local BRP dealership | Includes 50 to 53

515176653

Unavailable

38

Tie Wrap 94 mm | 4X4

293750001

$0.83

39

Fuse Support - Call Your Local BRP Dealership

515177549

Unavailable

40

PROTECTOR - Call your local BRP dealership

515176637

Unavailable

41

Avex Rivet

390909200

Unavailable

42

Ground Wire

515176358

Unavailable

43

Pressure And Temperature Sensor

707000995

Unavailable

44

Screw M4 X 16

250000725

Unavailable

45

Temperature Sensor

514054641

$206.89

46

Clip

414227300

$1.45

47

Tubing 6 Mm 3000Mm Long

219704425

$13.14

48

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

49

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

50

Tie Wrap 94 mm | 4X4

293750001

$0.83

50

Tie Wrap 142 mm

293750002

Unavailable

50

Tie-Rap 180 mm

414115200

$0.09

50

Tie Wrap 368 mm

293750008

$0.85

51

Visor Harness

515177837

$32.28

52

Male Terminal

515175232

$1.49

53

OPEN BARREL - Call your local BRP dealership

515175172

Unavailable

54

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

55

Male Terminal Housing, 2 Circuits

515175654

$7.48

56

Cap

572103300

$9.65

57

Extension

515175851

Unavailable

58

Outlet Power Kit, 12 Volts

861507200

Unavailable

59

Power Outlet Harness - Call Your Local BRP Dealership | Includes 50 to 57

515176527

Unavailable

60

Female Terminal

409010100

$5.46

61

Female Terminal Housing, 1 Circuit

409010400

$7.48

62

Male Terminal

515175232

$1.49

63

Female Terminal

515175231

Unavailable

64

Tubing 6 Mm 3000Mm Long

219704425

$13.14

65

Male Terminal Housing, 2 Circuits

515175654

$7.48

66

Female Housing, 2 Circuits

515175658

Unavailable
