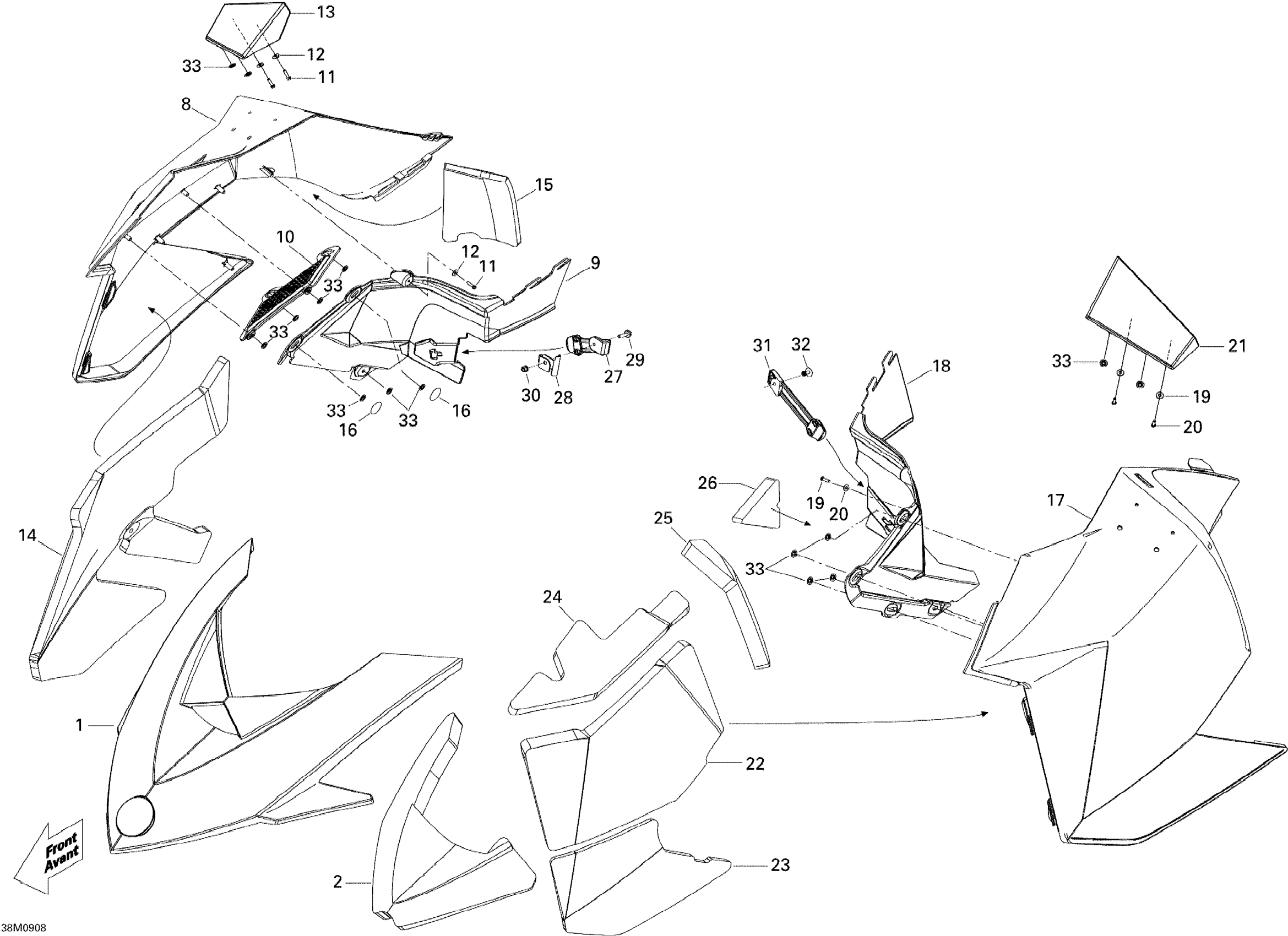

Ski-Doo GSX Limited 600 H.O. E-TEC, 2009 Hood Diagram
#
Description
Price
1
Hood, Regal Red
517304253
Unavailable
2
Hood Foam
517304913
Unavailable
8
Deep Black RH Panel
517304211
Unavailable
9
Deep Black RH Moulding Panel
517303671
Unavailable
10
Grille
517303622
Unavailable
11
Hex. Flange Screw K40 X 16
241141660
Unavailable
12
Flat Washer 4 mm, Stainless
234042600
Unavailable
13
DEFLECTOR_AIR KNEE RH B-160 - Call your local BRP dealership
517303615
Unavailable
14
RH Center Foam
517304883
Unavailable
15
RH Panel Rear Foam
517304884
Unavailable
16
Adhesive Patch
518325560
Unavailable
17
Deep Black, LH Panel
517304030
Unavailable
18
Deep Black, LH Moulding Panel
517303673
Unavailable
19
Hex. Flange Screw K40 X 16
241141660
Unavailable
20
Flat Washer 4 mm, Stainless
234042600
Unavailable
21
DEFLECTOR_AIR KNEE LH B-160 - Call your local BRP dealership
517303616
Unavailable
22
LH Panel Center Foam
517304887
Unavailable
23
LH Panel Lower Foam
517304888
Unavailable
24
LH Panel Upper Foam
517304889
Unavailable
25
LH Panel Rear Foam
517304890
Unavailable
26
Foam
517304891
Unavailable
27
RH Panel Latch
517303612
Unavailable
28
Latch Support
517304221
Unavailable
30
Hex. Flange Elastic Nut M5
233251414
Unavailable
31
LH Panel Latch
517303808
Unavailable
33
Push Nut
732610072
Unavailable
