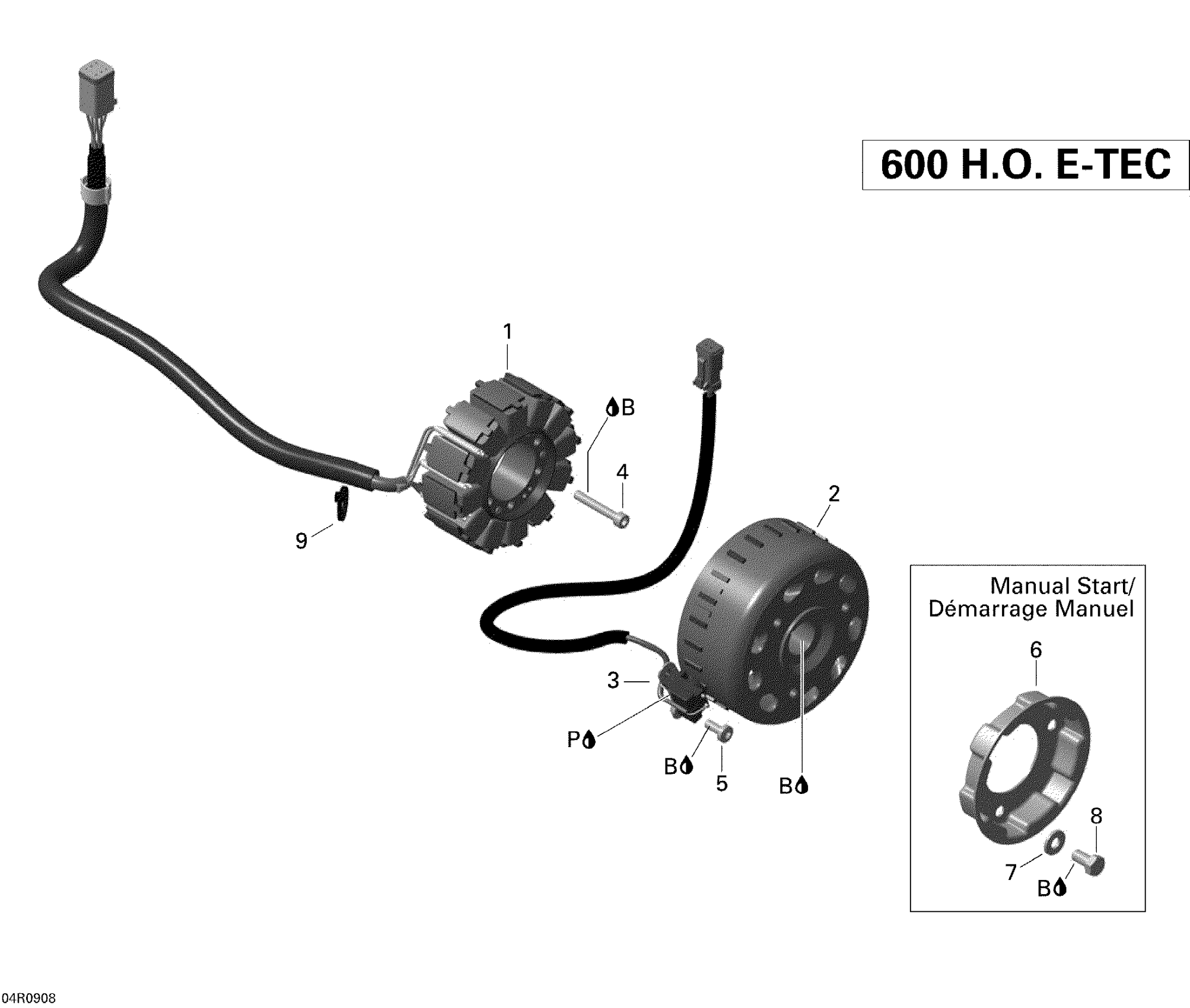

Ski-Doo GSX Limited 600 H.O. E-TEC, 2009 Magneto Diagram

#

Description

Price

1

Stator Plate

420665435

$478.99

2

Flywheel

420665442

$516.89

3

Pick-Up Ass'y

410922969

$103.05

4

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

420241816

Unavailable

5

Torx Screw M6 X 16

420640324

$2.06

6

Starting Pulley | Manual Start This part replaces 420852532.

420852533

Unavailable

7

Flat Washer

420827405

$1.66

8

Hex. Screw M8 x 16

207181644

$0.87

9

Tie Rap

420866714

$1.56

B

Loctite 243, 10 ml

293800060

$20.77

P

Loctite 5910, 300 ml

293800081

$57.99
