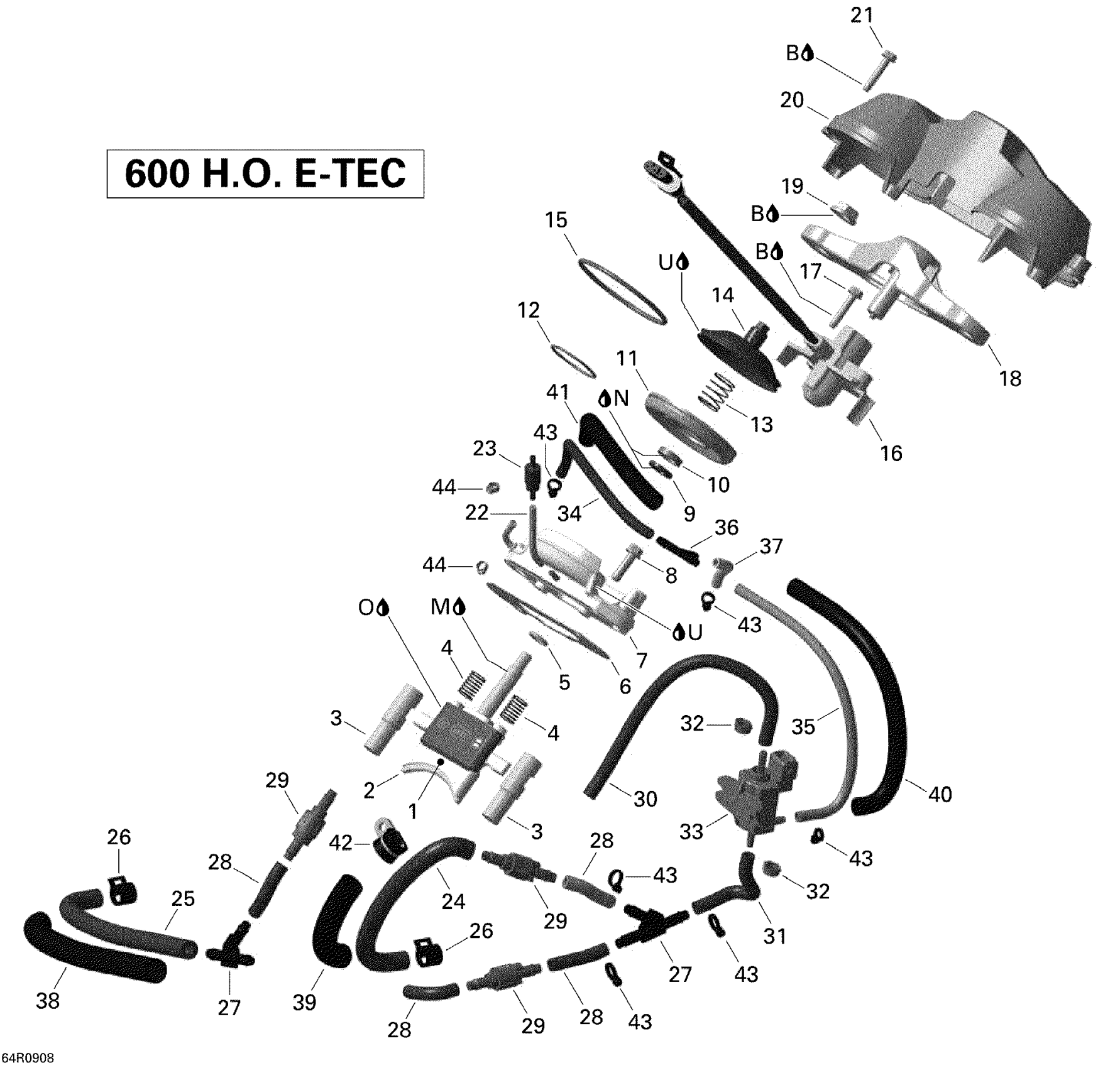

Ski-Doo GSX Limited 600 H.O. E-TEC, 2009 3D Rave Diagram

#

Description
Price

1

Exhaust Valve, Upper

420854980

$20.74

2

EXHAUST VALVE, LOWER - Call your local BRP dealership

420854972

Unavailable

3

Exhaust Valve

420854990

$11.18

4

Spring

420238558

Unavailable

5

O-Ring

420931765

$0.81

6

Gasket

420430030

$9.31

7

VALVE HOUSING - Call your local BRP dealership

420854889

Unavailable

8

Torx Flange Screw M6 X 20

420440207

$2.54

9

Gasket Ring

420431380

$8.34

10

Oil Seal | Included in gasket kit

420950732

Unavailable

11

Bellows

420260725

$41.51

12

Hose Spring This part replaces 420838253.

420838255

$6.11

13

Spring

420238557

$5.22

14

Valve Cover

420854442

$35.35

15

Hose Spring This part replaces 420939285.

420939286

Unavailable

16

Position Sensor

420854089

$109.20

17

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

Unavailable

18

Position Sensor

420854089

$109.20

19

Nut M12 X 1.5

420942190

Unavailable

20

Cover

420910821

$12.52

21

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

Unavailable

22

Oil Hose 1500Mm Long

219704404

Unavailable

23

Check Valve Ass’y

420956515

Unavailable

24

MOLDED HOSE - Call your local BRP dealership

420460782

$11.15

25

MOLDED HOSE - Call your local BRP dealership

420460782

$11.15

26

Norma Spring Clamp

293650214

$15.35

27

Y-Fitting

293710059

Unavailable

28

HIGH PRESSURE AIR HOSE, 40 MM - Call your local BRP dealership

420460851

$11.15

29

Check Valve

420660543

$28.43

30

Polyurethane Hose 10000Mm Long

219704410

Unavailable

31

HIGH PRESSURE AIR HOSE, 80 MM - Call your local BRP dealership

420460852

Unavailable

32

Gear Clamp

420853658

$6.26

33

Solenoid Valve

270600005

$39.62

34

High Pressure Air Hose, 180 mm

420660571

$12.55

35

HIGH PRESSURE AIR HOSE, 220 MM - Call your local BRP dealership

420660575

$11.15

36

T-Fitting

293710068

$6.59

37

HIGH PRESSURE AIR HOSE, 50 MM - Call your local BRP dealership

420660572

$11.15

38

Was 409901800 Tubing (13 mm)

219704400

Unavailable

39

Was 409901800 Tubing (13 mm)

219704400

Unavailable

40

Tubing 10 MM 1000MM Long

219704407

Unavailable

41

Tubing 10 MM 1000MM Long

219704407

Unavailable

42

Clamp

420851250

Unavailable

43

Tie Wrap 94 mm | 4X4

293750001

$0.83

44

Clamp

420851508

$12.52

B

Loctite 243, 10 ml

293800060

$20.77

M

Molykote G-N, 50 g

420297433

Unavailable

N

Dow Corning 111, 150 g

413707000

$57.82

O

Not Available As Spare Part - Friction Washer

Unavailable

U

Sealing Compound Loctite 5366 310Ml

420297907

Unavailable
