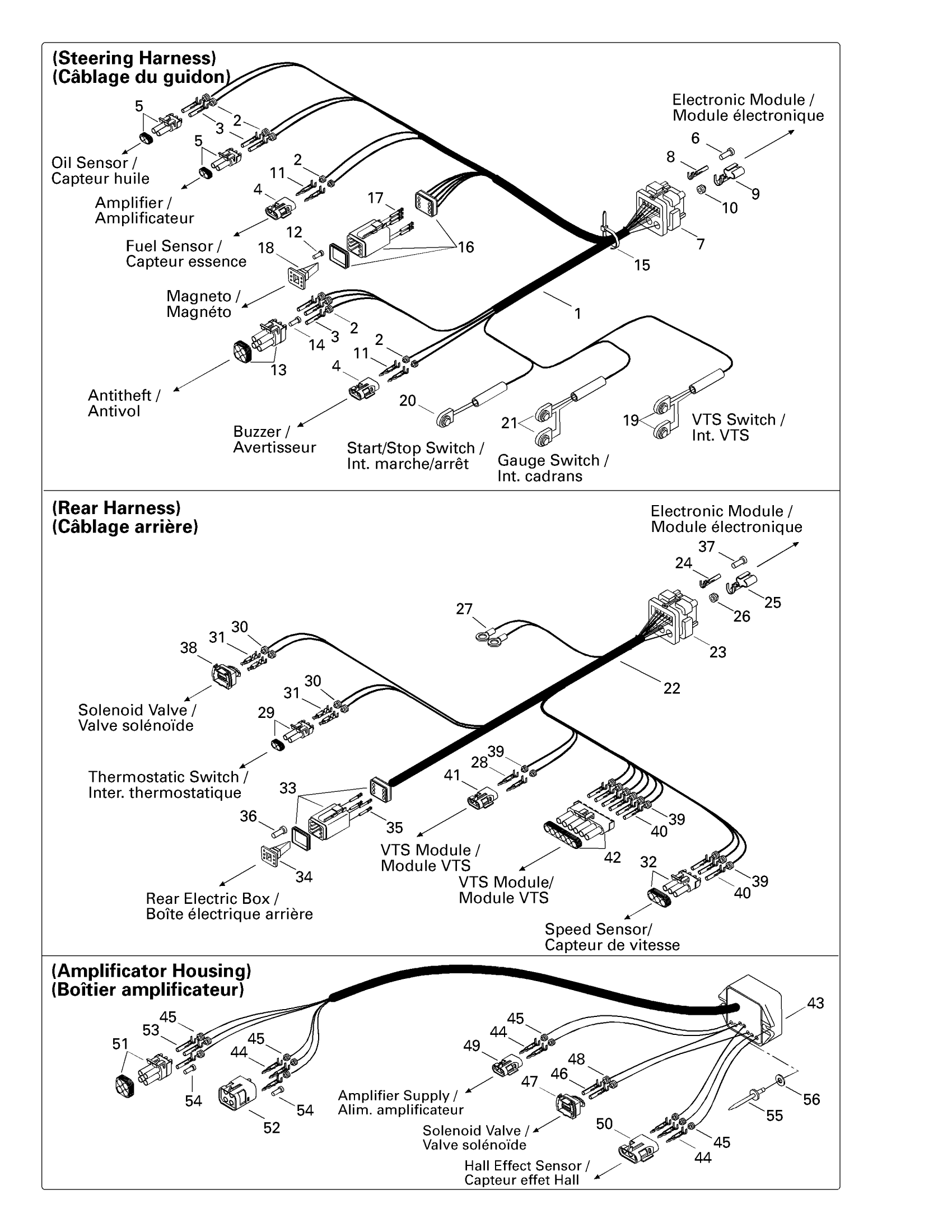

Sea-doo GSX Limited 5625, 1998 Electrical Harness Diagram

#

Description
Price

1

Steering Harness | Includes 1 - 21.

278001253

Unavailable

2

Wire Seal

278000218

$3.48

3

Female Terminal

278000223

$2.55

4

Female Housing, 2 Circuits

278000217

$7.59

5

Male Connector, 2 Circuits

278000220

$11.02

6

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

7

Male Terminal Housing, 26 Circuits

278001062

Unavailable

8

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

9

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

10

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

11

Male Terminal | XT Models

278000222

$2.55

12

Sealing Cap

293000052

$2.55

13

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

14

Wire Seal

278000216

$2.55

15

Tie Wrap 142 mm

293750002

$0.88

16

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

17

Female Terminal

278000632

$1.69

18

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

19

VTS Switch Ass'y

278000447

Unavailable

20

SWITCH-IGNIT. - Call your local BRP dealership | Includes 64 - 66. This part replaces 278000501.

278000427

Unavailable

21

Gauge Switch Ass'y

278000854

Unavailable

22

Rear Harness | Includes 22 - 42.

278001075

Unavailable

23

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

Unavailable

24

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

25

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

26

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

27

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

28

Male Terminal

409004300

$5.46

29

Male Housing, 2 Circuits

278001005

$15.57

30

Wire Seal

278000999

$2.55

31

Female Terminal

278000998

$3.48

32

Male Housing, 3 Circuits

278000273

$7.59

33

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

34

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

35

Female Terminal

278000632

$1.69

36

Sealing Cap

293000052

$2.55

37

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

38

Male Connector, 2 Circuits

278001003

$44.58

39

Wire Seal

278000218

$3.48

40

Female Terminal

278000223

$2.55

41

Female Housing, 2 Circuits

278000217

$7.59

42

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

43

Amplificator Housing Ass'y | Includes 43 - 54.

278001252

Unavailable

44

Male Terminal | XT Models

278000222

$2.55

45

Wire Seal

278000218

$3.48

46

Female Terminal

278000998

$3.48

47

Male Connector, 2 Circuits

278001003

$44.58

48

Wire Seal

278000999

$2.55

49

Female Housing, 2 Circuits

278000217

$7.59

50

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

51

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

52

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

53

Female Terminal

278000223

$2.55

54

Wire Seal

278000216

$2.55

55

Pop Rivet 3/16"

293150039

$1.37

56

Flat Washer 5 mm, Stainless

234052600

$0.64
