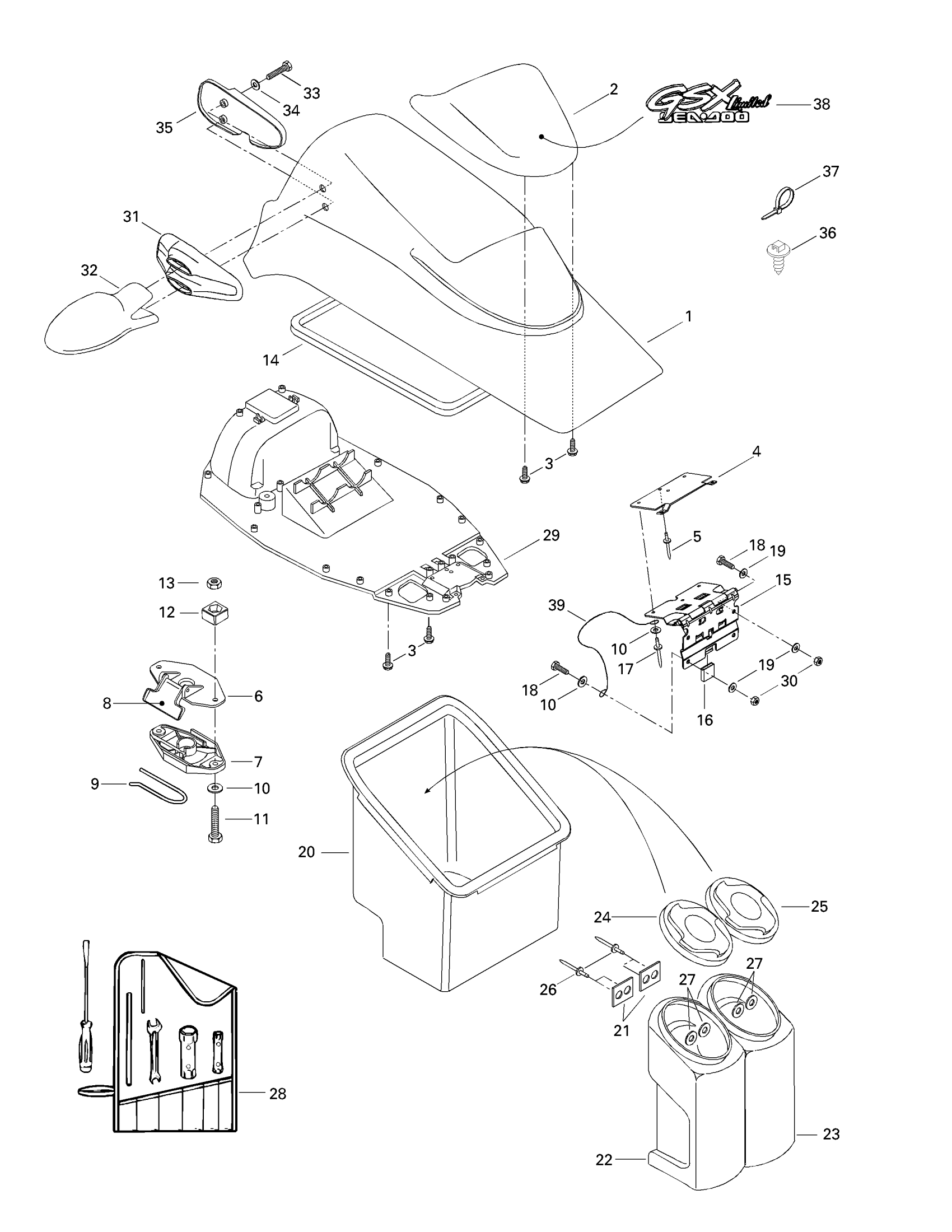

Sea-doo GSX Limited 5625, 1998 Front Storage Compartment Diagram

#

Description
Price

1

Storage Cover Upper

269500377

Unavailable

2

Deflector

269500316

Unavailable

3

Hex. Flange Screw K40 X 13

241141360

Unavailable

4

Retainer Plate

269500280

Unavailable

5

Pop Rivet 3/16"

293150039

Unavailable

6

Latch Ass'y

269700109

Unavailable

7

Latch Ass'y

269700109

Unavailable

8

Latch Ass'y

269700109

Unavailable

9

Latch Spring

269700017

$7.27

10

Stainless Flat Washer M6

234061600

$0.25

11

Hex. Screw M6 X 30

207063060

Unavailable

12

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

Unavailable

13

Hex. Elastic Stop Nut M6

232561600

$0.92

14

Was 293200017 Neoprene Seal

219704365

Unavailable

15

Hinge

269500406

Unavailable

16

Protector Cap

293830046

Unavailable

17

Pop Rivet 3/16"

293150039

Unavailable

18

SCREW-SOCKET BN.HD.M6 X 20 - Call your local BRP dealership

211000018

Unavailable

19

Flat Washer M6, Stainless

234062600

Unavailable

20

Storage Tray

269500286

Unavailable

21

GASKET - Call your local BRP dealership

293250037

Unavailable

22

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

23

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

24

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

25

Storage Housing Cap

269500237

Unavailable

26

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

27

Flat Washer M3, Stainless

234032600

$0.54

28

Tool Kit

295000066

Unavailable

29

Lower Storage Cover

269500378

Unavailable

30

Hex. Elastic Stop Nut M6

232561600

$0.92

31

Support (Mirror) RH

269500380

Unavailable

Support (Mirror) LH

269500379

Unavailable

32

Mirror RH Ass'y

269500382

Unavailable

Mirror LH Ass'y

269500381

Unavailable

33

Hex. Screw M8 x 140

211000129

Unavailable

34

Stainless, Flat Washer 8 mm

234081600

Unavailable

35

Spacer RH

269500383

Unavailable

Spacer LH

269500384

Unavailable

36

Mount Dart

293730040

$0.86

37

Tie-Rap 180 mm

414115200

$0.09

38

<> Identification Decal

219900883

Unavailable

39

RETAINER CABLE - Call your local BRP dealership

269500524

$23.82
