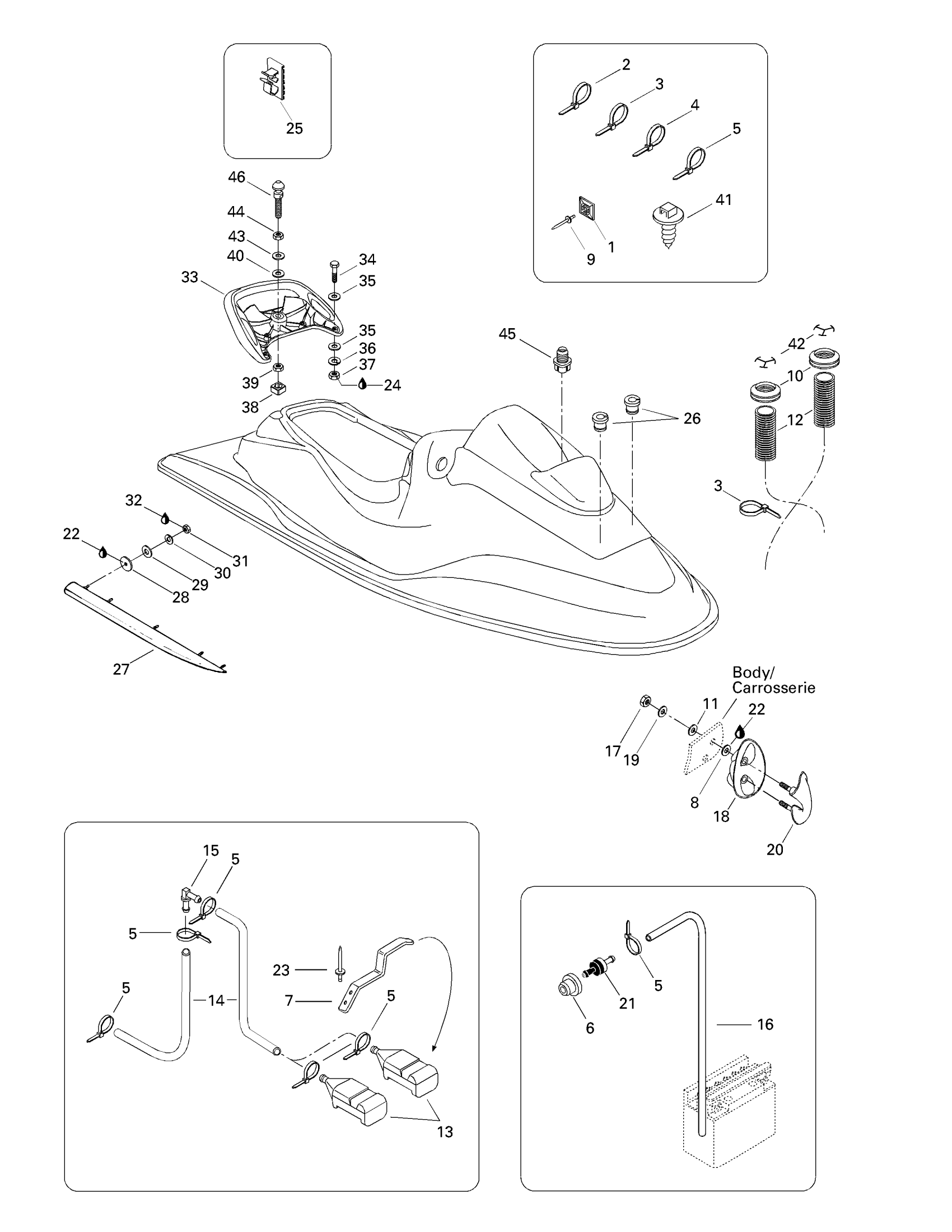

Sea-doo GSX Limited 5625, 1998 Body Diagram

#

Description
Price

1

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

2

Tie-Rap 180 mm

414115200

$0.09

3

Tie Wrap 368 mm

293750008

$0.85

4

Tie Wrap 142 mm

293750002

Unavailable

5

Tie Wrap 94 mm | 4X4

293750001

$0.83

6

Grommet

293720029

Unavailable

7

LH SPRING CLIP - Call your local BRP dealership

292000398

Unavailable

8

Stainless, Flat Washer 8 mm

234081600

Unavailable

9

Pop Rivet 1/8''

293150033

Unavailable

10

Grommet

293720036

Unavailable

11

Rubber Washer

293830037

Unavailable

12

Vent Tube

291000870

Unavailable

13

Screen Bailer

292000079

Unavailable

14

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

15

ELBOW FITTING 90 - Call your local BRP dealership

293710057

Unavailable

16

Was 415110000 Polyurethane Hose 5.2 mm

219704414

Unavailable

17

Hex. Elastic Nut M8

232581600

Unavailable

18

Shell (Viper Red)

292000379

Unavailable

19

Flat Washer 8 mm, Stainless

234082600

Unavailable

20

Eye-Bow (Viper Red)

292000378

Unavailable

21

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

22

Silicone Sealant 51388, 300 ml

296000309

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Loctite 271, 10 ml

293800005

Unavailable

25

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

26

Grommet

293720046

Unavailable

27

RH Sponson

292000512

Unavailable

LH Sponson

292000513

Unavailable

28

GASKET - Call your local BRP dealership

293250026

Unavailable

29

Flat Washer M6, Stainless

234062600

Unavailable

30

Lock Washer Helical M6

234161601

Unavailable

31

Hex. Nut M6

232061600

Unavailable

32

Loctite 243, 10 ml

293800060

$20.77

33

Grab Handle | Includes 33 - 37.

295500522

Unavailable

34

Hex. Screw M6 X 40

207064060

Unavailable

35

Flat Washer M6, Stainless

234062600

Unavailable

36

Lock Washer Helical M6

234161601

Unavailable

37

Hex. Nut M6

232061600

Unavailable

38

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

39

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

40

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

41

Mount Dart

293730040

$0.86

42

Restrictor

291001098

Unavailable

43

Flat Washer 10 mm, Stainless

234002600

Unavailable

44

Hex. Jam Nut M10

232100600

Unavailable

45

GROMMET - Call your local BRP dealership

293720042

Unavailable

46

LATCH STUD - Call your local BRP dealership

291000691

Unavailable
