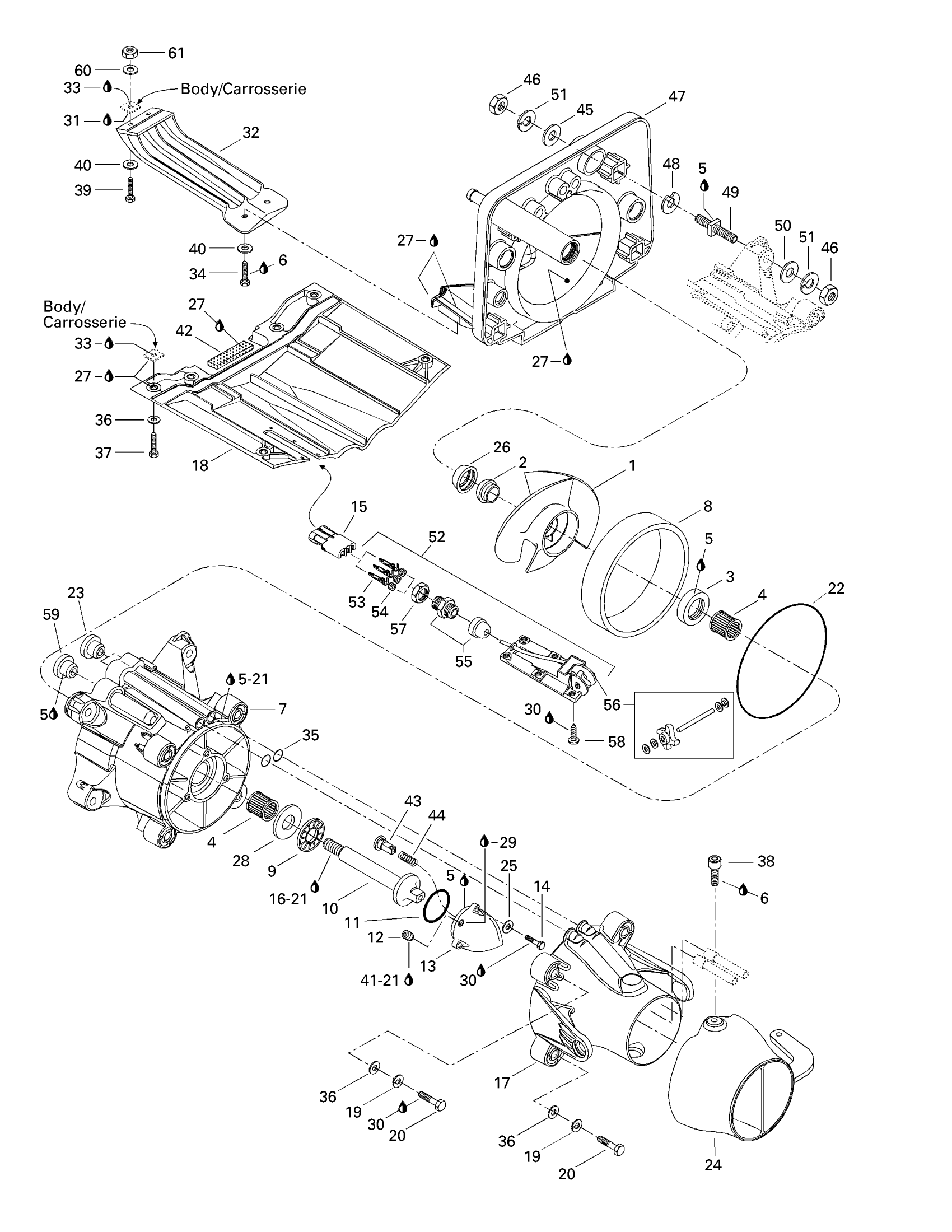

Sea-doo GSX Limited 5625, 1998 Propulsion System Diagram

#

Description
Price

1

Stainless Steel Impeller Ass'y

271000654

Unavailable

2

Impeller Boot

271000516

Unavailable

3

Oil Seal

267000094

Unavailable

4

Needle Bearing

293350017

Unavailable

5

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

6

Loctite 243, 10 ml

293800060

$20.77

7

Impeller Housing

271000650

Unavailable

8

Wear Ring

271000653

Unavailable

9

BEARING THRUST - Call your local BRP dealership

293350019

Unavailable

10

Impeller Shaft

271000743

Unavailable

11

O-Ring

293300011

Unavailable

12

Pipe Plug Socket Head 1/8-27 Npt

211500001

Unavailable

13

IMPELLER COVER - Call your local BRP dealership

271000670

Unavailable

14

Hex. Screw M5 X 20

207152060

Unavailable

15

Female Terminal Housing, 3 Circuits | XT Models

278000281

Unavailable

16

Loctite 271, 10 ml

293800005

Unavailable

17

Venturi Ass'y

271000863

Unavailable

18

Riding Plate

271000756

Unavailable

19

Lock Washer 8 mm, Stainless

234181601

Unavailable

20

Hex. Screw M8 X 35

207083560

Unavailable

21

Was 293800041 Loctite Primer 7649

219704458

Unavailable

22

O-Ring

293300045

Unavailable

23

O-RING - Call your local BRP dealership

293300040

Unavailable

24

Steering Nozzle

271000760

Unavailable

25

Flat Washer M5, Stainless

234051600

$0.64

26

Impeller Ring

271000517

Unavailable

27

Instant Gasket

219701421

Unavailable

28

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

29

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

Unavailable

30

Loctite 243, 10 ml

293800060

$20.77

31

Instant Gasket

219701421

Unavailable

32

Pump Grate

271000674

Unavailable

33

Silicone Sealant 51388, 300 ml

296000309

Unavailable

34

Hex. Screw M6 X 16

207161660

Unavailable

35

O-Ring

293300013

$5.69

36

Stainless, Flat Washer 8 mm

234081600

Unavailable

37

Hex. Screw M8 X 30

207183060

Unavailable

38

Socket Head Screw M8 X 10, Scotch Grip

211000127

Unavailable

39

Hex. Screw M6 X 35

207163560

Unavailable

40

Stainless Flat Washer M6

234061600

$0.25

41

Was 293800018 Loctite 592, 50 ml | Package T

219704455

Unavailable

42

Neoprene Seal (1PAC=3M)

219704364

$22.72

43

Pusher

271000703

Unavailable

44

SPRING - Call your local BRP dealership

271000704

Unavailable

45

Flat Washer 10 mm, Stainless

234002600

Unavailable

46

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

47

Pump Support

271000675

Unavailable

48

Shim 0.3 mm

272000053

Unavailable

49

Square Stud

250300022

Unavailable

50

Flat Washer 10 mm, Stainless

234001600

Unavailable

51

Helicoidal Lock Washer M10 | XT Models

234101601

Unavailable

52

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

53

Male Terminal | XT Models

278000222

$2.55

54

Wire Seal

278000218

Unavailable

55

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

56

Paddle Wheel Kit

295500108

Unavailable

57

LOCKING NUT - Call your local BRP dealership

293710032

Unavailable

58

SCREW-CTSK.OV.HD.PH.DIN.966A-A2 - Call your local BRP dealership

216351060

Unavailable

59

O-Ring

293300006

Unavailable

60

Flat Washer M6, Stainless

234062600

Unavailable

61

Hex. Elastic Stop Nut M6

232561600

$0.92
