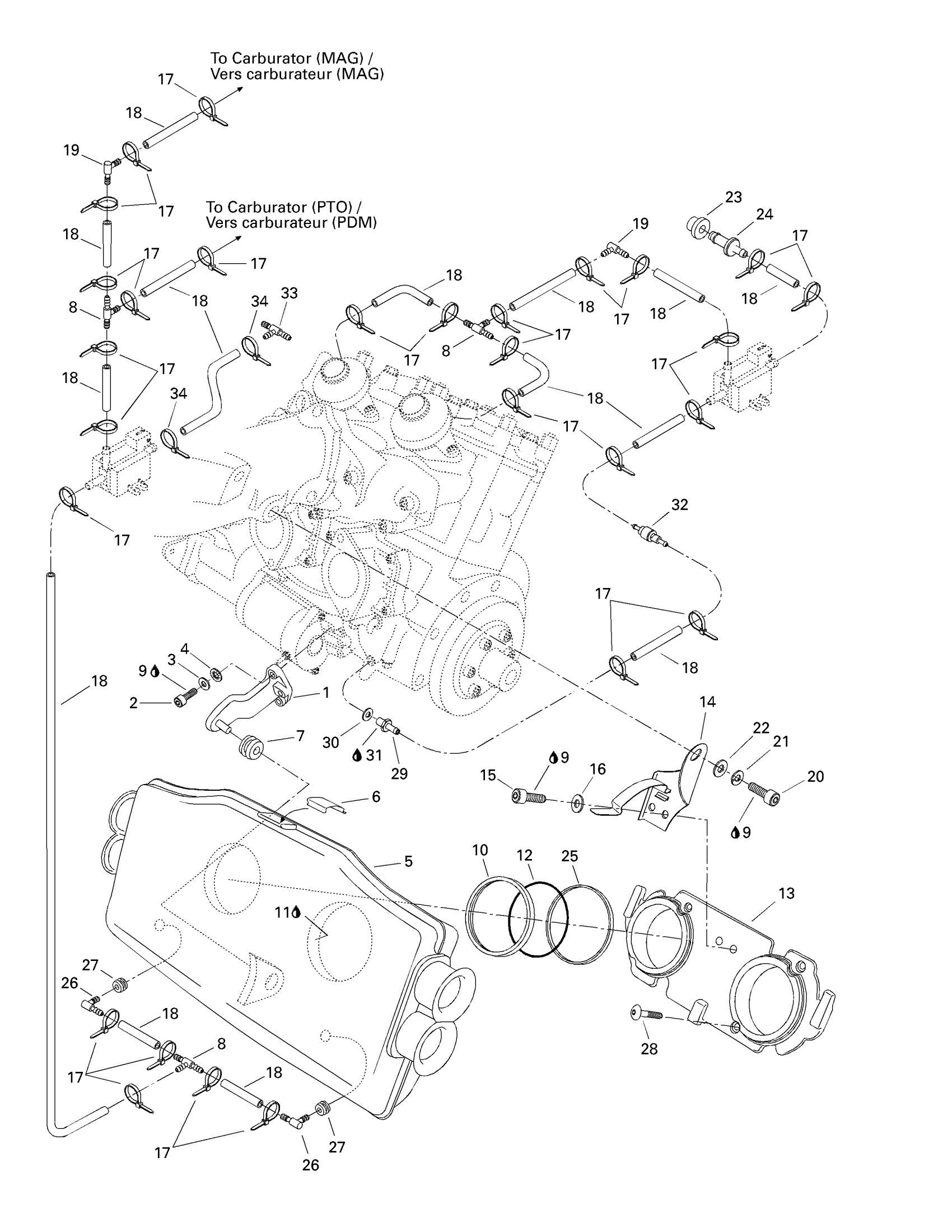

Sea-doo GSX Limited 5625, 1998 Air Intake System Diagram

#

Description
Price

1

Air Silencer Support

273000126

Unavailable

2

Socket Head Screw M6 X 35

205063560

Unavailable

3

Stainless Flat Washer M6

234061600

$0.25

4

External Serrated Lock Washer 6 mm

234461608

Unavailable

5

Air Silencer

273000091

Unavailable

6

Support Plate

273000112

Unavailable

7

Cable Grommet

293720052

Unavailable

8

T-Fitting

293710068

$6.59

9

Loctite 243, 10 ml

293800060

$20.77

10

Gasket

293250122

Unavailable

11

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

12

O-Ring

293250065

Unavailable

13

Air Silencer Adaptor

270500383

Unavailable

14

Holder

273000109

Unavailable

15

Socket Head Screw M6 X 12

205061260

$1.26

16

Stainless Flat Washer M6

234061600

$0.25

17

Tie Wrap 94 mm | 4X4

293750001

$0.83

18

Hose 4.5 mm

270000306

Unavailable

19

Elbow Fitting 90 Deg

293710069

Unavailable

20

SCREW-SOCKET HD.DIN.912A2 - Call your local BRP dealership

215981660

Unavailable

21

Lock Washer 8 mm, Stainless

234181601

Unavailable

22

Flat Washer 8 mm, Stainless

234082600

Unavailable

23

Grommet

293720029

Unavailable

24

Fitting

293700031

Unavailable

25

Ring Spacer

293200044

Unavailable

26

Elbow Fitting 90 Deg

293710050

Unavailable

27

Grommet

293720029

Unavailable

28

Screw

270500357

Unavailable

29

Male Connector

293710073

Unavailable

30

Sealing Ring

420950141

$1.64

31

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

32

Pressure Relief Valve (1.5 P.S.I)

275500104

Unavailable

33

T-Fitting

293710068

$6.59

34

Tie Wrap 142 mm

293750002

Unavailable
