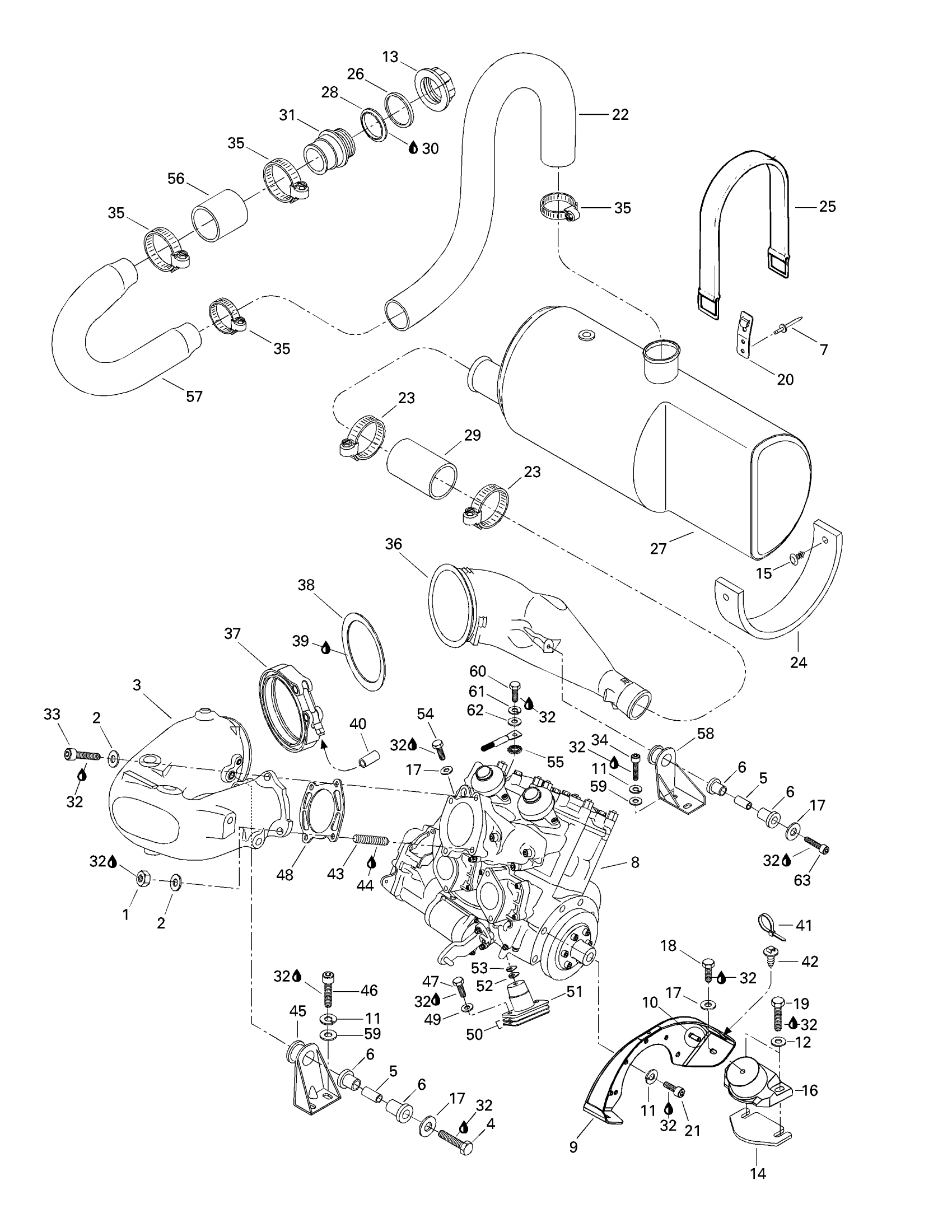

Sea-doo GSX Limited 5625, 1998 Engine Support And Muffler Diagram

#

Description
Price

1

Hex. Flange Nut M10

233101600

Unavailable

2

Flat Washer 10 mm, Stainless

234001600

Unavailable

3

Head Pipe Ass'y

274000401

Unavailable

4

Hex. Screw M8 X 40

207084060

Unavailable

5

Bushing

274000254

Unavailable

6

RUBBER BUSHING - Call your local BRP dealership

293830036

Unavailable

7

Avdel Rivet 3/16"

293150037

$0.47

8

Rotax Engine 947 (Silver)

270000294

Unavailable

9

Engine Support

270000359

Unavailable

10

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

11

Lock Washer 8 mm, Stainless

234181601

Unavailable

12

Stainless, Flat Washer 8 mm

234081600

Unavailable

13

Nut 72 mm

274000224

Unavailable

14

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

15

Black, Dart

293730011

Unavailable

16

Rubber Mount

270000296

Unavailable

17

Flat Washer 8 mm, Stainless

234082600

Unavailable

18

Hex. Screw M8 x 16

215681660

Unavailable

19

Hex. Screw M8 X 40

207184060

Unavailable

20

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

21

Allen Screw M8 x 20

215982060

Unavailable

22

Exhaust Hose

274000525

Unavailable

23

Tridon Clamp

293650064

Unavailable

24

Rubber Pad

293830055

Unavailable

25

Retainer Strap

293850097

Unavailable

26

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

27

Muffler

274000453

Unavailable

28

GASKET - Call your local BRP dealership

293250041

Unavailable

29

EXHAUST HOSE - Call your local BRP dealership

274000530

Unavailable

30

Silicone Sealant 51388, 300 ml

296000309

Unavailable

31

Exhaust Hose, Outlet

274001391

Unavailable

32

Loctite 243, 10 ml

293800060

$20.77

33

Allen Screw M10 x 30

215903060

Unavailable

34

Allen Screw M8 x 20

215982060

Unavailable

35

Tridon Clamp

293650064

Unavailable

36

PIPE-CONE - Call your local BRP dealership

274000507

Unavailable

37

EXHAUST CLAMP - Call your local BRP dealership

274000510

Unavailable

38

SEALING RING - Call your local BRP dealership

274000511

Unavailable

39

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

40

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

41

Tie Wrap 142 mm

293750002

Unavailable

42

Mount Dart

293730040

$0.86

43

Stud M10

211300017

Unavailable

44

Loctite 271, 10 ml

293800005

Unavailable

45

Support Pipe

274000628

Unavailable

46

Allen Screw M8 x 20

215982060

Unavailable

47

Hex. Screw M8 X 40

207184060

Unavailable

48

Gasket

293250080

Unavailable

49

Stainless, Flat Washer 8 mm

234081600

Unavailable

50

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

51

Rubber Mount

270000297

Unavailable

52

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

53

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

54

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

55

External Serrated Lock Washer 6 mm

234461608

Unavailable

56

Exhaust Hose

274000616

Unavailable

57

Muffler (Resonator)

295500682

Unavailable

58

Pipe Support

274000526

Unavailable

59

Flat Washer M8.5 x 18

293050001

Unavailable

60

Hex. Screw M6 X 16

207161660

Unavailable

61

Lock Washer Helical M6

234161601

Unavailable

62

Flat Washer M6, Stainless

234062600

Unavailable

63

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable
