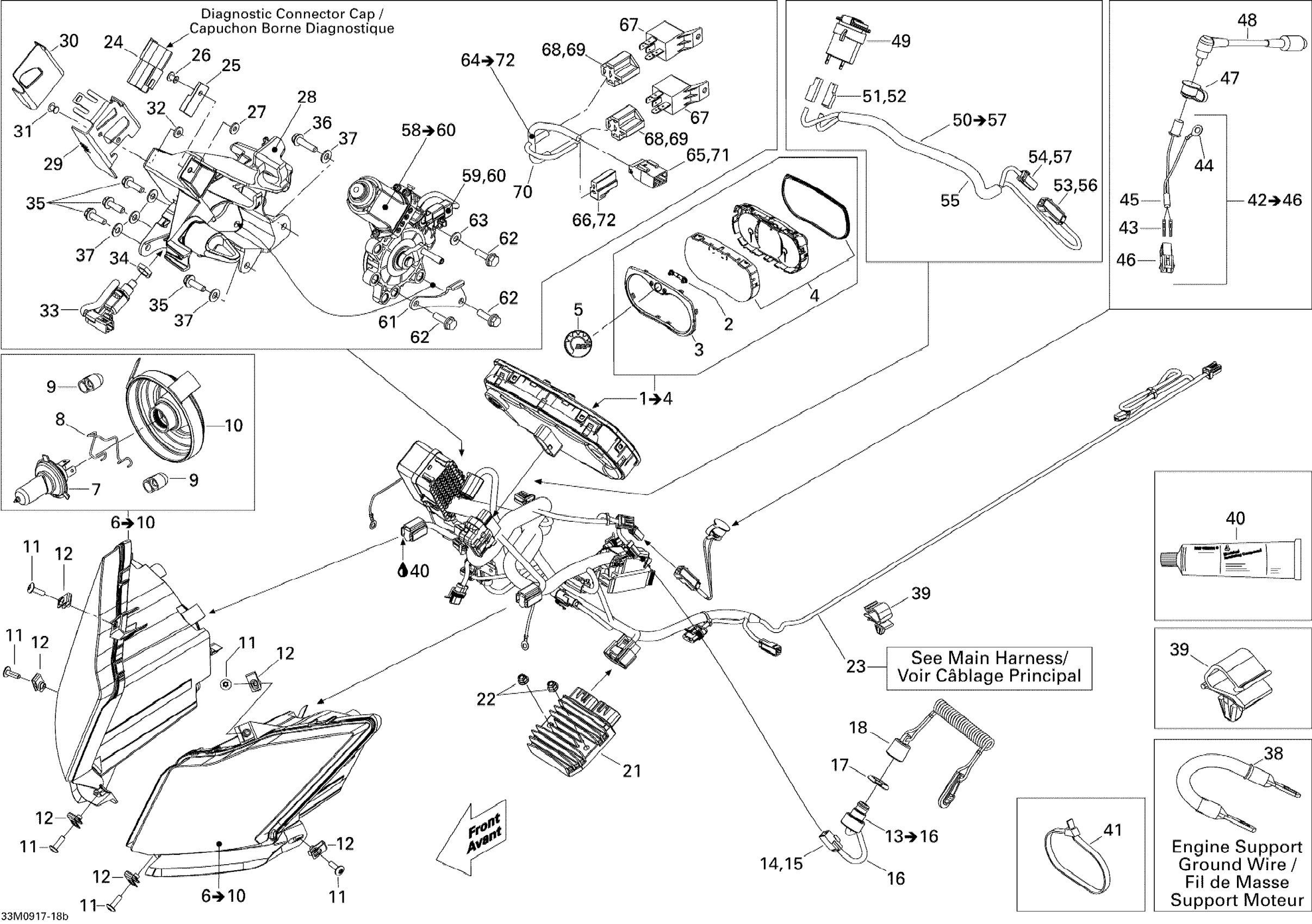

Ski-Doo GSX Limited 1200 4-TEC, 2009 Electrical System Diagram

#

Description
Price

1

Speedometer | Includes 10 to 10c

515177910

$615.35

2

Speedometer Button | XTP

415129355

Unavailable

3

Gauge Ring

415129348

Unavailable

4

Lens | XTP

415129349

Unavailable

5

BRP Logo 20MM x 2MM | XTP

516006224

Unavailable

6

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

Unavailable

6

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

Unavailable

7

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Cap

515176498

Unavailable

10

Rubber Cap Protector

219800280

Unavailable

11

Torx Screw M6 X 20

250000722

Unavailable

12

Panel Nut M6 X 1.0

250100198

Unavailable

13

DESS Switch

515177249

Unavailable

14

Male Terminal

515175232

$1.49

15

Male Housing, 3 Circuits

515175494

$15.35

16

Tubing 12 mm

409902000

Unavailable

17

Safety Nut (DESS Switch)

278002963

$2.72

18

DESS

515178284

Unavailable

21

Voltage Regulator | Package-DPS, Model-Europe

710005569

$85.77

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

23

Main Harness | Includes 1 to 982

515176751

Unavailable

24

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

$10.63

25

Clip

270000141

$8.33

26

Pop Rivet 3/16"

390402200

$0.26

27

Flat Washer M5

234051410

Unavailable

28

PLATE - Call your local BRP dealership

515177044

Unavailable

29

Fuse Support - Call Your Local BRP Dealership

515177549

Unavailable

30

PROTECTOR - Call your local BRP dealership

515176637

Unavailable

31

Pop Rivet 3/16"

390402200

$0.26

32

Flat Washer M5

234051410

Unavailable

33

Switch Ass'y

515176472

$71.51

34

Brass Nut

250000373

Unavailable

35

Hex. Flange Screw M6 X 20

210262040

Unavailable

36

Hex. Flange Screw M6 X 20

210262040

Unavailable

37

Flat Washer

224061121

$0.44

38

Ground Wire

515176358

Unavailable

39

Tie Rap Mount (screwable)

515176795

$5.11

40

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

41

Tie Wrap 94 mm | 4X4

293750001

$0.83

41

Tie Wrap 142 mm

293750002

Unavailable

41

Tie-Rap 180 mm

414115200

$0.09

41

Tie Wrap 368 mm

293750008

$0.85

42

Visor Harness

515177837

$32.28

43

Male Terminal

515175232

$1.49

44

OPEN BARREL - Call your local BRP dealership

515175172

Unavailable

45

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

46

Male Terminal Housing, 2 Circuits

515175654

$7.48

47

Cap

572103300

$9.65

48

Extension

515175851

Unavailable

49

Outlet Power Kit, 12 Volts

861507200

Unavailable

50

Power Outlet Harness - Call Your Local BRP Dealership | Includes 50 to 57

515176527

Unavailable

51

Female Terminal

409010100

$5.46

52

Female Terminal Housing, 1 Circuit

409010400

$7.48

53

Male Terminal

515175232

$1.49

54

Female Terminal

515175231

Unavailable

55

Tubing 6 Mm 3000Mm Long

219704425

$13.14

56

Male Terminal Housing, 2 Circuits

515175654

$7.48

57

Female Housing, 2 Circuits

515175658

Unavailable

58

Motor Ass'y

515176480

Unavailable

59

Not Available As Spare Part - Friction Washer

Unavailable

60

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

61

PLATE - Call your local BRP dealership

515176821

Unavailable

62

Hex. Flange Screw M6 X 20

207662044

Unavailable

63

Flat Washer

224061121

$0.44

64

REVERSE CABLE - Call your local BRP dealership | Includes 3130A to 3130K

515176760

Unavailable

65

Male Terminal

515175232

$1.49

66

Female Terminal

515175282

$6.43

67

Relay | DS 650 X

710010053

Unavailable

68

Female Housing, 5 Circuits

409209900

$8.98

69

Female Terminal

561503100

Unavailable

70

Tubing 10 MM 1000MM Long

219704407

Unavailable

71

Male Terminal Housing, 4 Circuits

515175846

$8.57

72

Female Terminal Housing

515176550

$6.43
