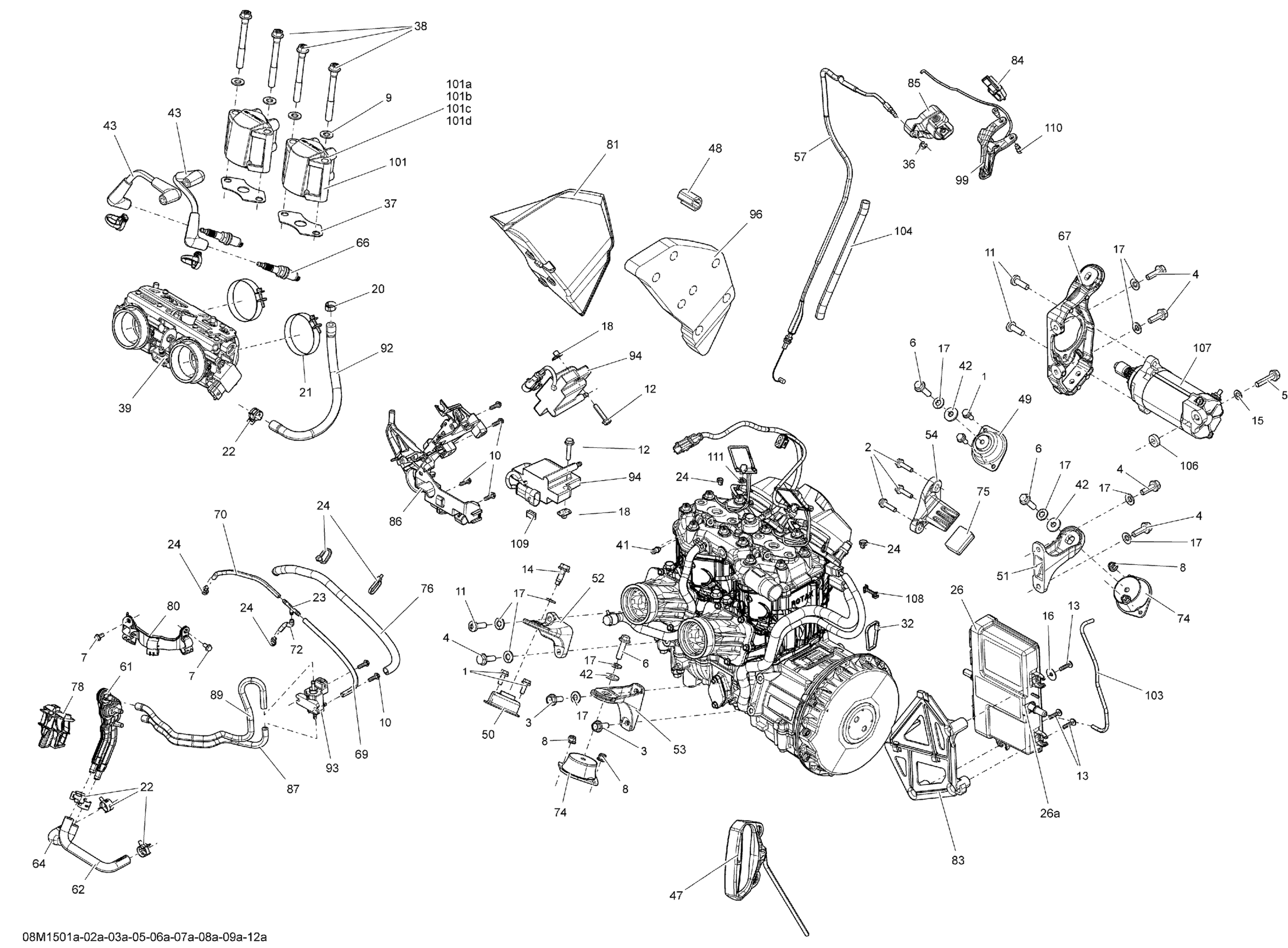

Ski-Doo GSX LE 600HOETEC XS120, 2015 Engine _08M1505 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

2

Hex. Flange Screw M6 X 25

207562544

$1.39

3

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

4

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

5

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.28

6

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

Unavailable

7

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

$1.61

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

9

Flat Washer 10 mm

234001410

Unavailable

10

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

11

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

12

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.18

13

Truss Head Torx Screw K50 X 20

250000297

$1.74

14

Hex. Flange Screw M8 X 1.25 X 25

250000796

$1.74

15

Flat Washer With Teflon 8 mm

250200008

Unavailable

16

Flat Washer

250200040

$1.82

17

Conical Spring Washer M8

250200146

Unavailable

18

Nut Welded, M6

293100003

Unavailable

20

Oetiker Clamp

293650046

Unavailable

21

Gemi Clamp

293650158

$8.34

22

Norma Spring Clamp

293650214

$15.35

23

T-Fitting

293710068

$6.59

24

Tie Wrap 94 mm | 4X4

293750001

$0.83

25

Crimp Clamp

293650234

$5.22

26

Calibrated Module

512060780

$769.99

26a

Calibrated Module

512060780

$769.99

32

Tie Wrap 368 mm

293750008

$0.85

36

Circlip

414274500

Unavailable

37

Gasket

420430930

$4.60

38

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

Unavailable

39

Throttle Body

420889201

$1,228.43

41

Hose Nipple

420924724

Unavailable

42

Yellow, Washer

503183200

Unavailable

43

Ignition Cable, 177mm long

512061126

$27.66

47

Not Available As Spare Parts

XXX

Unavailable

48

Protector

512060313

$9.31

49

Rubber Mount

512060387

$42.28

50

Rubber Mount

512060448

$42.28

51

Front Support, MAG

512060469

$31.51

52

Rear Support, PTO

512060478

$29.97

53

Rear Support, MAG

512060559

$29.97

54

Stopper Support

512060576

$28.43

57

Throttle Cable

512060624

$106.12

61

Manifold

512060692

$43.05

62

RH Formed Hose

512060694

$7.80

64

LH Formed Hose

512060695

$7.80

66

Spark Plug NGK PZFR6F This part replaces 415129375.

415130430

Unavailable

67

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

$76.12

69

Was 420660574 Pressure Hose 280 mm

219704352

Unavailable

70

Was 420660574 Pressure Hose 280 mm

219704352

Unavailable

72

Was 420660574 Pressure Hose 280 mm

219704352

Unavailable

74

Rubber Mount

512060729

$69.97

75

Stopper

512060627

$9.31

76

Was 409901700 Tubing (9 mm)

219704399

Unavailable

78

Manifold Support

512060769

$10.52

80

Hose Support

512060827

$2.06

81

Noise Shield

512060847

$14.54

83

Calibrated Module Support

512060858

$12.52

84

Upper Housing

512060859

Unavailable

85

Lower Housing

512060860

Unavailable

86

Ignition Coils Support

512060888

$10.52

87

Polyurethane Hose 10000Mm Long

219704410

Unavailable

89

Polyurethane Hose 10000Mm Long

219704410

Unavailable

92

Bleeder's Collector Outlet Hose

512060944

Unavailable

93

Solenoid Valve

270600005

$39.62

94

Ignition Coil

512060953

$129.97

96

Inner Acoustic Foam

512060958

$18.43

98

Clamp

512060993

Unavailable

99

Handle Ass'y

512061250

$117.66

101

Fuel Injector | Includes 13 to 16b This part replaces 512060727.

512061233

Unavailable

101a

Crush Ring

415129497

Unavailable

101b

O-Ring

415129498

Unavailable

101c

O-Ring

415129499

Unavailable

101d

Fuel Injector Cover

415129942

$36.89

103

Was 415080100 Fuel Line Primer 3,2mm

219704409

Unavailable

104

Was 409901700 Tubing (9 mm)

219704399

Unavailable

106

Washer

515176500

Unavailable

107

Starter

515178473

$319.49

108

Locker

515177770

$2.14

109

Clip

710000992

$4.00

110

Flange Screw

732601143

$4.02

111

Push Nut

732610072

Unavailable
