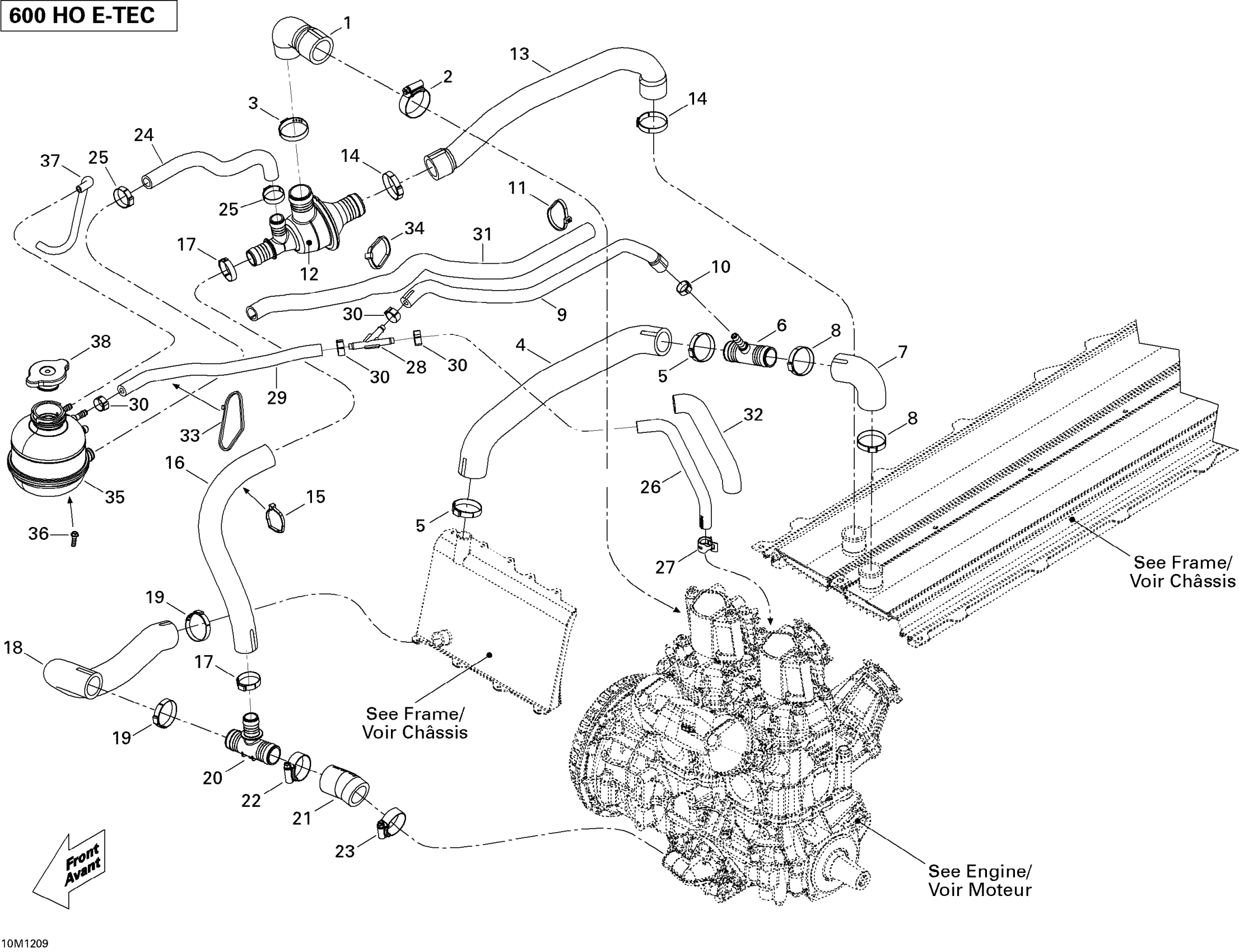

Ski-Doo GSX LE 600HOETEC XP, 2012 Cooling System Diagram

#

Description
Price

1

Engine Outlet Hose

509000678

$18.43

2

Aba Gear Clamp, 26-38 MM

509000443

$5.68

3

Oetiker Gear Clamp, 36.5-706R

509000529

$10.14

4

Radiator Hose

509000670

$34.58

5

Oetiker Gear Clamp, 36.5-706R

509000529

$10.14

6

T-Fitting

509000510

$11.52

7

Radiator Hose This part replaces 509000671.

509001066

$18.43

8

Oetiker Gear Clamp, 36.5-706R

509000529

$10.14

9

Bleeder Hose

509000502

$23.82

10

Crimp Clamp, 15.3-706R

293650047

Unavailable

11

Tie-Rap 180 mm

414115200

$0.09

12

Thermostat Housing

509000499

$39.97

13

Thermostat Outlet Hose

509000679

$25.35

14

Oetiker Gear Clamp, 36.5-706R

509000529

$10.14

15

Tie Wrap 368 mm

293750008

$0.85

16

Bypass Hose

509000672

$24.58

17

Crimp Clamp

293650099

Unavailable

18

Radiator Hose

509000673

$22.28

19

Oetiker Gear Clamp, 36.5-706R

509000529

$10.14

20

T-Fitting

509000372

$7.87

21

Engine Inlet Hose This part replaces 509000675.

509001067

$16.89

22

Aba Gear Clamp, 26-38 MM

509000443

$5.68

23

Aba Gear Clamp, 26-38 MM

509000443

$5.68

24

Filling Hose

509000676

Unavailable

25

Oeticker Gear Clamp, 25.6-706R

509000442

Unavailable

26

BLEEDER HOSE - Call your local BRP dealership

509000741

Unavailable

27

Spring Clamp

293650210

Unavailable

28

Y-Fitting

293710059

Unavailable

29

Was 415129508 Bleeder Hose

219704416

Unavailable

30

Oetiker Clamp

293650046

Unavailable

31

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

32

Protector Tube, 16 mm

513033231

Unavailable

33

Tie Wrap 368 mm

293750008

$0.85

34

Tie-Rap 180 mm

414115200

$0.09

35

Coolant Tank

509000368

$86.89

36

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

37

Was 415110000 Polyurethane Hose 5.2 mm

219704414

Unavailable

38

Radiator Pressure Cap

509000180

Unavailable
