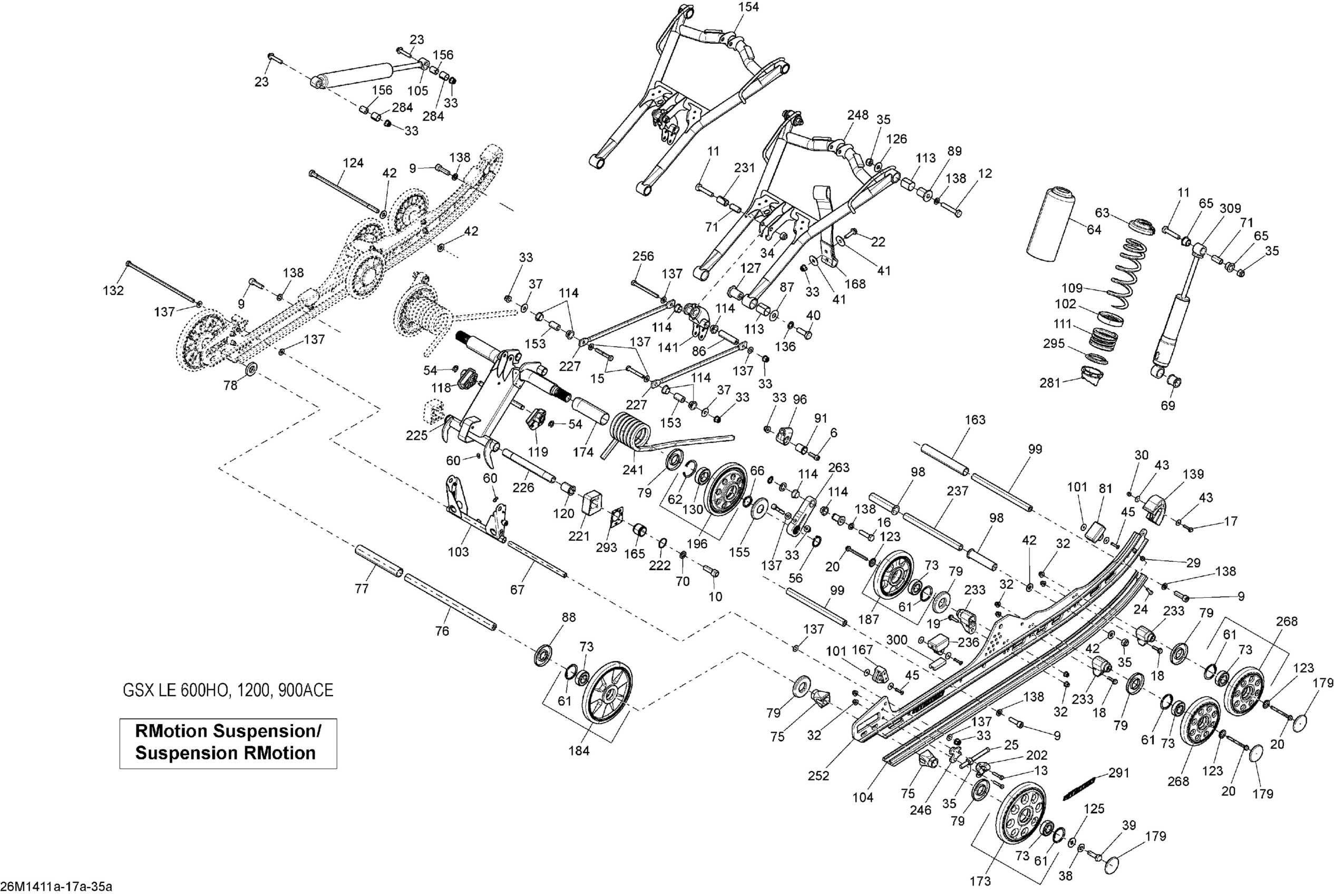

Ski-Doo GSX LE 600HOE XS, 2014 Rear Suspension Diagram
#
6
Socket Screw M8 X 25
205082554
Unavailable
9
Socket Head Screw M10 X 35
205503554
Unavailable
10
Socket Head Screw M12 X 35
205523554
Unavailable
11
Hex. Screw M10 X 1.5 X 50
207005044
Unavailable
17
Hex. Flange Screw M5 X 25
207652544
Unavailable
19
Hex. Flange Screw M6 X 25
207662556
Unavailable
22
Hex. Flange Screw M8 X 30 | DS 650 X
207683044
Unavailable
23
Hex. Flange Screw M8 X 40
207684044
Unavailable
24
Phillips Screw M6 X 25
208562531
Unavailable
29
Elastic Stop Nut M6
232561414
Unavailable
30
Hex. Flange Elastic Nut M5
233251414
Unavailable
32
Hex. Flange Elastic Nut M6
233261466
Unavailable
33
Elastic Flange Nut M8
233281466
Unavailable
35
Elastic Locking Nut M10
233601466
Unavailable
38
Conical Spring Washer M10
250200141
Unavailable
41
Flat Washer 8 mm
250200128
Unavailable
42
Washer
250200138
Unavailable
43
Washer
250200140
Unavailable
54
E-Circlip
293370013
Unavailable
60
Grease Fitting
408200700
Unavailable
61
Retaining Ring
415129371
Unavailable
62
Retaining Ring
415129780
Unavailable
64
Protector
503193663
Unavailable
65
Urethane Bushing
503189117
Unavailable
67
Pivot Arm Axle
503189156
Unavailable
69
Bushing
503189271
Unavailable
70
Washer
503189276
Unavailable
71
Bushing | Includes 240d to 240d1
503189282
Unavailable
73
Ball Bearing | Package-STD
503190396
Unavailable
77
Spacer
503196317
Unavailable
78
Washer
503190432
Unavailable
79
Labyrinth Seal
503190434
Unavailable
81
Rubber Stopper
503190576
Unavailable
87
Washer
503190656
Unavailable
88
Labyrinth Seal
503190682
Unavailable
89
Axle
503190698
Unavailable
91
Spring Support Kit
861805547
Unavailable
96
Spring Support Kit
861805547
Unavailable
98
Center Bushing
503191259
Unavailable
99
Axle Strap
503191260
Unavailable
101
Washer
503191273
Unavailable
102
Spring Spacer
503191281
Unavailable
103
Pivot Arm Ass'y | Included 3000f to 3000f.p
503192823
Unavailable
105
REAR SHOCK HPG - Call your local BRP dealership
503193645
Unavailable
114
Swivel Bushing
503191555
Unavailable
118
LH Cam Adjuster
503191565
Unavailable
119
RH Cam Adjuster
503191566
Unavailable
123
Wheel Cup M6
503191820
Unavailable
124
BOLT M10 X 251MM - Call your local BRP dealership
503191896
Unavailable
125
Washer
503191910
Unavailable
126
Washer
503191926
Unavailable
127
Lower Axle
503191966
Unavailable
130
Ball Bearing
503193548
Unavailable
132
Bolt M8 X 248mm
503192440
Unavailable
136
Washer
503192491
Unavailable
137
Washer
503192494
Unavailable
138
Washer
503192496
Unavailable
139
Slide Protector
503192530
Unavailable
154
Front Arm Ass'y | Included 2000 to 2000g
503194529
Unavailable
156
Axle Shock Absorber
503196509
Unavailable
163
Spacer
503196943
Unavailable
165
Guide Block
503192749
Unavailable
167
Rubber Stopper
503192750
Unavailable
168
Stopper Strap
503192759
Unavailable
173
Black, Wheel Ass'y 180 mm | Included 600 to 600b
503192766
Unavailable
179
Black, Wheel Cap
503192771
Unavailable
184
Black, Wheel Ass'y 180 mm | Includes 670 to 670b
503194050
Unavailable
187
Black, Wheel Ass'y 141 mm | Includes 440 to 440b
503192794
Unavailable
196
Black Wheel Ass'y 155 mm | Included 3070 to 3070b
503192808
Unavailable
221
LH Cam Block
503192918
Unavailable
221
RH Cam Block
503192919
Unavailable
222
O-Ring
503192921
Unavailable
225
Rear Arm Ass'y | Included 3000 to 3000u
503193617
Unavailable
226
Lower Shaft
503192981
Unavailable
227
ROD_LINK - Call your local BRP dealership
503193010
Unavailable
233
Casted Support
503193894
Unavailable
237
Pivot Axle
503193435
Unavailable
241
Black, LH Spring Square
503193158
Unavailable
241
Black, RH Spring Square
503193159
Unavailable
248
Front Arm Ass'y | Included 2000 to 2000g
503194529
Unavailable
252
RAIL_SUSPENSION 120 B-160 - Call your local BRP dealership
503193526
Unavailable
256
Screw M8 X 90
503193372
Unavailable
268
Black, Wheel Ass'y 141 mm | Included 440 to 440b
503193477
Unavailable
281
Adjustment Cam
505073625
Unavailable
284
Leg Cushion
505072663
Unavailable
295
Spring Guide
503191872
Unavailable
