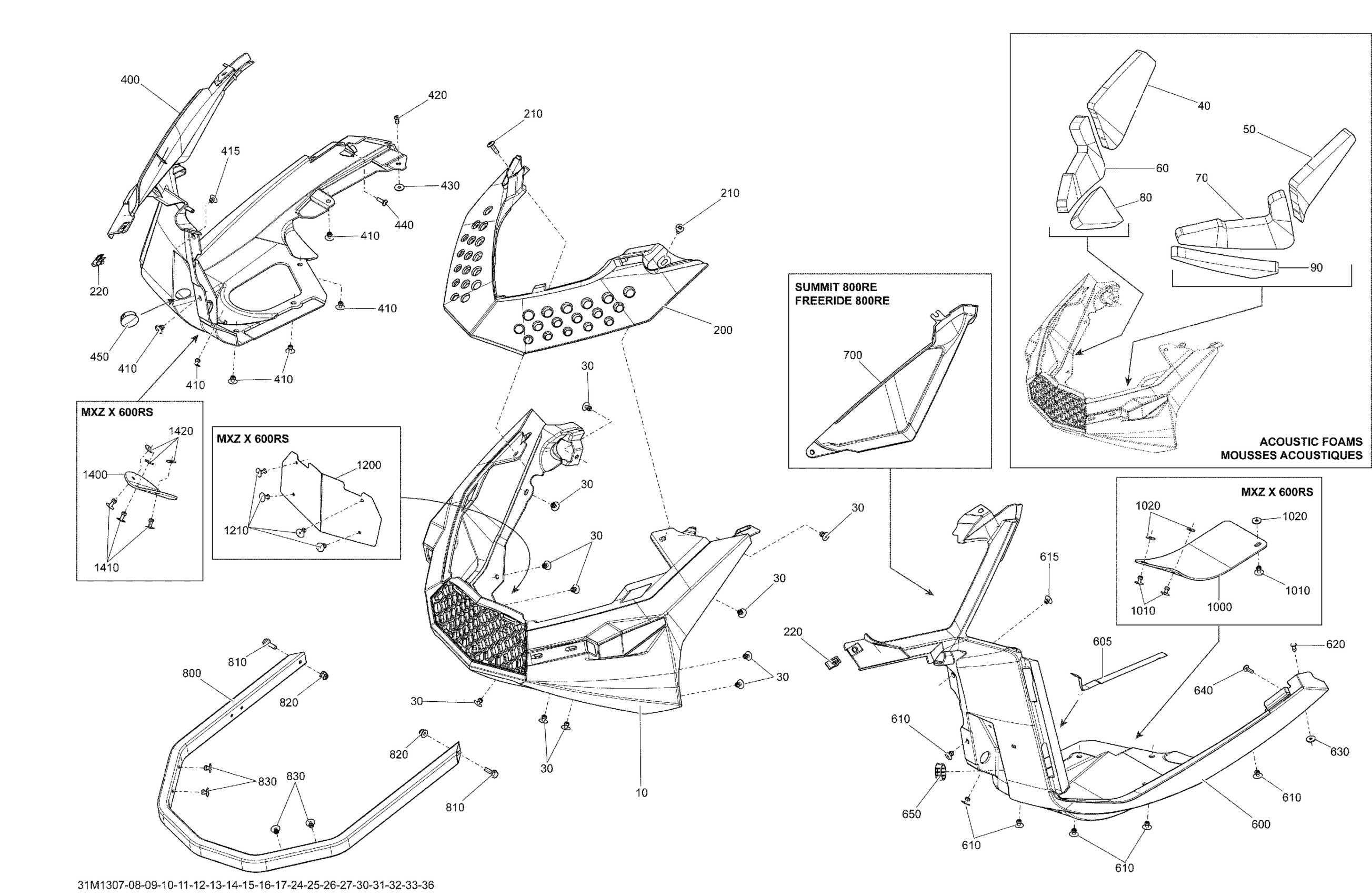

Ski-Doo GSX LE 600HOE XP, 2013 Bottom Pan Diagram

#

Description
Price

10

Black, Front Bottom Pan

502006971

$106.12

30

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

40

RH Foam Upper

502007210

$13.85

50

LH Foam Upper

502007211

$15.03

60

RH Middle Foam

502007212

$18.43

70

LH Middle Foam

502007213

$18.43

80

RH Lower Foam

502007214

$13.85

90

LH Lower Foam

502007215

$13.85

200

Deep Black Bottom Pan Cap

502007068

$65.35

210

Torx Screw M6 X 20

250000722

Unavailable

220

Panel Nut M6 X 1.0

250100198

Unavailable

400

Black, RH Bottom Pan

502006831

$72.28

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

415

Pop Rivet 3/16"

293150103

Unavailable

420

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

430

Washer

517124300

Unavailable

440

Torx Screw K50 X 16

250000720

$1.39

450

Black, Nylon Cap

414916600

$4.32

600

Black, LH Bottom Pan

502007252

$81.51

605

Gasket, Neoprene 2000Mm Long

219704476

Unavailable

610

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

615

Pop Rivet 3/16"

293150103

Unavailable

620

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

630

Washer

517124300

Unavailable

640

Torx Screw K50 X 16

250000720

$1.39

650

Black, Nylon Cap

414916600

$4.32

700

Not Available As Spare Parts

XXX

Unavailable

800

Black Front Bumper

502007116

$76.89

810

Hex. Flange Screw M6 X 20

207662044

Unavailable

820

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

830

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

1000

Not Available As Spare Parts

XXX

Unavailable

1010

Not Available As Spare Parts

XXX

Unavailable

1020

Not Available As Spare Parts

XXX

Unavailable

1200

Not Available As Spare Parts

XXX

Unavailable

1210

Not Available As Spare Parts

XXX

Unavailable

1400

Not Available As Spare Parts

XXX

Unavailable

1410

Not Available As Spare Parts

XXX

Unavailable

1420

Not Available As Spare Parts

XXX

Unavailable
