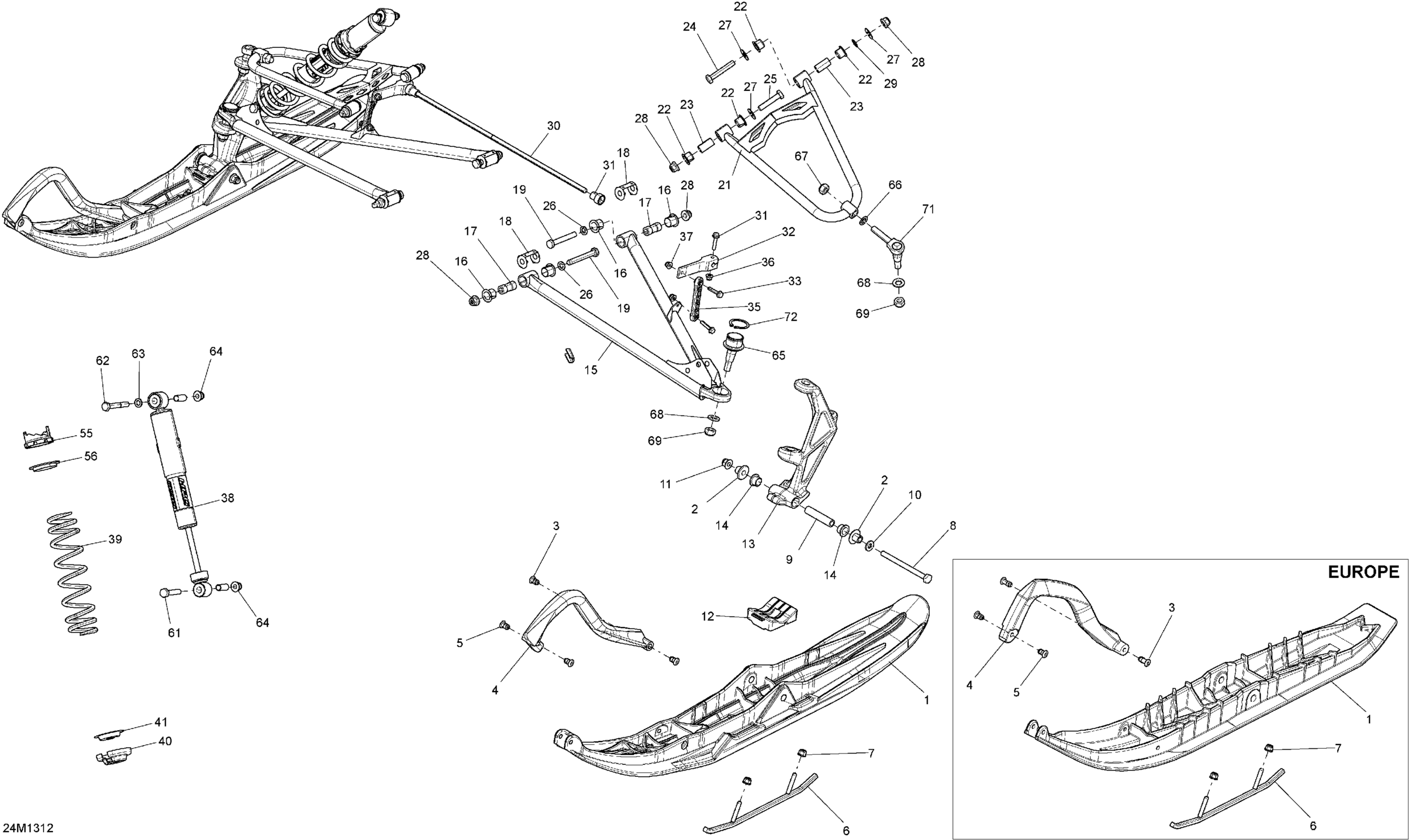

Ski-Doo GSX LE 600HOE XP, 2013 Front Suspension And Ski Diagram

#

Description
Price

1

Deep Black, RH Pilot 5.7 Ski

505072855

Unavailable

1

Deep Black, LH Pilot 5.7 Ski

505072854

Unavailable

1

Black Pilot Ski Ass'y | Includes 1 To 2

505073100

Unavailable

2

Ski Bushing

505071781

Unavailable

3

Retainer 17mm long

505071812

$4.43

4

Yellow Handle | Model-MX-Z TNT

505070917

Unavailable

4

Yellow Handle

505073107

Unavailable

5

Retainer 23mm Long

505072133

$5.03

6

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

Unavailable

7

Hex. Flange Elastic Nut M8

233281414

Unavailable

8

Hex. Screw M10 X 130 | Model-RT STD

250000703

Unavailable

9

Spacer

506133300

Unavailable

10

Washer

503192496

Unavailable

11

Hex. Flange Elastic M10 x 1.5

233201464

Unavailable

12

Ski Stopper

505072594

Unavailable

13

Clear, LH Ski Leg

505073007

$233.05

13

Clear, RH Ski Leg

505073008

$226.89

14

Leg Bushing

505072690

Unavailable

15

FULL MOON RH LOWER ARM - Call your local BRP dealership

505072676

Unavailable

15

FULL MOON LH LOWER ARM - Call your local BRP dealership

505072677

Unavailable

16

Bushing

505072208

Unavailable

17

Sleeve

505072209

Unavailable

18

Wear Plate

505072634

Unavailable

19

Screw Hex. M10 X 70

250001024

Unavailable

21

UPPER ARM - Call your local BRP dealership | LE

505072389

Unavailable

22

Bushing

505072250

Unavailable

23

Sleeve

505072143

Unavailable

24

Screw Hex. M10 X 60

250001023

Unavailable

25

Screw Hex. M10 X 50

250001022

$1.42

26

Washer

503189564

Unavailable

27

Washer

505072392

Unavailable

28

Hex. Flange Elastic Nut M10

250100165

Unavailable

29

O-Ring

505072448

Unavailable

30

Stabilisator

505072602

$71.99

31

Bushing

505072064

Unavailable

32

Stabilisator Lever

505072394

$16.12

33

Hex. Flange Screw M6 X 1.0 X 30

207663056

Unavailable

34

Hex. Flange Elastic Nut M6

233261466

Unavailable

35

Sway Bar Double Joint Link

505072204

Unavailable

36

Hex. Flange Screw M6 X 1.0 X 30

207663056

Unavailable

37

Hex. Flange Elastic Nut M6

233261466

Unavailable

38

Front Shock

505073235

Unavailable

39

Deep Black, Spring

505072119

$59.97

40

Spring Stopper

706200881

$10.30

41

Cap

706200785

Unavailable

55

Adjustment Cam

505073625

Unavailable

56

Spring Guide

503187500

Unavailable

57

Shock Decal "HPG" | Europe Models

516005533

Unavailable

61

Hex Screw M10 X 1.5 X 55

207005554

$6.18

62

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

63

Washer

503189564

Unavailable

64

Hex. Flange Elastic M10 x 1.5

233201464

Unavailable

65

Ball Joint

505073636

$49.97

66

Washer

503189276

Unavailable

67

Hex. Elastic Hex. Nut M12

250100089

$0.39

68

Washer

503192491

Unavailable

69

Hex Elastic Nut M12 X 1.25

232521464

Unavailable

71

Upper Ball Joint

505072257

$16.89

72

Circlip

293370035

$2.55
