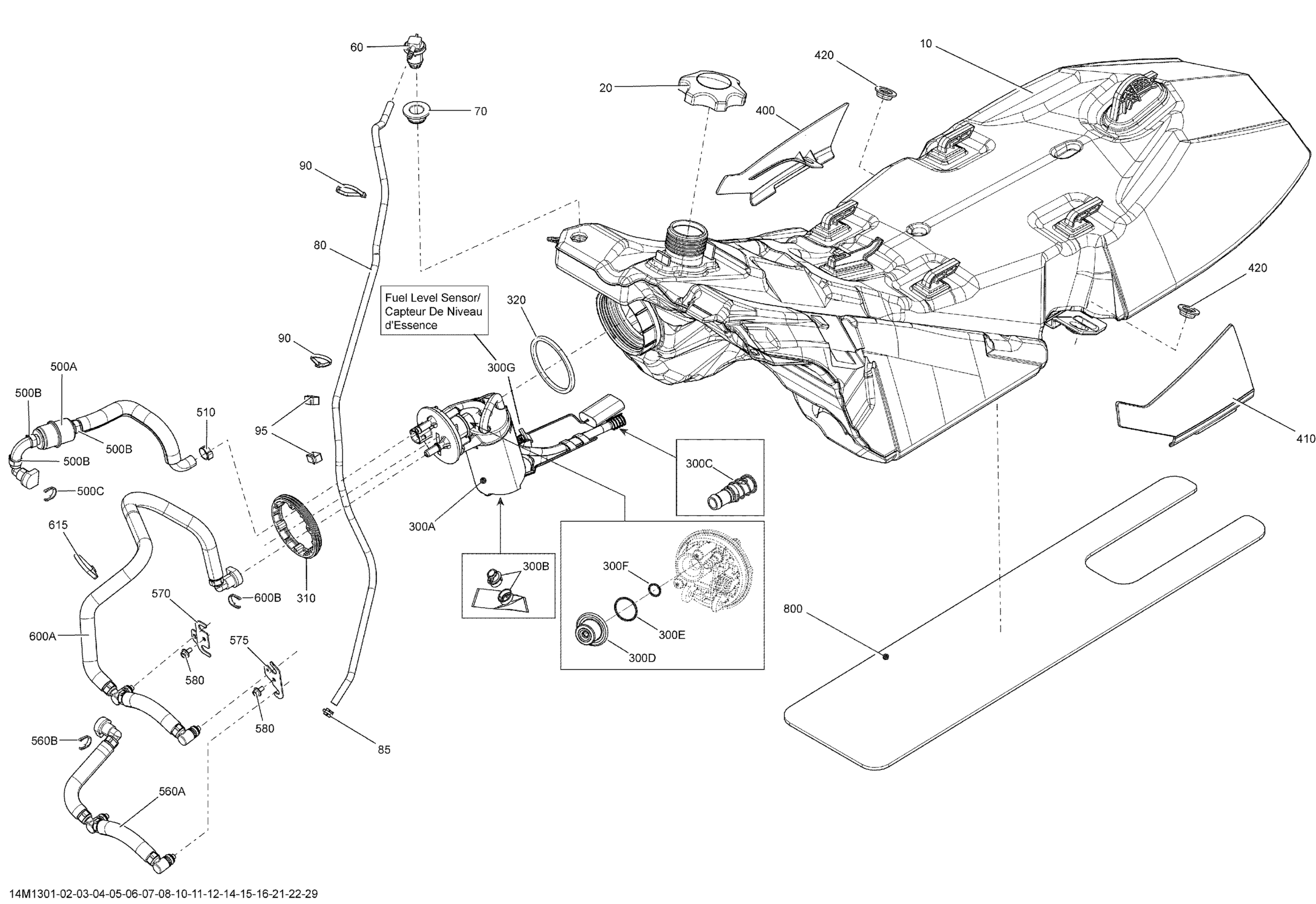

Ski-Doo GSX LE 600HOE XP, 2013 Fuel System Diagram
#
Description
Price
80
Polyurethane Hose 10000Mm Long
219704410
Unavailable
95
Not Available As Spare Parts
XXX
Unavailable
300A
PUMP FUEL | Includes 300 to 300f This part replaces 513033837.
513034258
Unavailable
300D
Regulator
415129821
Unavailable
300E
O-Ring
415129822
Unavailable
300F
O-Ring
415129823
Unavailable
400
RH Cap
513033418
Unavailable
410
LH Cap
513033419
Unavailable
510
Crimp Clamp
293650053
Unavailable
580
Hex. Flange Screw M5 X 10
207551044
Unavailable
600A
Fuel Hose Ass'y
513033648
Unavailable
