Description

Price

1

FRAME WIRING HARNESS - Call your local BRP dealership | Includes 1 to 900

515176425

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

34

Female Terminal

409010100

$5.46

36

Female Terminal Housing, 1 Circuit

409010400

$7.48

42

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

44

Female Terminal

515175231

$4.12

46

Female Terminal

515175282

$6.43

54

Female Housing, 3 Circuits

515175495

$15.35

57

Female Terminal Housing, 13 Circuits

515175350

$12.88

62

Female Terminal

278001014

$2.72

68

Female Housing, 2 Circuits

409209500

$13.48

70

Female Housing, 4 Circuits

409209700

$12.97

73

Wire Seal

278001013

$2.72

104

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

$8.77

110

Male Terminal

278000631

$4.12

127

Male Lock, 3 Circuits

409207600

$3.02

172

Female Terminal

561503100

Unavailable

173

Female Terminal

561503100

Unavailable

192

Fuse, 20 Amperes

409003900

$3.22

206

Female Terminal

409004200

$4.42

222

Female Housing

409204300

Unavailable

223

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

225

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

248

Fuse Holder

409004000

$7.00

251

CLIP - Call your local BRP dealership

409014200

$4.23

253

Tubing 6 Mm 3000Mm Long

219704425

$13.14

254

Was 409901700 Tubing (9 mm)

219704399

$79.97

255

Was 409901800 Tubing (13 mm)

219704400

$9.40

256

Tubing 16 Mm 1000Mm Long

219704408

$6.23

257

Was 409901600 Tubing 19mm

219704398

$89.97

258

Tubing 10 MM 1000MM Long

219704407

$2.20

302

Tie Wrap 94 mm | 4X4

293750001

$0.83

307

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

$4.77

308

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

$4.77

319

Male Terminal

515175568

$7.48

320

Female Terminal

515175567

$6.03

341

Not Available As Spare Part - Friction Washer

Unavailable

346

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

$2.86

351

Female Lock, 4 Circuits

278001474

$3.02

355

Female Housing, 2 Circuits

515175658

$15.35

359

Male Housing

515175666

$13.05

387

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

409

Plug

515175812

$1.70

410

Female Housing, 24 Circuits

515175801

$9.00

411

Retainer Block

515175802

$10.66

412

Wire Seal

515175803

$2.41

413

BLOCK - Call your local BRP dealership

515175804

$6.66

415

Female Terminal

515175806

$0.81

420

Tie-Rap 180 mm

414115200

$0.09

593

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515176069

$3.17

686

CAPACITOR - Call your local BRP dealership

515176279

$6.31

689

RESISTANCE - Call your local BRP dealership

515176280

$6.31

691

MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership

278002027

$12.65

692

Female Terminal Housing, 4 Circuits

278002028

Unavailable

699

Ring Terminal

515176287

Unavailable

713

Female Terminal Housing, 2 Circuits

515176296

$5.11

900

Hose

415079200

Unavailable

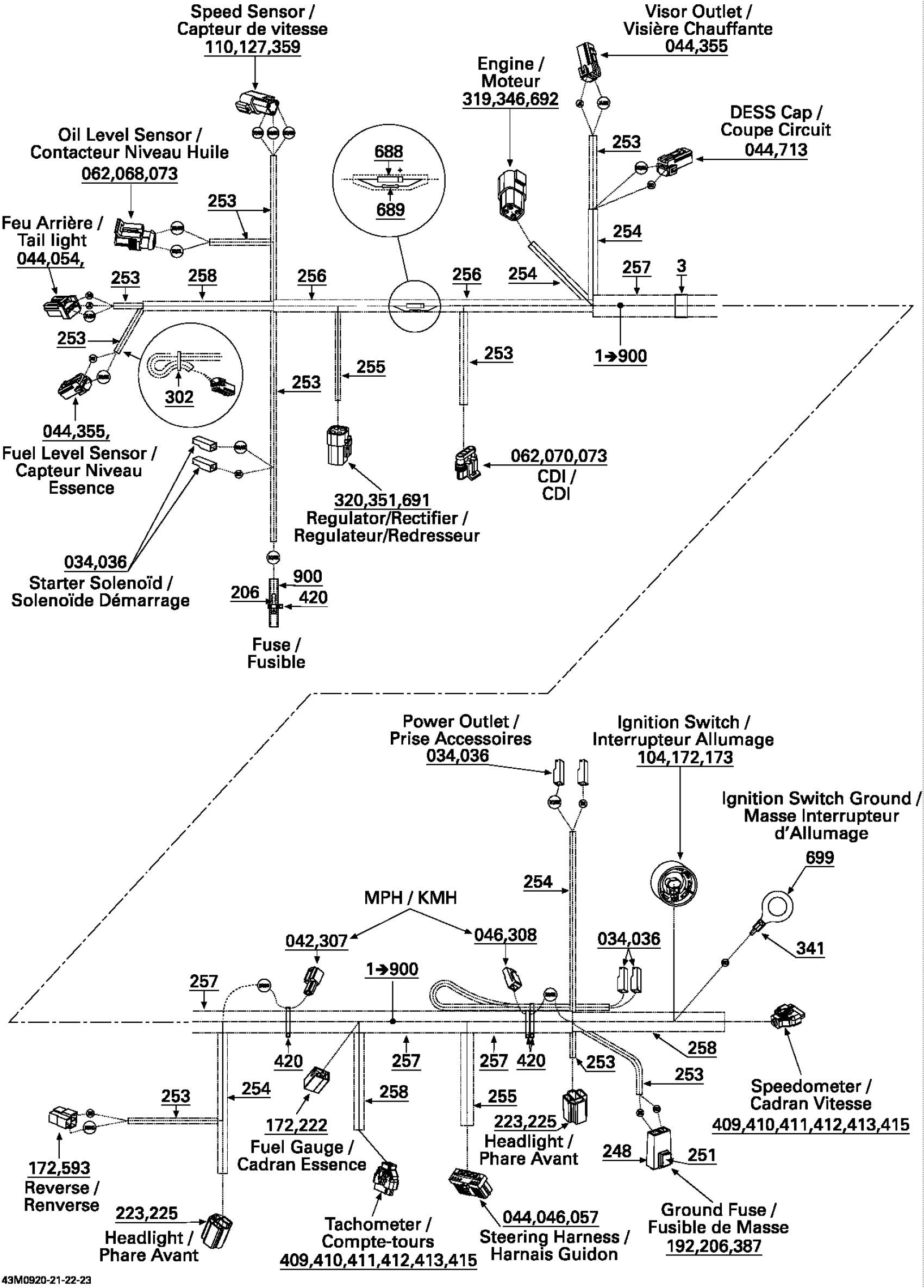

Ski-Doo GSX Fan, 2009 Electrical Harness Diagram

FRAME WIRING HARNESS - Call your local BRP dealership | Includes 1 to 900

Not Available As Spare Part - Friction Washer

MALE TERMINAL - Call your local BRP dealership

Female Terminal

Female Terminal

Female Housing

FEMALE TERMINAL - Call your local BRP dealership

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

Not Available As Spare Part - Friction Washer

Female Terminal Housing, 4 Circuits

Ring Terminal

Hose
