Description

Price

1

HOOD LATCH - Call your local BRP dealership

517302616

$26.12

2

HIGH WINDSHIELD - Call your local BRP dealership

517303509

Unavailable

3

Knob

517303439

$3.73

4

Washer M5

250200025

$0.61

5

Rubber Washer 5 mm

250200024

$1.77

6

Torx Screw K50 X 16

250000720

$1.39

7

Torx Screw M5 X 14

250000742

$1.20

8

Knob

517245800

$10.83

9

WINDSHIELD SUPPORT - Call your local BRP dealership

517303197

$9.26

10

CONSOLE CAP - Call your local BRP dealership

517302592

$9.22

11

CENTER CONSOLE, BLACK - Call your local BRP dealership | Includes 11 to 12

517303381

$129.97

12

T-NUT, M4 - Call your local BRP dealership

250100030

$6.31

13

Torx Screw M6 X 20

250000722

$1.34

14

CONSOLE NUT - Call your local BRP dealership

517302575

$7.66

15

INDICATOR SUPPORT - Call your local BRP dealership

517303631

$27.66

16

Grommet

517302841

$2.22

17

Torx Screw M4 X 8

250000127

$1.09

18

Torx Screw M5 X 20

250000724

$1.39

19

Panel Nut M5 X 0.8

250000958

$3.48

20

RH AIR DEFLECTOR - Call your local BRP dealership

517303413

$16.89

21

LH AIR DEFLECTOR - Call your local BRP dealership

517303414

$16.89

22

Torx-Truss Pt K40 X 16

250000759

$1.74

23

RH MIRROR ASS'Y - Call your local BRP dealership

517303629

$42.28

24

LH MIRROR ASS'Y - Call your local BRP dealership

517303630

$43.82

25

Screw M4 X 16

250000725

$2.87

26

Flat Washer 4 mm, Stainless

234042600

$0.92

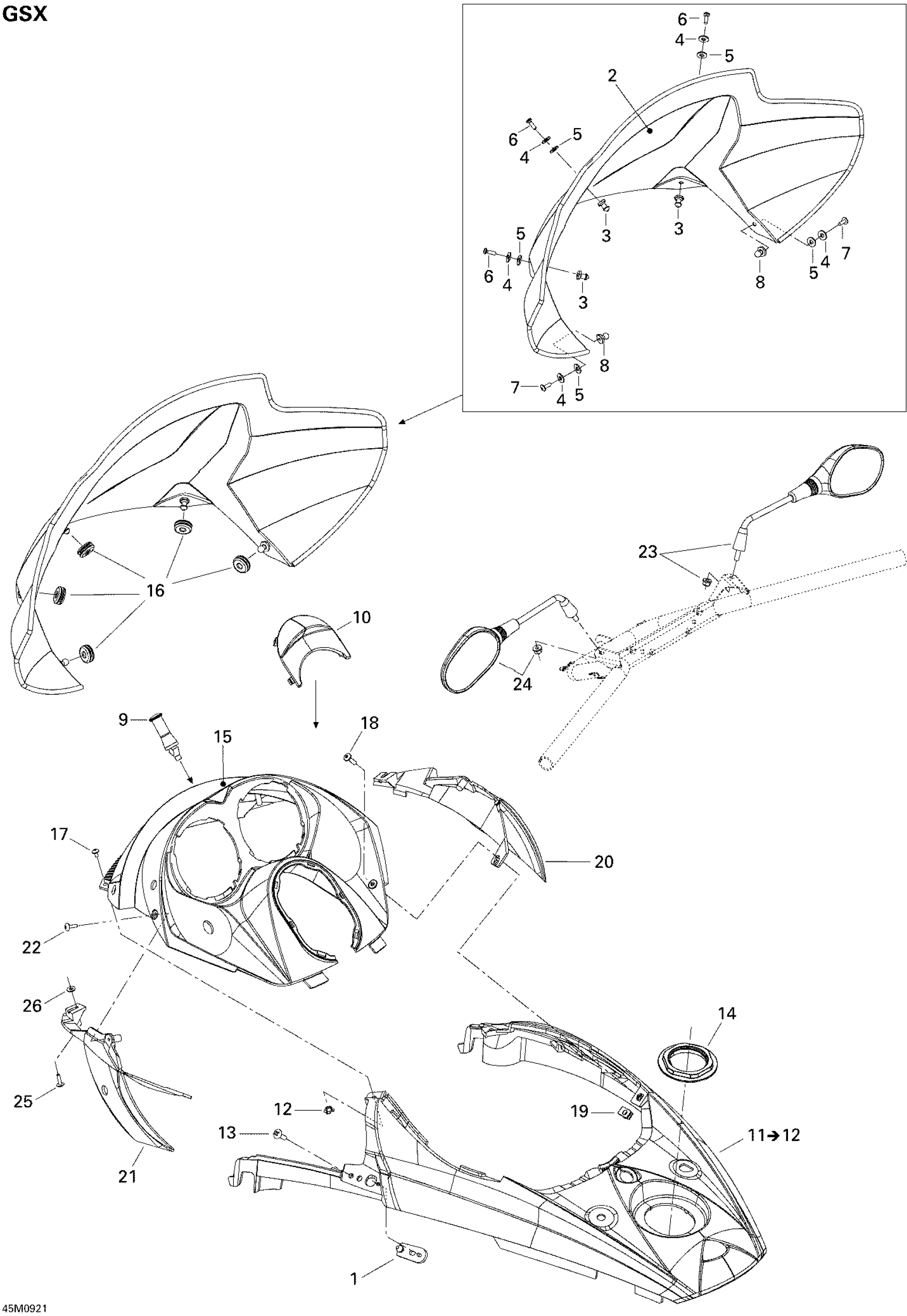

Ski-Doo GSX Fan, 2009 Windshield And Console Diagram

HIGH WINDSHIELD - Call your local BRP dealership
