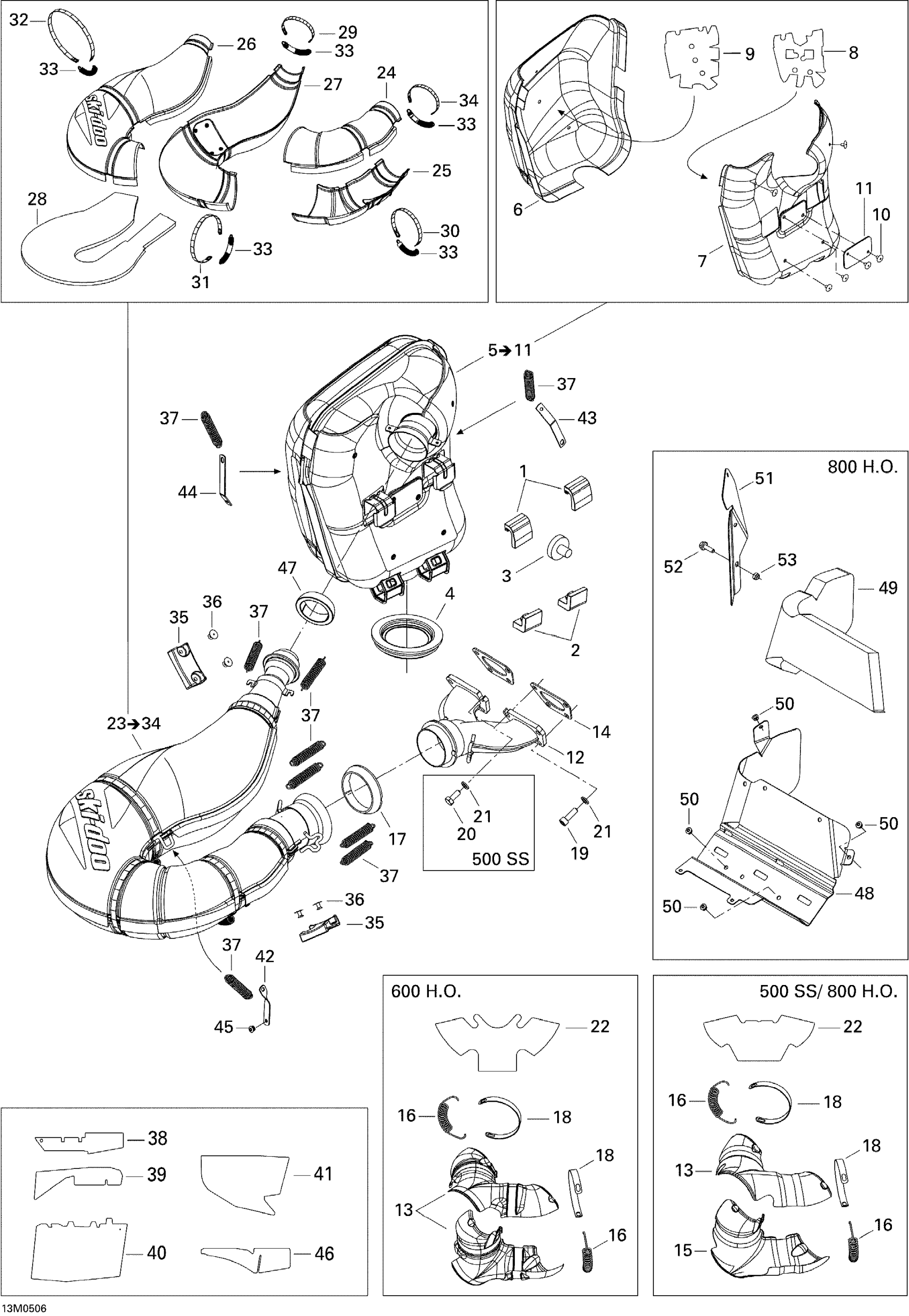

Ski-Doo GSX 800 HO, 2005 Exhaust System, 800HO Diagram

#

Description
Price

1

UPPER STOPPER - Call your local BRP dealership

514053372

$13.95

2

Lower Stopper

514053373

Unavailable

3

Rubber Bumper

514053654

$49.20

4

Exhaust Grommet

514053394

Unavailable

5

Muffler Ass'y | 800 HO, Includes 5 To 11

514053746

Unavailable

6

RH Heat Shield

514053563

Unavailable

7

LH Heat Shield

514053585

Unavailable

8

LH INSULATING WOOL - Call your local BRP dealership

514053590

$12.28

9

RH INSULATING WOOL - Call your local BRP dealership

514053589

$13.82

10

Pop Rivet 3/16”

390910000

$0.48

11

Reinforcement

514053429

Unavailable

12

EXHAUST MANIFOLD - Call your local BRP dealership

420973713

$244.58

13

UPPER ENVELOPPE, EXHAUST MANIFOLD - Call your local BRP dealership

514053831

$12.28

14

Gasket

420931850

Unavailable

15

LOWER ENVELOPPE, EXHAUST MANIFOLD - Call your local BRP dealership

514053830

$11.51

16

Spring

514053643

$6.20

17

Exhaust Gasket

514053487

Unavailable

18

RETAINING STRAP - Call your local BRP dealership

514053603

$7.66

19

Socket Head Screw Scotch Grip M6 X 20

250001077

Unavailable

20

Not Available As Spare Parts

XXX

Unavailable

21

Washer

514053953

$0.75

22

Insulating Wool

514053284

Unavailable

23

TUNED PIPE ASS'Y - Call your local BRP dealership | Includes 23 to 34

514053749

$626.89

24

Upper Front Half Envelope

514053609

Unavailable

25

Lower Front Half Envelope

514053610

Unavailable

26

UPPER REAR HALF ENVELOPE - Call your local BRP dealership

514053612

Unavailable

27

LOWER REAR HALF ENVELOPE - Call your local BRP dealership

514053613

$36.89

28

INSULATING WOOL - Call your local BRP dealership

514053584

$14.88

29

RETAINING STRAP - Call your local BRP dealership

514053437

$7.66

30

RETAINING STRAP - Call your local BRP dealership

514053500

$7.66

31

RETAINING STRAP - Call your local BRP dealership

514053534

$9.20

32

RETAINING STRAP - Call your local BRP dealership

514053535

$9.20

33

Spring

514053643

$6.20

34

Retaining Strap

514053536

$12.58

35

BUMPER - Call your local BRP dealership

514053352

$14.58

36

Pop Rivet 3/16"

293150103

Unavailable

37

Spring

415107100

$6.20

38

REFLECTIVE SHEET - Call your local BRP dealership

514053560

$9.20

39

Reflective Sheet

514053622

Unavailable

40

REFLECTIVE SHEET - Call your local BRP dealership

514053954

$12.28

41

REFLECTIVE SHEET - Call your local BRP dealership

514053562

$9.20

42

SPRING BRACKET - Call your local BRP dealership

514053955

$6.89

43

SPRING BRACKET - Call your local BRP dealership

514053725

$6.18

44

Spring Bracket

514053393

$11.58

45

Avex Rivet

390909200

Unavailable

46

REFLECTIVE SHEET - Call your local BRP dealership

514053673

$7.66

47

Exhaust Gasket

514053812

$25.35

48

ACOUSTIC PLATE - Call your local BRP dealership

514053956

Unavailable

49

ACOUSTIC FOAM - Call your local BRP dealership

514053967

Unavailable

50

Pop Rivet 3/16"

390402200

$0.26

51

HEAT DEFLECTOR - Call your local BRP dealership

514053876

$9.20

52

Hex. Flange Screw M6 X 20

207662044

Unavailable

53

Elastic Stop Nut M6

232561414

Unavailable
