2005 Ski-Doo GSX 600 Ho Sdi Engine And Engine Support Diagram

← All diagrams

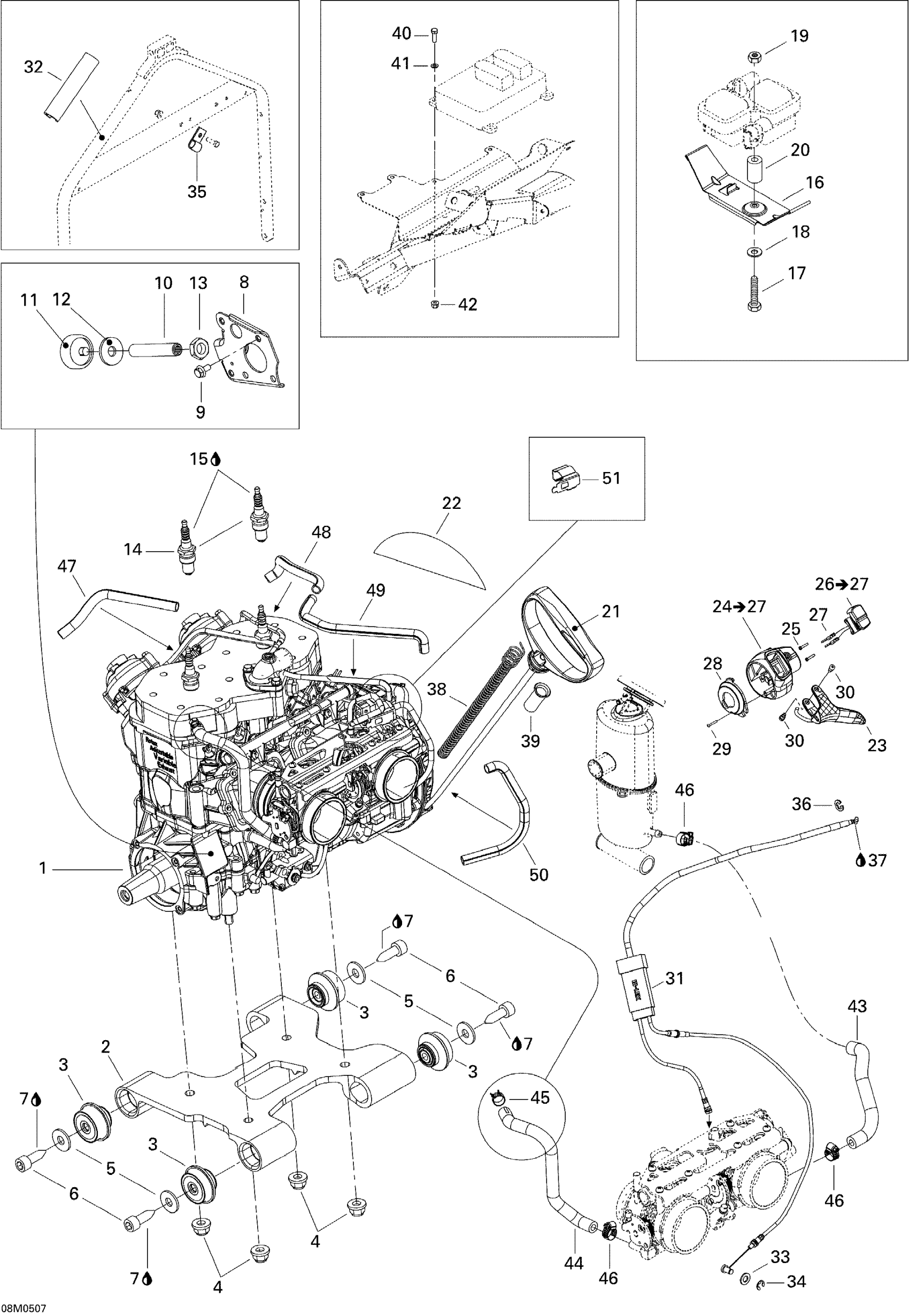

Find the part on the Engine And Engine Support diagram for your 2005 Ski-Doo GSX 600 Ho Sdi, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Ski-Doo GSX 600 Ho Sdi Engine And Engine Support Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Engine 593 HO SDI Rer

400509758

—
Out of stock

2

Engine Support

512059754

—
Out of stock

3

Rubber Mount

512059691

4
Out of stock

4

Hex. Flange Elastic Nut M10

233201414

4
Out of stock

5

Flat Washer M10 | 4X4

250200014

4
Out of stock

6

Screw M10 X 30

250000094

4
Out of stock

7

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

—
Out of stock

8

PLATE - Call your local BRP dealership

512059840

—
Out of stock

9

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

1
Out of stock

10

STOPPER SCREW - Call your local BRP dealership

250500007

—
Out of stock

11

STOPPER - Call your local BRP dealership

512059610

—
Out of stock

12

WASHER - Call your local BRP dealership

512059057

—
Out of stock

13

Hex. Jam Nut M14

232170411

1
Out of stock

14

Spark Plug NGK BR9ECS

415128524

2
Out of stock

15

Was 293550004 Dielectric Grease, 150 g

219704453

1
Out of stock

16

COIL SUPPORT - Call your local BRP dealership

512059865

—
Out of stock

17

Hex. Screw M6 X 45

207064544

1
Out of stock

18

Flat Washer 6 mm

234061410

1
Out of stock

19

Elastic Stop Nut M6

232561414

1
Out of stock

20

SPACER - Call your local BRP dealership

512059812

—
Out of stock

21

Starter Grip

572084400

1
Out of stock

22

REFLECTIVE SHEET - Call your local BRP dealership

512059893

—
Out of stock

23

Throttle Handle Ass'y | Includes 13 to 14

512060484

1
Out of stock

24

Housing Throttle Ass'y | Includes 25 to 27

512060121

1
Out of stock

25

PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership

250000098

—
Out of stock

26

Housing Throttle Ass'y | Includes 25 to 27

512060121

1
Out of stock

27

Male Terminal

515175232

2
Out of stock

28

COVER - Call your local BRP dealership

512059698

—
Out of stock

29

PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership

250000098

—
Out of stock

30

Flange Screw

732601143

2
Out of stock

31

Throttle Cable

512059765

—
Out of stock

32

PROTECTOR - Call your local BRP dealership

512059750

—
Out of stock

33

Flat Washer 8 mm, Nylon

234081100

1
Out of stock

34

Circlip

414753500

1
Out of stock

35

Open Clamp

414176000

1
Out of stock

36

Circlip

414274500

1
Out of stock

37

Was 293550004 Dielectric Grease, 150 g

219704453

1
Out of stock

38

ROPE GUIDE - Call your local BRP dealership

512059535

—
Out of stock

39

TUBE - Call your local BRP dealership

512059536

—
Out of stock

40

Hex. Screw M5 X 20

207152044

2
Out of stock

41

Flat Washer M5

234051410

2
Out of stock

42

Hex. Flange Elastic Nut M5

233251414

2
Out of stock

43

FORMED HOSE - Call your local BRP dealership

512059563

—
Out of stock

44

HOSE-FORMED - Call your local BRP dealership This part replaces 512059990.

605354601

—
Out of stock

45

Universal Spring Clamp

513033029

1
Out of stock

46

Tridon Gear Clamp

293650170

3
Out of stock

47

Was 409901700 Tubing (9 mm)

219704399

1
Out of stock

48

Was 409901700 Tubing (9 mm)

219704399

1
Out of stock

49

Was 409901700 Tubing (9 mm)

219704399

1
Out of stock

50

Was 409901700 Tubing (9 mm)

219704399

1
Out of stock

51

Heating Element Bracket

512059809

—
Out of stock
