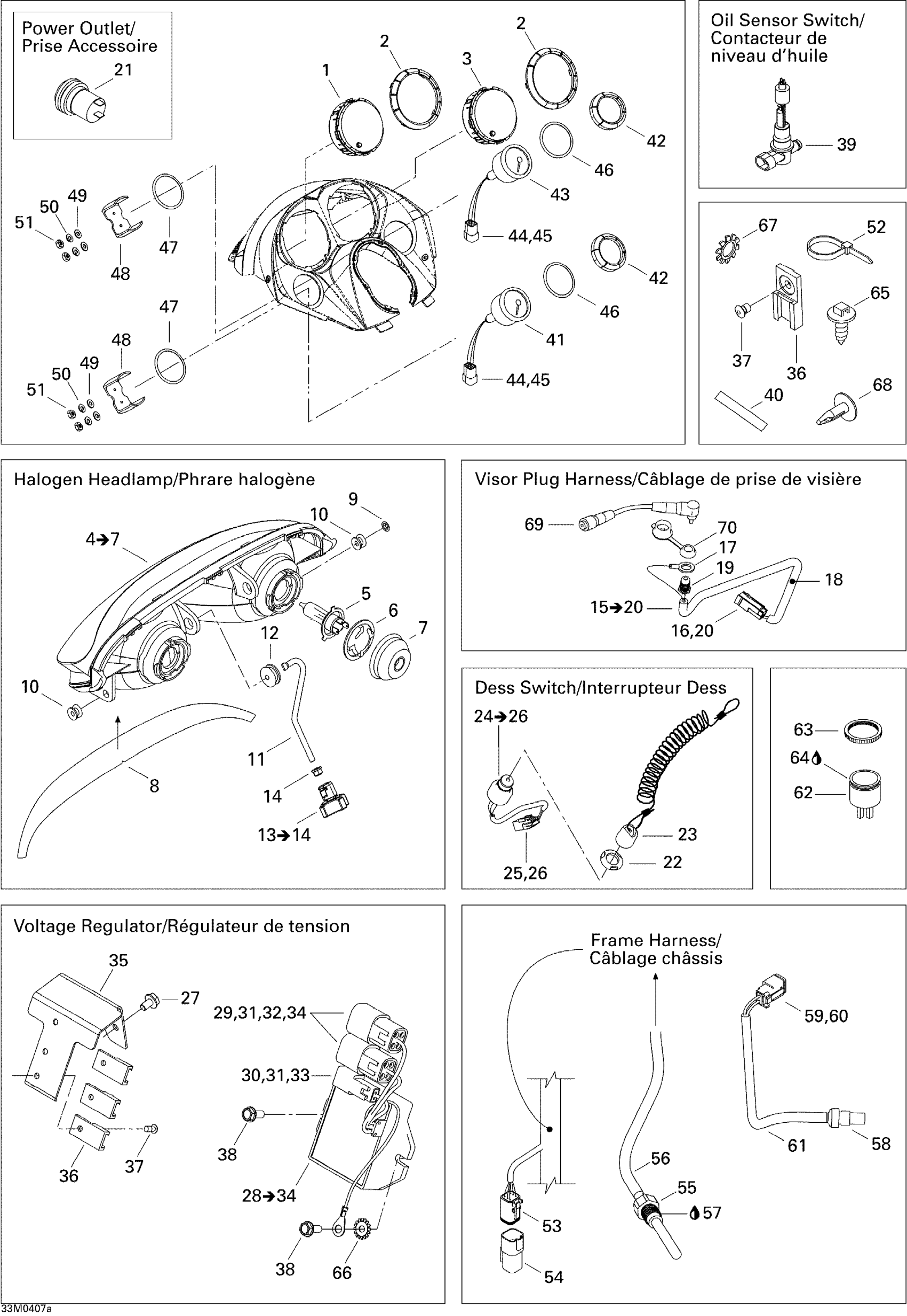

Ski-Doo GSX 600 HO SDI, 2004 Electrical System Diagram
#
1
Speedometer
515176074
Unavailable
2
Gauge Ring This part replaces 515176242.
515179005
Unavailable
3
Tachometer
515176072
Unavailable
4
Halogen Headlamp Ass'y | Includes 4 to 7
515176311
Unavailable
5
Halogen Bulb, 60/55 W, 12 V ( H4 )
515176274
Unavailable
6
BULB HOLDER - Call your local BRP dealership
515176385
Unavailable
7
COVER - Call your local BRP dealership
515175911
Unavailable
8
HEADLAMP DECAL - Call your local BRP dealership
516001328
Unavailable
9
Push Nut
732610072
Unavailable
10
HEADLAMP BUSHING - Call your local BRP dealership
515175760
Unavailable
11
ADJUSTER ROD - Call your local BRP dealership
515175521
Unavailable
12
Grommet - Call your local BRP dealership
415100800
Unavailable
13
HANDLE - Call your local BRP dealership
515175975
Unavailable
14
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
17
OPEN BARREL - Call your local BRP dealership
515175172
Unavailable
18
Vinyl Tubing, Low Temp 3000Mm Long
219704424
Unavailable
19
Visor Plug
415096100
Unavailable
21
Outlet Power Kit, 12 Volts
861507200
Unavailable
23
DESS
515178284
Unavailable
24
DESS Switch
515177249
Unavailable
26
Male Terminal Housing, 3 Circuits
515174494
Unavailable
28
Voltage Regulator | Includes 32 to 38
515176243
Unavailable
29
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
278001477
Unavailable
32
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
278001478
Unavailable
34
Sealing Cap
293000052
Unavailable
35
Housing Support
515175916
Unavailable
39
OIL LEVEL SENSOR - Call your local BRP dealership
515176327
Unavailable
40
TRIM - Call your local BRP dealership
509000263
Unavailable
41
Temperature Gauge
515175601
Unavailable
42
RING GAUGE - Call your local BRP dealership
515175711
Unavailable
43
FUEL GAUGE - Call your local BRP dealership
515175529
Unavailable
44
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
46
O-RING - Call your local BRP dealership
414807200
Unavailable
47
WASHER - Call your local BRP dealership
517258600
Unavailable
48
Case Holder | SE Models
414806600
Unavailable
49
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
50
Lock Washer | SE Models
414833700
Unavailable
51
NUT - Call your local BRP dealership | SE Models
414833600
Unavailable
52
Tie-Rap 173 mm
293750009
Unavailable
54
Sealing Cap
293000052
Unavailable
55
Temperature Sensor
515176132
Unavailable
57
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
58
Heater Element
515176087
Unavailable
62
HORN - Call your local BRP dealership
515176035
Unavailable
64
Silicone Sealant 51388, 300 ml
296000309
Unavailable
66
Lock Washer Serrated M6
250200041
Unavailable
67
EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership
394001900
Unavailable
68
Lock Washer Serrated M6
250200041
Unavailable
69
Extension
515175851
Unavailable
