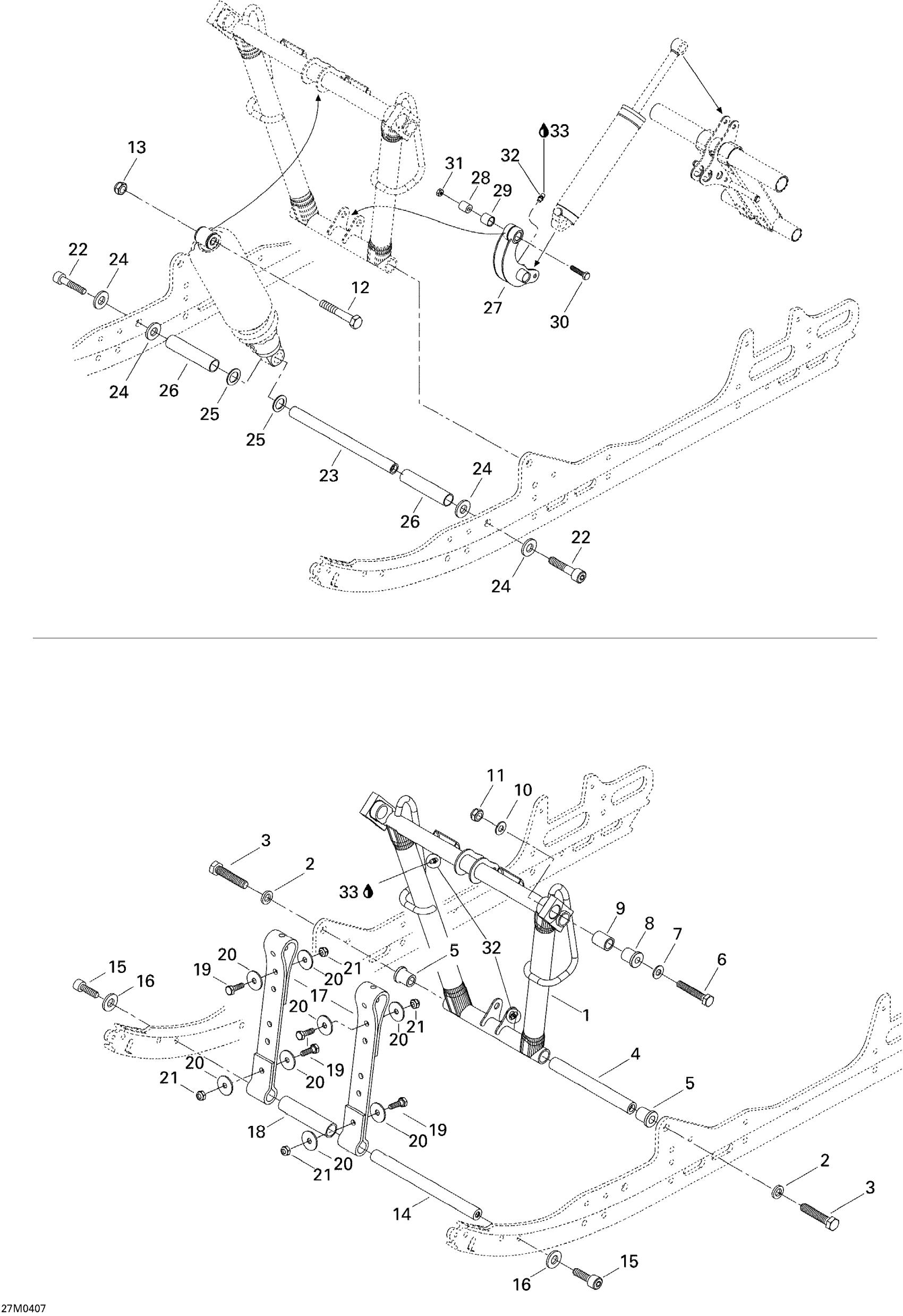

Ski-Doo GSX 600 HO SDI, 2004 Front Arm Diagram

#

Description
Price

1

Front Arm

503190674

Unavailable

2

Washer

503189276

Unavailable

3

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

4

SHAFT - Call your local BRP dealership

503189313

Unavailable

5

CUSHION - Call your local BRP dealership

503189323

Unavailable

6

Hex. Screw M10 X 55

207005544

$1.85

7

Washer

732900049

Unavailable

8

EXTENSION - Call your local BRP dealership

503190373

Unavailable

9

EXTENDED BUSHING - Call your local BRP dealership

503190474

Unavailable

10

Flat Washer M10 | 4X4

250200014

$1.17

11

Elastic Locking Nut M10 X 1.5

233601416

$1.68

12

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

13

Elastic Locking Nut M10 X 1.5

233601416

$1.68

14

AXLE - Call your local BRP dealership

503189562

Unavailable

15

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

16

Washer

503189564

Unavailable

17

Stopper Strap, Large

503190563

Unavailable

18

Spacer

503189265

$4.66

19

Hex. Screw M8 X 25

207182544

Unavailable

20

Flat Washer

224081301

$0.86

21

Hex. Elastic Stop Nut M8

232581414

Unavailable

22

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

23

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

24

Washer

503189276

Unavailable

25

Washer

503189273

Unavailable

26

SPACER - Call your local BRP dealership

503189274

Unavailable

27

Rocker

503189845

Unavailable

28

Rocker Axle

503189388

Unavailable

29

CUSHION - Call your local BRP dealership

503189626

Unavailable

30

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

31

Elastic Locking Nut M10 X 1.5

233601416

$1.68

32

Grease Fitting

408200700

Unavailable

33

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
