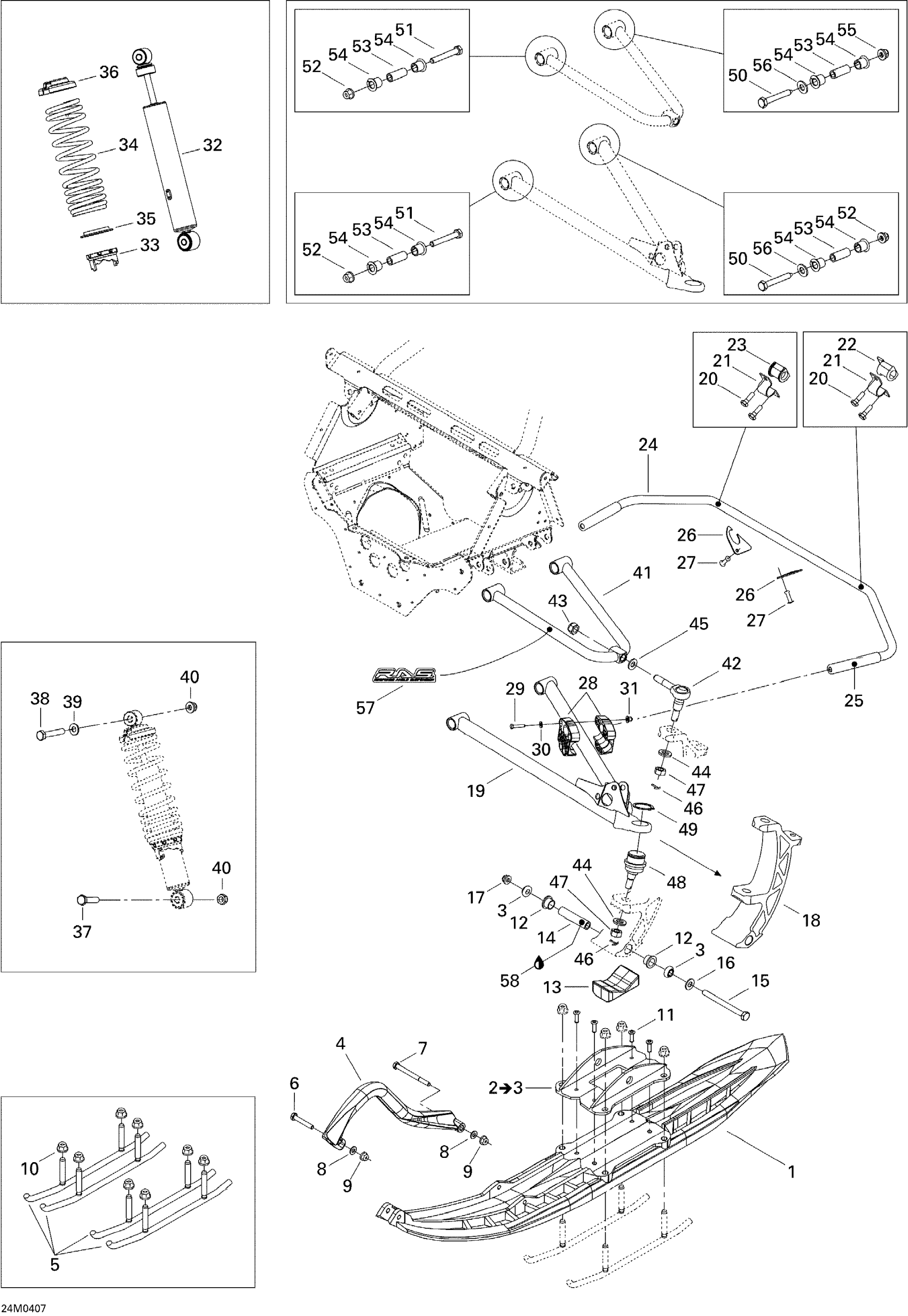

Ski-Doo GSX 600 HO SDI, 2004 Front Suspension Diagram

#

Description
Price

1

Deep Black, Precision Ski | Sport

505070727

Unavailable

Labrador Blue, Precision Ski | GSX Ltd (Silver/Blue)

505071031

Unavailable

2

Bridge Ass'y | Includes 2 to 3

505070764

Unavailable

3

BUSHING - Call your local BRP dealership

505070001

Unavailable

4

Black, Handle

505070963

Unavailable

Labrador Blue, Ski Handle Kit

860507600

Unavailable

5

Lisses *Carbides | Includes 5 to 6 This part replaces 860504900.

860200148

Unavailable

6

Hex. Screw M8 X 50

207085044

Unavailable

7

Hex. Screw M8 X 90

207089044

$2.82

8

Flat Washer 8 mm

234081410

Unavailable

9

Hex. Flange Elastic Nut M8

233281414

Unavailable

10

Hex. Flange Elastic Nut M10

233201414

$1.26

11

RIVET_POP 1/4 - Call your local BRP dealership

293150090

Unavailable

12

Leg Bushing

505072690

Unavailable

13

Ski Stopper

505070671

Unavailable

14

Spacer

506133300

Unavailable

15

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

16

Washer

732900049

Unavailable

17

Flange Nut M10

732610084

Unavailable

18

SKI LEG - Call your local BRP dealership

505071232

Unavailable

19

RH Lower Arm

505071290

Unavailable

LH Lower Arm

505071293

Unavailable

20

Hex. Screw With Nylon

250000118

Unavailable

21

CLAMP - Call your local BRP dealership

506095800

Unavailable

22

LH BUSHING - Call your local BRP dealership

505070664

Unavailable

23

RH BUSHING - Call your local BRP dealership

505070912

Unavailable

24

STABILISATOR - Call your local BRP dealership

505070948

Unavailable

25

STABILISATOR BOOT - Call your local BRP dealership

505071039

Unavailable

26

PLUG - Call your local BRP dealership

505071253

Unavailable

27

Pop Rivet 3/16"

293150103

Unavailable

28

RH SLIDER HALF - Call your local BRP dealership

505071268

Unavailable

LH SLIDER HALF - Call your local BRP dealership

505071269

Unavailable

29

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

30

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

31

Hex. Flange Elastic Nut M5

233251414

Unavailable

32

Front Shock | Sport

505071202

Unavailable

33

Adjustment Cam

505073625

Unavailable

34

Spring

505071264

Unavailable

35

Spring Guide

503187500

Unavailable

36

Spring Stopper

706200881

$10.30

37

Hex. Screw M10 X 55

207005544

$1.85

38

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

39

Washer

732900049

Unavailable

40

Hex. Flange Elastic Nut M10

233201414

$1.26

41

Upper Arm

505071276

Unavailable

42

Upper Ball Joint

505072257

$16.89

43

Hex. Flange Elastic Nut M12

250000047

Unavailable

44

Flat Washer 12 mm

234021410

$0.68

45

Washer

503189276

Unavailable

46

Cotter Pin

211400017

Unavailable

47

Hex. Castellated Nut M12

232221414

Unavailable

48

Ball Joint

505073636

$49.97

49

Circlip

293370035

$2.55

50

Cone Screw M10 X 75

250000114

Unavailable

51

Hex. Screw M10 X 70

207007044

Unavailable

52

Hex. Flange Elastic Nut M10

233201414

$1.26

53

Bushing

505070567

Unavailable

54

Arm Bushing

505070566

Unavailable

55

Elastic Locking Nut M10 X 1.5

233601416

$1.68

56

Washer

503189564

Unavailable

57

R.A.S. Suspension Decal

516001704

Unavailable

58

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
