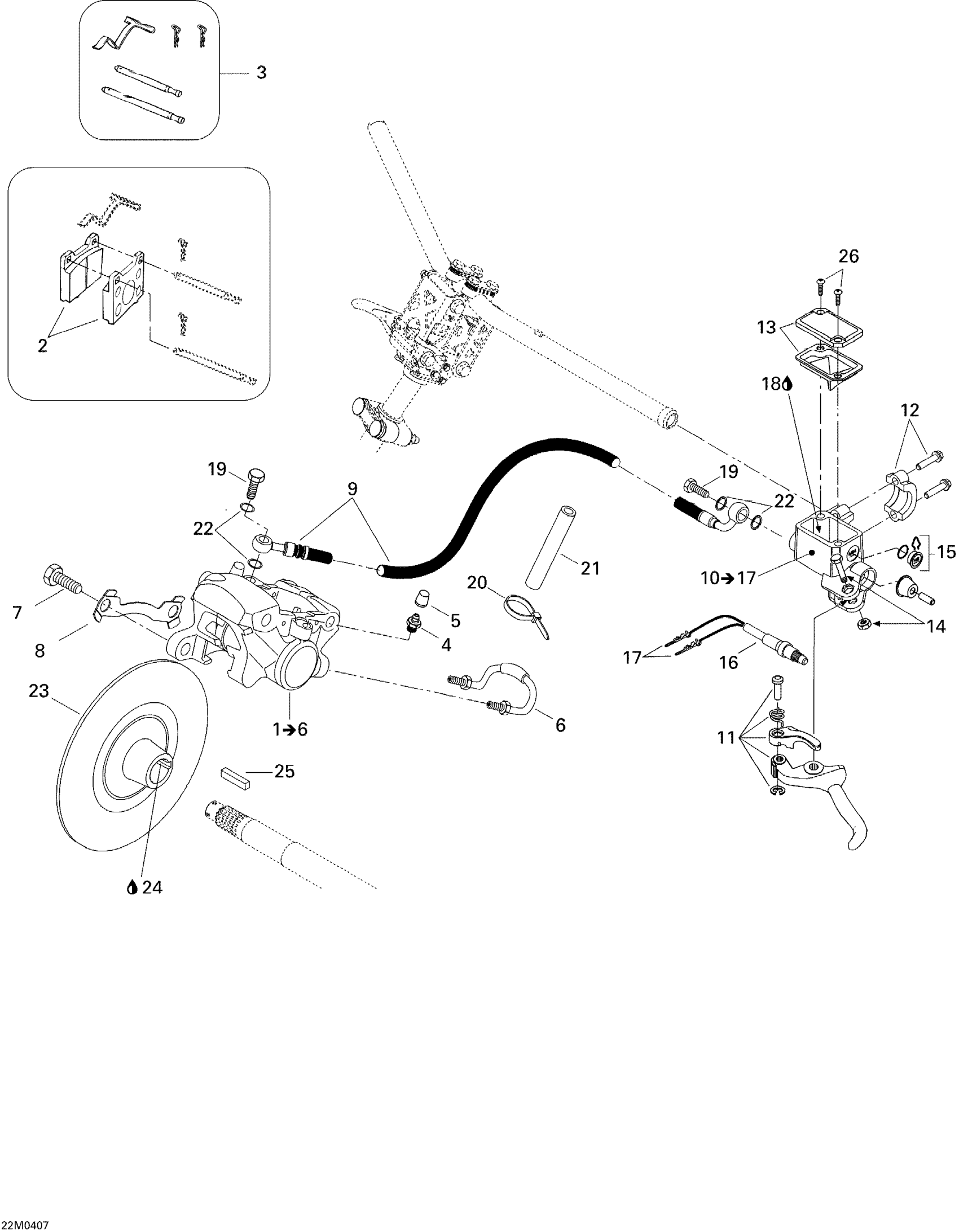

Ski-Doo GSX 600 HO SDI, 2004 Hydraulic Brake Diagram

#

Description
Price

1

Caliper | INCLUDES ITEMS 1 TO 6 / GSX 500 SS / GSX 600 HO

507032391

Unavailable

2

Brake Pad Kit

415129172

$49.22

3

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

4

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

5

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

6

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

7

Hex. Screw M10 X 35

207103544

$1.63

8

LOCKING TAB - Call your local BRP dealership

507032316

Unavailable

9

HOSE - Call your local BRP dealership

507032384

Unavailable

10

Master Cylinder | Includes 10 to 16

507032362

Unavailable

11

BRAKE SHORT LEVER ASSY - Call your local BRP dealership

507032268

Unavailable

12

Clamp And Screw Kit

507032477

$22.36

13

Cap

415029900

$38.78

14

Pin Ass'y

415030000

$17.13

15

WINDOW - Call your local BRP dealership

414990600

Unavailable

16

Microswitch

507032366

$101.46

17

Male Terminal

515175232

$1.45

18

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

18

HYDRAULIC OIL - Call your local BRP dealership

293600131

Unavailable

19

Banjo Bolt

414920500

$8.24

20

Tie Wrap 142 mm

293750002

$1.01

20

Tie Wrap 142 mm

293750002

$1.01

21

Tubing 10 MM 1000MM Long

219704407

$2.52

22

Washer

414920600

$1.75

23

BRAKE DISK - Call your local BRP dealership

507031300

Unavailable

24

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

25

KEY - Call your local BRP dealership

507021300

Unavailable

26

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable
