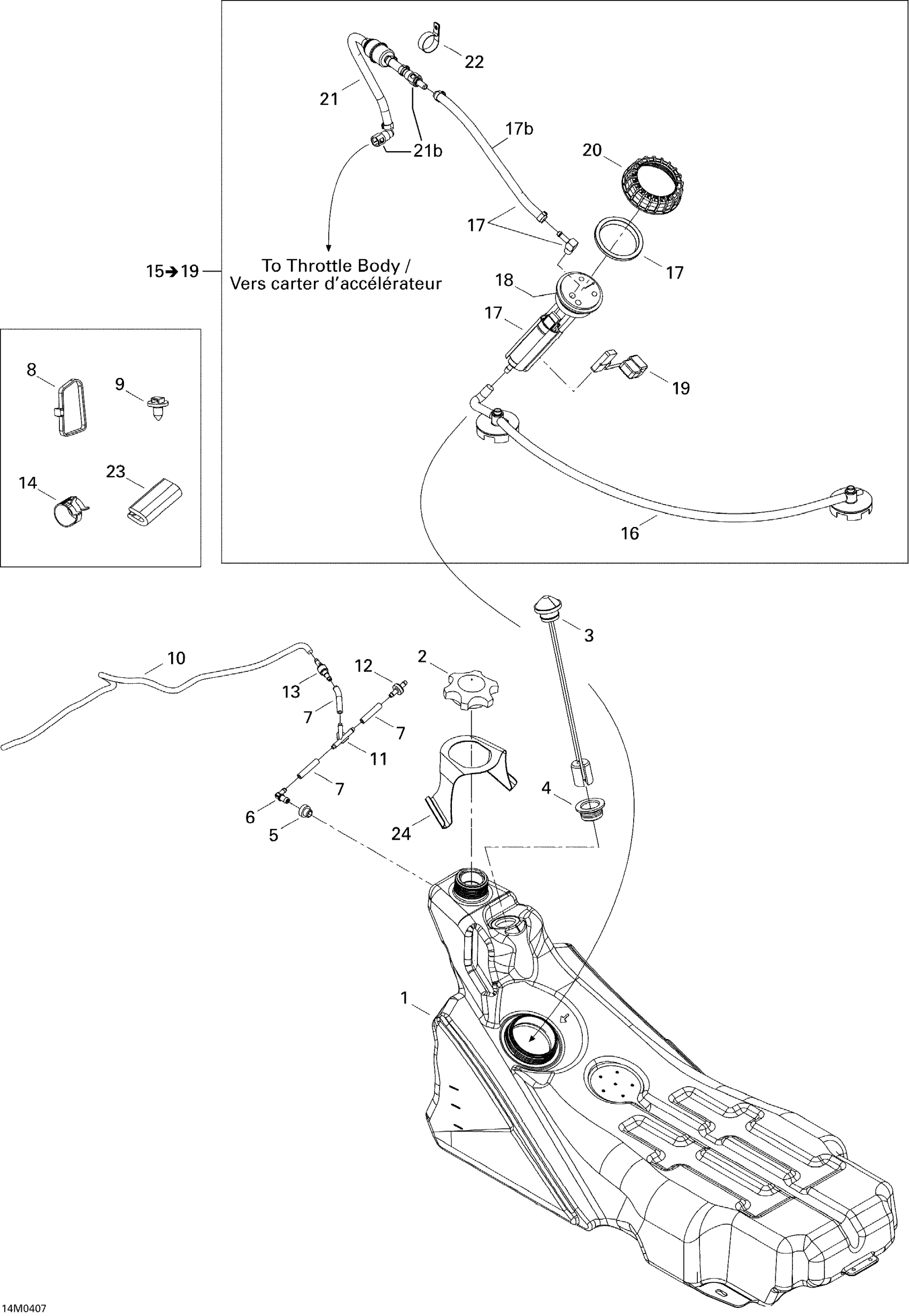

Ski-Doo GSX 600 HO SDI, 2004 Fuel System Diagram

#

Description
Price

1

Fuel Tank | GSX LTD / GSX LTD 1+1

513033071

Unavailable

Fuel Tank

513033100

Unavailable

2

Fuel Tank Cap

513033025

$19.47

3

FUEL GAUGE - Call your local BRP dealership

513033358

Unavailable

4

Grommet

293720058

$11.00

5

Grommet

513032908

$8.74

6

Male Connector

414580700

Unavailable

7

Polyurethane Hose 10000Mm Long

219704410

Unavailable

8

Tie-Rap 180 mm

414115200

$0.09

9

Mount Dart

293730040

$0.86

10

Polyurethane Hose 10000Mm Long

219704410

Unavailable

11

Y-Fitting

293710059

Unavailable

12

Check Valve

275500398

Unavailable

13

Check Valve

275500505

Unavailable

14

Spring Clamp

414554800

$0.83

15

FUEL PUMP MODULE - Call your local BRP dealership | Includes items 15 to 19

513033086

Unavailable

Fuel Pump Module | Includes 15 to 19 / GSX LTD / GSX LTD 1+1

513033102

Unavailable

16

Fuel Hose Kit

861302400

Unavailable

17

PUMP HOSE KIT - Call your local BRP dealership

861302600

Unavailable

17b

Hose

513033136

Unavailable

18

REGULATOR KIT - Call your local BRP dealership

861302100

Unavailable

19

Float Level Sensor Kit

861302500

Unavailable

20

Nut, Fuel Pump Module

513033040

$27.66

21

Fuel Filter Ass'y | Includes 44 to 47

513033133

$87.66

21b

Locking Clip

513033135

$5.11

22

Open Clamp

513033047

$4.88

23

Was 271000110 Protection Trim

219704353

Unavailable

24

SUPPORT - Call your local BRP dealership

513033066

$11.98
