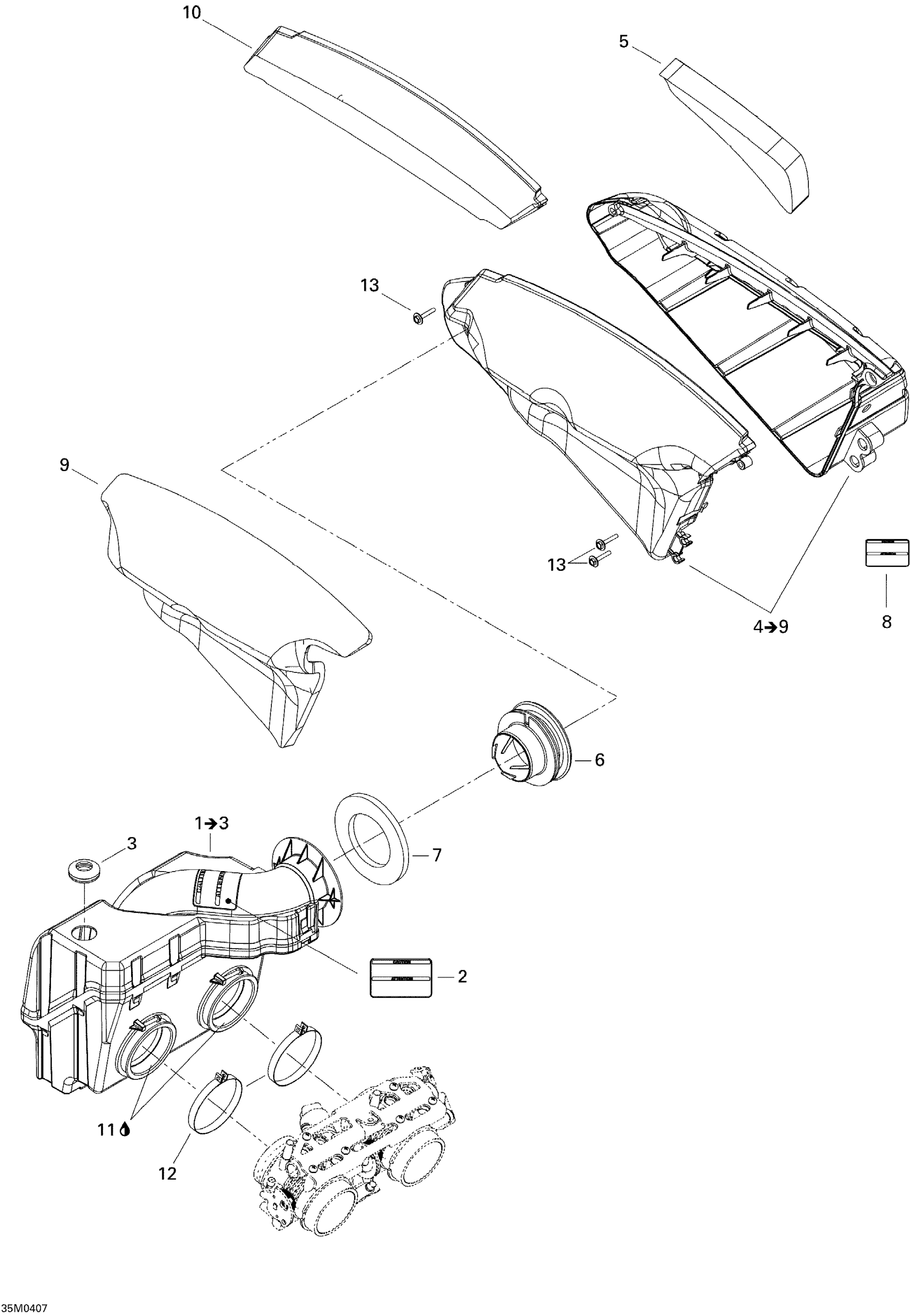

Ski-Doo GSX 600 HO SDI, 2004 Air Intake System Diagram

#

Description
Price

1

Primary Chamber Assy | Includes items 1 to 4

508000370

Unavailable

2

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

3

GROMMET - Call your local BRP dealership

570065500

Unavailable

4

Secondary Chamber Assy | Includes 5 to 10

508000392

Unavailable

5

Inner Foam

508000145

Unavailable

6

GUIDE - Call your local BRP dealership

508000240

Unavailable

7

OUTER FOAM - Call your local BRP dealership

508000199

Unavailable

8

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

9

OUTER FOAM - Call your local BRP dealership

508000310

Unavailable

10

Air Filter

508000394

Unavailable

11

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

12

Gemi Clamp

508000346

$9.31

13

Plastite Screw Type K-40, M4 X 25

250000101

Unavailable
